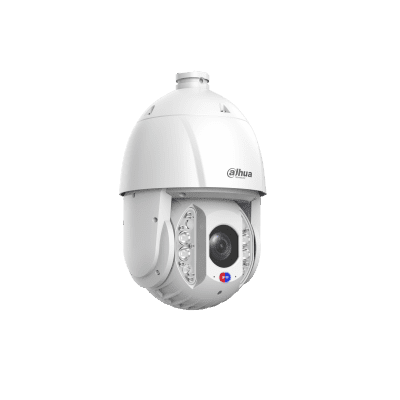

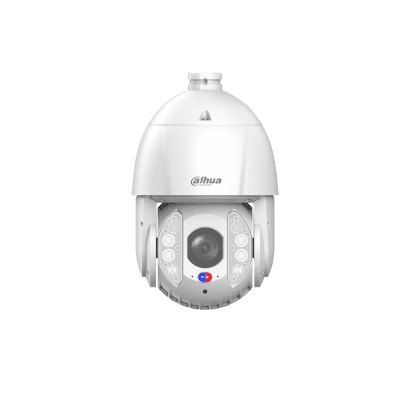

Dahua Smart Dual Illumination Active Deterrence Network PTZ Camera
Product Profile
Launched by Dahua Technology, WizSense is a series of AI products and solutions powered by independent AI chips and deep learning algorithms. Focused on human and vehicle detection with high accuracy, WizSense enables quick response to defined targets. Based on Dahua’s advanced technologies, it delivers intelligent, simple, and inclusive solutions.
Series Highlights
The Three-in-One Camera (TiOC) integrates 24/7 monitoring, active deterrence, and real-time alarms with AI into one smart solution. TiOC PTZ cameras feature Auto-tracking 3.0, enhancing monitoring of key targets. For distributors and installers, it reduces both time and cost.
Key Functions
Smart Dual Light
Uses smart algorithms to detect targets. At night, the IR illuminator remains on until a target appears, triggering white light for full-color recording of key events. Once the target leaves, white light turns off and IR resumes, reducing light pollution.
Face Detection
Supports six attributes (gender, age, glasses, mask, beard) and eight expressions (anger, sadness, disgust, fear, surprise, calm, happiness, confusion). Includes face cutout options (face, single-inch photo) and three snapshot modes: real-time, priority, and quality priority.
IVS (Intelligent Video System)
Provides smart functions such as tripwire and intrusion detection.
SMD 4.0 (Smart Motion Detection)
Classifies motion detection targets using AI algorithms, filtering out non-targets like small or large animals to reduce false alarms.
Xinghan Large-Scale AI Models-Vision
Expands storage and operational capacity by integrating edge AI algorithms with NPU computing power. Its lightweight transformer architecture with model distillation and quantization optimizes computing efficiency, enabling simultaneous multi-tasking through joint inference between small and large models.
AcuPick
Combines front-end and back-end intelligence to quickly and accurately search large volumes of video data, making target location faster and more precise.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>IP cameras |
| Model code | DH-SD6E445MB-HNR-A-PV1 |
| Series | WizSense Series |
| Chip Inch Size | 1/2.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP resolution |
| Electrical Specifications |
Voltage: 24 V DC / PoE+ Power Consumption: 21 W (24 VDC) |
| Focal Length mm | 3.95 ~ 177.25 mm |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: HTTP;HTTPS;TCP/ IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802. 1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP; PPPoE;RTMP;Bonjour;SMB;NFS |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1s–1/30000s |
| S/ N (Signal/ Noise) Ratio dB | ≥55 dB |
| Compression Type | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream 1) |
| Physical Specifications |
Weight g: 4450 Dimensions mm: 208 x 202 x 325 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: ≤ 95 |
| Additional info |
|
