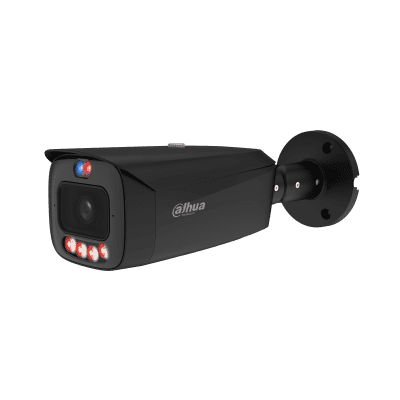

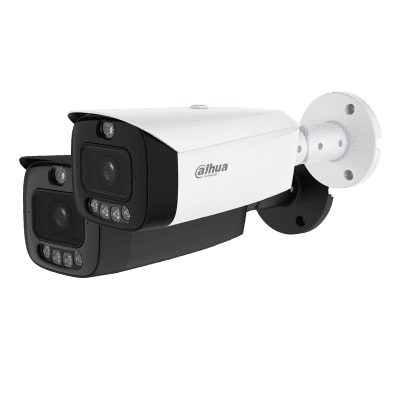

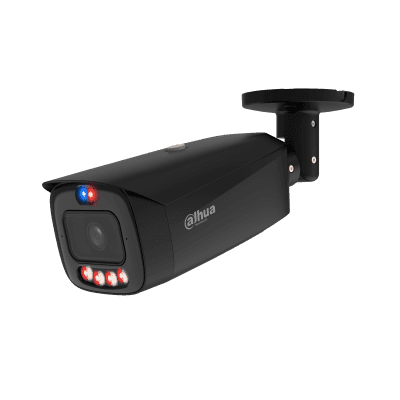

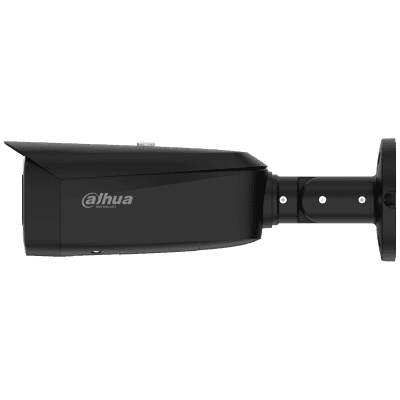

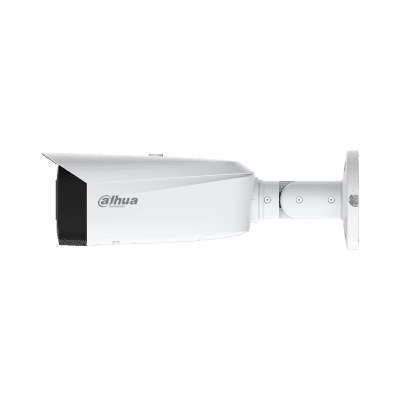

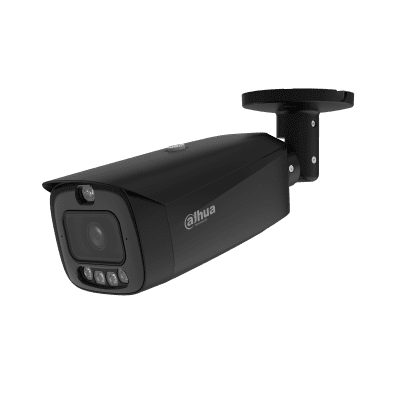

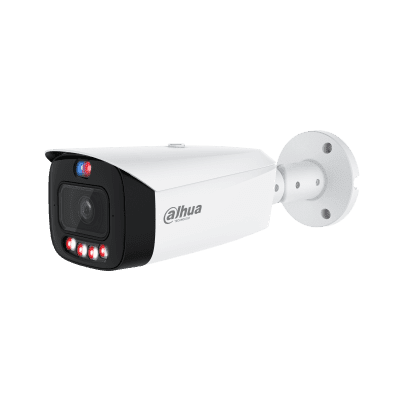

Dahua Technology DH-IPC-HFW3849T1-AS-PV-PRO IP camera Specifications

Dahua 8MP AI WizSense TiOC Bullet Camera

Product Profile

Developed by Dahua Technology, WizSense is a line of AI-powered products and solutions featuring an independent AI chip and deep learning algorithms. It focuses on accurate detection of humans and vehicles, enabling swift responses to defined targets. With advanced technology, WizSense offers intelligent, easy-to-use, and inclusive solutions.

Series Overview
The Dahua WizSense 3 Series Network Camera uses AI Coding to reduce bandwidth and storage needs. Powered by deep learning, it supports smart functions like perimeter protection, Smart Motion Detection (SMD), Acupick, and AI Scene Self-Adaptation (AI SSA). Starlight technology and a large aperture lens ensure clear, vivid images in low light.

Key Functions

WizColor Technology
Combines AI-ISP, a large pixel sensor, and wide aperture to capture high-quality, full-color images at night. It utilizes ambient light (e.g., moonlight, city lights) instead of self-illumination, maintaining full-color visibility over long distances without sacrificing detail or range.

Siren and Light Active Deterrence
Supports light and voice alarms for perimeter breaches. Comes with built-in voice options and allows custom voice imports for effective deterrence and intervention.

Smart Motion Detection (SMD) 4.0
Uses intelligent algorithms to distinguish between human/vehicle motion and non-targets (e.g., animals), reducing false alarms. When paired with an AI NVR, Quick Pick enables fast identification of human or vehicle targets from event videos.

AI ISP
Enhances image quality by automatically adapting to different scenes, ensuring fine details are captured.

Cyber Security
Features include security authentication, access control, trusted protection, encrypted transmission, and storage—fortifying the system against cyber threats and malicious attacks.

Protection (IP67, Wide Voltage)

IP67: Dustproof and waterproof; functions after being submerged in 1m of water for 30 minutes.
Wide Voltage: Tolerates ±30% input voltage variations, making it ideal for unstable outdoor power conditions.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP cameras
Model code	DH-IPC-HFW3849T1-AS-PV-PRO
Series	WizSense 3 Series
Chip Inch Size	1/1.8 inch
Colour Type	Colour / Monochrome
Resolution	8 MP resolution
Sensitivity Lux	0.0008 Lux@F1.0 (Color, 30IRE) ; 0.0004 Lux@F1.0 (B/W, 30IRE) ; 0 lux (Illuminator on)
Electrical Specifications	Voltage: 12 V DC, PoE+ Power Consumption: Max. 11.8 W (12 VDC); 15.1 W (PoE)
Motion Activated	Yes
Focal Length mm	2.8 mm;3.6 mm
Mount Type	Pole
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56 dB
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Physical Specifications	Dimensions mm: 288.4 x 94.4 x 84.7 Weight g: 1000
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤ 95
Additional info	Outputs max. 8 MP (3840 ×2160)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Download PDF version Download PDF version

Make

Dahua Technology

Manufacturer

Dahua Technology Ltd

Category

CCTV>IP cameras

Model code

DH-IPC-HFW3849T1-AS-PV-PRO

Series

WizSense 3 Series

Chip Inch Size

1/1.8 inch

Colour Type

Colour / Monochrome

Resolution

8 MP resolution

Sensitivity Lux

0.0008 Lux@F1.0 (Color, 30IRE) ; 0.0004 Lux@F1.0 (B/W, 30IRE) ; 0 lux (Illuminator on)

Electrical Specifications

Voltage: 12 V DC, PoE+
Power Consumption: Max. 11.8 W (12 VDC); 15.1 W (PoE)

Motion Activated

Yes

Focal Length mm

2.8 mm;3.6 mm

Mount Type

Pole

Wide Dynamic Range

Yes

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

Auto/Manual 1/3 s–1/100,000 s

S/ N (Signal/ Noise) Ratio dB

>56 dB

Compression Type

H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

Network Properties

Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Physical Specifications

Dimensions mm: 288.4 x 94.4 x 84.7
Weight g: 1000

Environmental Specifications

Protection: IP67
Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: ≤ 95

Additional info

Outputs max. 8 MP (3840 ×2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
