Dahua Technology DH-IPC-HFW5459Z-ZHE-PV-PRO IP camera Specifications

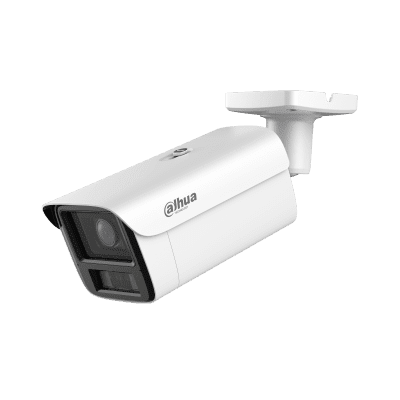

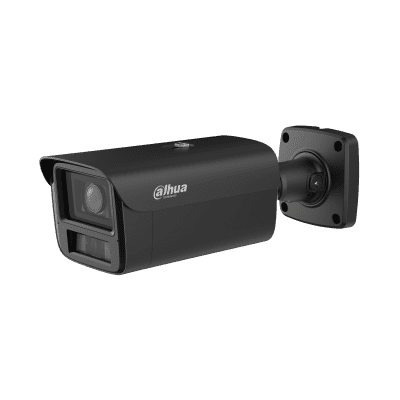

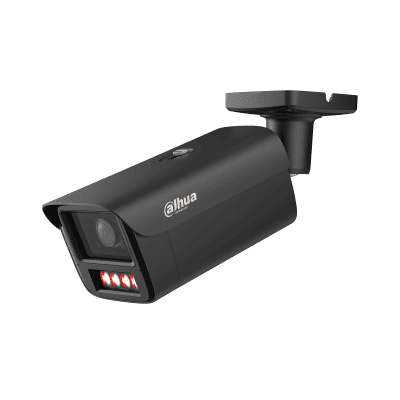

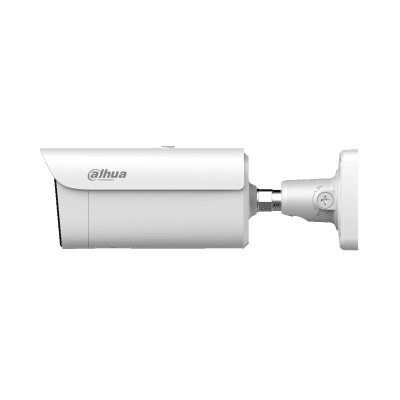

Dahua 4MP WizColor Vari-focal Bullet WizMind Network Camera

Product Profile

Launched by Dahua Technology, WizMind is a portfolio of project-oriented solutions including IPC, IVSS, NVR, PTZ, XVR, Thermal, and software platforms, powered by deep learning algorithms. Designed for customer-focused applications, WizMind delivers precise and reliable AI solutions across various verticals.

Series Highlights

The WizMind 5 Series camera integrates advanced audio and video analytics with features such as video metadata, AcuPick, face detection, perimeter protection, and people counting. Powered by the Xinghan Large-Scale AI Models-Vision, it excels in object detection, recognition, and scene adaptation. Its AI-ISP imaging technology ensures strong night vision performance. The series also offers durability with IP67 dust- and waterproofing and IK10 vandal resistance, though support may vary by model.

Key Functions

Xinghan Large-Scale AI Models-Vision
Expands storage and operational capacity by combining edge AI algorithms with NPU computing power. Its lightweight transformer architecture, enhanced by model distillation and quantization, optimizes computing efficiency. The system supports simultaneous multi-tasking through joint inference between small and large models.

Self-Learning
Utilizes deep learning to recognize target types and statuses, enhancing detection accuracy and reducing false alarms.

WizColor Technology
Combines AI-ISP, large-pixel sensors, and wide-aperture cameras to capture vibrant, detailed, full-color images in low-light conditions. Unlike traditional self-illuminating cameras, it maximizes weak light sources (e.g., moonlight, city lights), enabling full-color imaging even over long distances.

AcuPick
Uses front-end and back-end intelligence to search massive video data efficiently, providing precise and convenient target location.

Protection Features

IP67: Dustproof and water-resistant (withstands 1 m water depth for 30 minutes).
IK10: Resists impacts equivalent to five strikes from a 5 kg hammer dropped from 40 cm (20J).
Wide Voltage: ±30% input voltage tolerance (for select power supplies), suitable for unstable outdoor environments.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP cameras
Model code	DH-IPC-HFW5459Z-ZHE-PV-PRO
Series	WizMind Series
Chip Inch Size	1/1.8 inch
Colour Type	Colour / Monochrome
Resolution	4MP resolution
Sensitivity Lux	0.0006 lux@F1.2 (Color, 30 IRE) ; 0.0003 lux@F1.2 (B/W, 30 IRE) ; 0 lux (Illuminator on)
Electrical Specifications	Voltage: 12 V DC / ePoE Power Consumption: Max.: 21.3 W (12 VDC); 24.2 W (PoE)
Focal Length mm	2.7 ~ 12
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56 dB
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Physical Specifications	Weight g: 1650 Dimensions mm: 302.6 x 110.8 x 99.1
Environmental Specifications	Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67, IK10 Operating Humidity %: ≤ 95
Additional info	Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m. ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models. With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
Download PDF version Download PDF version

Make

Dahua Technology

Manufacturer

Dahua Technology Ltd

Category

CCTV>IP cameras

Model code

DH-IPC-HFW5459Z-ZHE-PV-PRO

Series

WizMind Series

Chip Inch Size

1/1.8 inch

Colour Type

Colour / Monochrome

Resolution

4MP resolution

Sensitivity Lux

0.0006 lux@F1.2 (Color, 30 IRE) ; 0.0003 lux@F1.2 (B/W, 30 IRE) ; 0 lux (Illuminator on)

Electrical Specifications

Voltage: 12 V DC / ePoE
Power Consumption: Max.: 21.3 W (12 VDC); 24.2 W (PoE)

Focal Length mm

2.7 ~ 12

Wide Dynamic Range

Yes

Network Properties

Image Frame Rate: 25/30 fps
Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

Auto/Manual 1/3 s–1/100,000 s

S/ N (Signal/ Noise) Ratio dB

>56 dB

Compression Type

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Physical Specifications

Weight g: 1650
Dimensions mm: 302.6 x 110.8 x 99.1

Environmental Specifications

Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F)
Protection: IP67, IK10
Operating Humidity %: ≤ 95

Additional info

Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models.
With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
