Dahua Technology DH-P3D-3F-PV IP camera Specifications

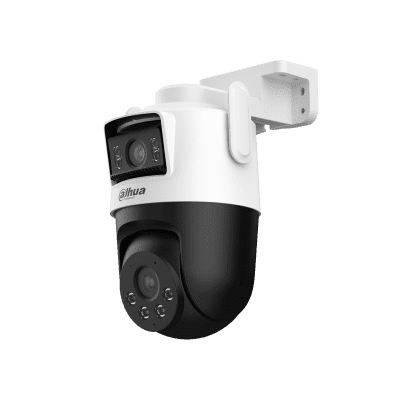

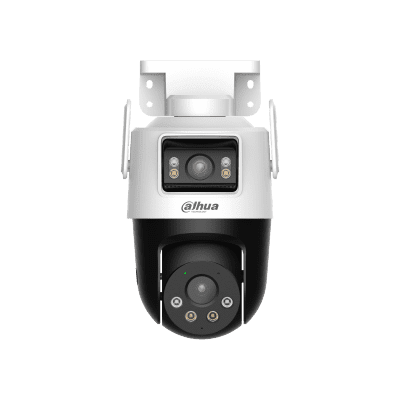

Dahua wireless dual-lens pan & tilt camera

Product Profile

Product Overview

The Picoo Dual Series, part of Dahua's Wireless series, features cameras equipped with both fixed lens and pan-tilt (PT) lens.

Dual-Lens Functionality

This unique combination allows for simultaneous live monitoring of two areas, providing comprehensive coverage from multiple angles.

Smart Detection

Leveraging its dual lenses, the camera performs smart detection using advanced AI functions for human and vehicle recognition, effectively minimising false alarms.

Automatic Target Tracking

With the assistance of the PT lens, the camera can automatically track moving targets, ensuring enhanced monitoring.

Alert System

The camera triggers sound and light alarms upon detecting an intrusion and promptly sends notifications to your mobile client, keeping you updated regardless of your location.

Applications

These cameras are widely used in small-scale settings such as shops and restaurants, offering effective security solutions with advanced features.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP cameras
Model code	DH-P3D-3F-PV
Series	Dahua Picoo Series
Chip Inch Size	1/2.8 inch
Colour Type	Colour / Monochrome
Resolution	6 MP resolution
Electrical Specifications	Voltage: 12 V DC Power Consumption: Basic: 2.3 W ; Max.: 10 W (pulling stream+ IR + siren and light active deterrence)
Motion Activated	Yes
Focal Length mm	2.8 mm
Wide Dynamic Range	Yes
Compression Type	H.265
Network Properties	Interface: RJ-45 (10/100 Base-T)
Physical Specifications	Weight g: 585 Dimensions mm: 159.4 x 119.1 x 210
Environmental Specifications	Protection: IP66 Operating Temperature ^oC: -20 ~ +50 C (-4 ~ +122 F) Operating Humidity %: ≤95
Additional info	Dual 2K - Clear images with sharp details Dual-lens, Double Vision - One camera, double the protection Adjustable Dual-lens Angles - See all around with adjustable lenses Dual Channel Smart Detection - Smart detection for both lenses to focus on what matters AI Human and Vehicle Detection - Focuses on what matters and reduces false alarms Preset Patrol - Guards the places that matter to you regularly Auto Tracking - Automatic tracking of targets Sound and Light Alarm - Provides instant alarms to deter intruders
Download PDF version Download PDF version

Make

Dahua Technology

Manufacturer

Dahua Technology Ltd

Category

CCTV>IP cameras

Model code

DH-P3D-3F-PV

Series

Dahua Picoo Series

Chip Inch Size

1/2.8 inch

Colour Type

Colour / Monochrome

Resolution

6 MP resolution

Electrical Specifications

Voltage: 12 V DC
Power Consumption: Basic: 2.3 W ; Max.: 10 W (pulling stream+ IR + siren and light active deterrence)

Motion Activated

Yes

Focal Length mm

2.8 mm

Wide Dynamic Range

Yes

Compression Type

H.265

Network Properties

Interface: RJ-45 (10/100 Base-T)

Physical Specifications

Weight g: 585
Dimensions mm: 159.4 x 119.1 x 210

Environmental Specifications

Protection: IP66
Operating Temperature ^oC: -20 ~ +50 C (-4 ~ +122 F)
Operating Humidity %: ≤95

Additional info

Dual 2K - Clear images with sharp details
Dual-lens, Double Vision - One camera, double the protection
Adjustable Dual-lens Angles - See all around with adjustable lenses
Dual Channel Smart Detection - Smart detection for both lenses to focus on what matters
AI Human and Vehicle Detection - Focuses on what matters and reduces false alarms
Preset Patrol - Guards the places that matter to you regularly
Auto Tracking - Automatic tracking of targets
Sound and Light Alarm - Provides instant alarms to deter intruders
