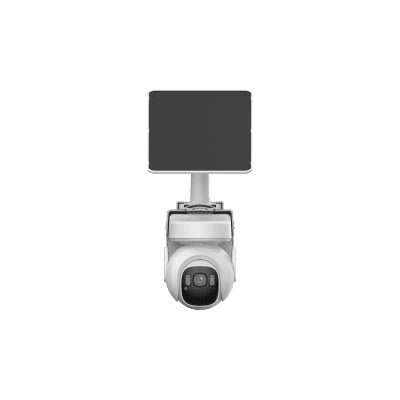

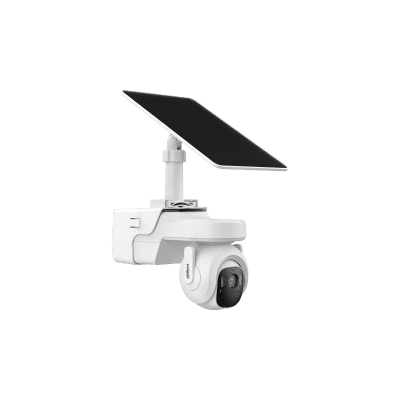

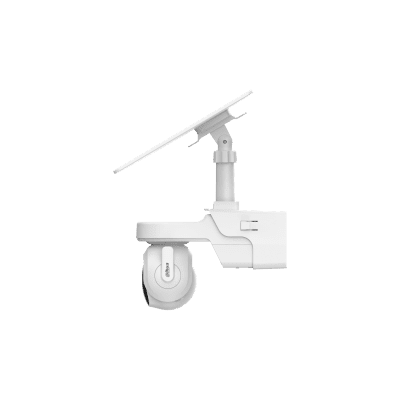

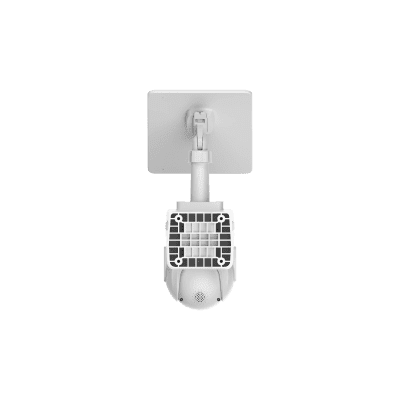

Dahua 4MP 4G Pan & Tilt Network Camera Solar Monitoring System
Product Profile
Series Overview
Powered by industry-leading technology, the Dahua Wireless Series network cameras deliver high-quality imaging with precision and ease of use. Designed for simple installation, these cameras feature strong wireless connectivity and require no network cabling—removing the need for professional construction teams. Cost-effective and reliable, the series supports local storage, is both dustproof and waterproof, and is well-suited for small to medium-sized applications such as retail stores, homes, and offices.
Key Features
- 4MP Resolution: Produces clear images with sharp details.
- AI Detection with Quick Wake-Up: Accurately identifies humans and vehicles while delivering instant alerts.
- Two-Way Talk: Enables real-time communication anytime, anywhere.
- IP66 Protection: Built to withstand harsh outdoor environments.
- All-in-One Design: Fully self-powered and networked, eliminating the need for extra wiring.
- AOV (Always-On Video) Mode: Ensures 24/7 protection with continuous recording and ultra-low power consumption.
- 4G Connectivity: Expands monitoring capabilities with reliable 4G network support.
- Micro SD Card Support: Offers affordable and convenient local storage.
- DMSS App Integration: Provides an easy-to-use platform for monitoring and management.
- Battery and Solar Charging: Ensures long-lasting power supply for uninterrupted protection.
- Sound and Light Alarm: Delivers instant visual and audio alerts to deter intruders.
- Smart Dual Light: Captures vivid color details, even for reviewing events after dark.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>IP cameras |
| Model code | DH-KIT/BP4A-4G/M0508 |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP resolution |
| Electrical Specifications |
Voltage: Built in 68Wh lithium battery Power Consumption: Ultra power saving mode: 0.04 W / Power saving mode: 0.041 W / AOV mode: 0.197 W / Performance mode: 1.2 W |
| Motion Activated | Yes |
| Focal Length mm | 3.6 mm |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 1 ~ 15 fps Interface: RJ-45 (10/100 Base-T) |
| Compression Type | H.265 |
| Physical Specifications |
Dimensions mm: 284 x 172 x 360 Weight g: 1055 g |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -20 ~ +60 C (-4 ~ +140 F) Operating Humidity %: ≤ 95 |
| Additional info |
Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images. They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail stores, homes, and other small and medium-sized enterprises. |
