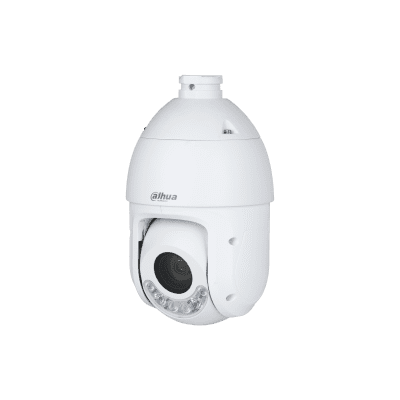

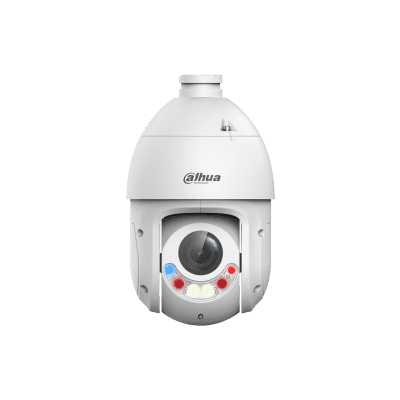

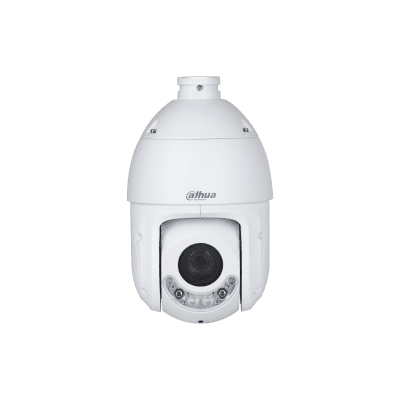

Dahua DH-SD4E425GB-HNR-A-PV1 4MP 25x Starlight IR WizSense Network PTZ Camera
Product Profile
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
System Overview
The Three-in-One Camera (TiOC) solution combines 24/7 monitoring, active deterrence and real-time alarms with artificial intelligence into one smart, innovative solution. TiOC PTZ cameras adopt auto-tracking 3.0 technology, greatly improving the monitoring scope of key targets. For distributors and installers, it not only saves time, but also reduces cost.
Functions
Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and ransmission.
Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.
Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.
Protection (IP66, TVS 6000 V)
IP66, TVS 6000 V lightning proof, surge protection, and voltage transient protection.
Auto Tracking
This feature controls the pan, tilt and zoom actions of the camera to automatically track an object in motion, to keep it in view of the camera. Tracking can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>IP cameras |
| Model code | DH-SD4E425GB-HNR-A-PV1 |
| Series | WizSense Series |
| Chip Inch Size | 1/2.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP resolution |
| Specialist Type | PTZ |
| Sensitivity Lux | Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux@F1.6 (illuminator on) |
| Auto Iris | Yes |
| Electrical Specifications |
Voltage: 12 V DC, PoE+ Power Consumption: Basic: 7.0 W , Max.: 13 W |
| Motion Activated | Yes |
| Focal Length mm | 5 mm ~ 125 mm |
| Mount Type | Wall, Ceiling, Pole, Corner, Parapet |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/1 s–1/30,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥ 55 |
| Zoom | Yes |
| Compression Type | H.264H;H.264B;Smart H.265+;H.265;MJPEG(Sub Stream);Smart H.264+;H.264M |
| Physical Specifications |
Weight g: 2600 Dimensions mm: 269.9 x Φ160 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Protection: IP66 Operating Humidity %: ≤95 |
| System Requirements | Web Browser: IE 9 and later versions, Chrome 41 and later versions, Firefox 50 and later versions, Safari 10 and later versions |
| Additional info |
|
| Download PDF version Download PDF version | |
