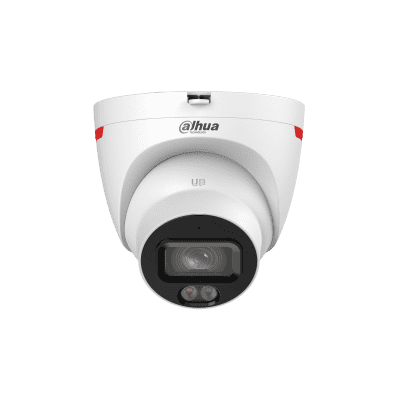

Dahua Technology DH-IPC-HDW2849T-S-PRO IP camera Specifications

Dahua AI-powered WizSense Eyeball Network Camera

Product Profile

Dahua Technology’s WizSense is a series of AI-powered products and solutions that utilize independent AI chips and deep learning algorithms. Focused on accurate human and vehicle detection, WizSense enables quick, targeted responses and offers intelligent, easy-to-use, and accessible security solutions.

Series Overview

The WizSense 2 Series network camera integrates deep learning for smart functions like perimeter protection and smart motion detection, while Starlight technology enhances low-light image quality.

Key Features

WizColor Technology: Combines AI-ISP, large pixel sensors, and wide apertures to deliver vivid, full-color nighttime images. It leverages weak ambient light (e.g., moonlight, city glow) for clear long-distance color capture without reliance on strong artificial illumination.

AI-ISP: Adapts imaging to different environments, producing high-quality visuals with fine detail.

SMD Plus: Uses AI to identify and filter human/vehicle motion accurately, reducing false alarms from irrelevant movements.

Perimeter Protection: Recognizes humans and vehicles in restricted zones with high precision, minimizing false alerts in events like tripwire, intrusion, loitering, and more.

Smart H.265+/H.264+: Advanced compression optimizes storage and transmission without compromising video quality.

Durability (IP67 & Wide Voltage): Rated IP67 for dust and water resistance and supports wide voltage input, making it reliable in harsh outdoor conditions.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP cameras
Model code	DH-IPC-HDW2849T-S-PRO
Series	WizSense 2 Series
Chip Inch Size	1/1.8 inch
Colour Type	Colour / Monochrome
Resolution	8 MP resolution
Specialist Type	Network
Sensitivity Lux	0.0008 lux@F1.0
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: Max.: 5.6 W (12 VDC); 6.4 W (PoE)
Motion Activated	Yes
Focal Length mm	2.8 mm; 3.6 mm
Mount Type	Wall, Ceiling, Pole, Corner
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56 dB
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Physical Specifications	Weight g: 420 Dimensions mm: 109.5 x Φ109.9
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤ 95
Additional info	H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light, and the max. illumination distance is 30 m. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Download PDF version Download PDF version

Make

Dahua Technology

Manufacturer

Dahua Technology Ltd

Category

CCTV>IP cameras

Model code

DH-IPC-HDW2849T-S-PRO

Series

WizSense 2 Series

Chip Inch Size

1/1.8 inch

Colour Type

Colour / Monochrome

Resolution

8 MP resolution

Specialist Type

Network

Sensitivity Lux

0.0008 lux@F1.0

Electrical Specifications

Voltage: 12 V DC, PoE
Power Consumption: Max.: 5.6 W (12 VDC); 6.4 W (PoE)

Motion Activated

Yes

Focal Length mm

2.8 mm; 3.6 mm

Mount Type

Wall, Ceiling, Pole, Corner

Wide Dynamic Range

Yes

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

1/3 s–1/100,000 s

S/ N (Signal/ Noise) Ratio dB

>56 dB

Compression Type

H.265; H.264; H.264H; H.264B; MJPEG

Network Properties

Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Physical Specifications

Weight g: 420
Dimensions mm: 109.5 x Φ109.9

Environmental Specifications

Protection: IP67
Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: ≤ 95

Additional info

H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light, and the max. illumination distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
