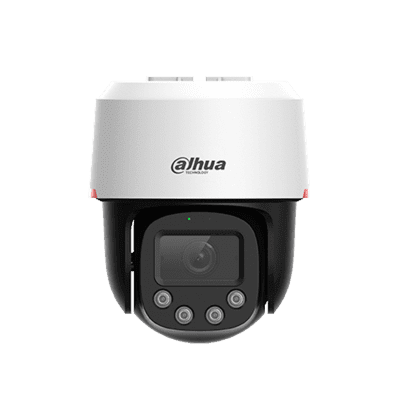

Dahua 4MP AI-Powered WizSense PT Network Camera
Product Profile
Launched by Dahua Technology, WizSense is a range of AI-driven products featuring an independent AI chip and deep learning algorithm. Focused on human and vehicle recognition, it enables users to respond quickly to defined targets. Built on Dahua's advanced technology, WizSense offers intelligent, simple, and inclusive solutions.
WizColor Series
The WizColor series captures vivid full-color images at night using advanced AI noise reduction and smart recognition. It minimizes motion blur in dynamic scenes and ensures clear visuals even in low-light urban or rural environments, delivering 24/7 high-definition monitoring.
Key Functions
WizColor Technology
Combining AI-ISP, large-pixel sensors, and large apertures, this technology captures vibrant nighttime images using minimal ambient light like moonlight or city glow. It ensures clear long-distance visuals without compromising monitoring range.
AI-ISP
Enhances image adaptability and detail clarity across different scenes.
Smart H.265+ & Smart H.264+
Scene-adaptive encoding technology offers higher efficiency than standard H.265/H.264, reducing storage and transmission costs while maintaining video quality.
IVS (Intelligent Video System)
Supports smart features like tripwire and intrusion detection through advanced video algorithms.
SMD 3.0 (Smart Motion Detection)
Uses deep learning to filter irrelevant motion alarms, accurately detecting human and vehicle intrusions.
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>IP cameras |
| Model code | DH-SD2C400NA-B-PV-PRO |
| Series | WizSense Series |
| Chip Inch Size | 1/1.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4MP resolution |
| Sensitivity Lux | 0.0005 [email protected] (Color, 30 IRE); 0 lux（illuminator on） |
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: PoE: Basic: 3.6 W Max: 9.5 W |
| Motion Activated | Yes |
| Focal Length mm | 4 mm |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP; DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP; IGMP;ARP;RTCP;RTP; PPPoE;RTMP;Bonjour;NFS |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1 s–1/30,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥55 dB |
| Zoom | Yes |
| Compression Type | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M; H.264H;MJPEG |
| Physical Specifications |
Weight g: 660 Dimensions mm: 153.5 x Φ129.3 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -30 ~ +55 C (-22 ~ +131 F) Operating Humidity %: ≤ 95 |
| Additional info |
|
