Bosch equips Changchun Airport with video security, intrusion detection, public address and access control system

As a major transportation hub in Northeastern China, Changchun Longjia International Airport processes a huge amount of passengers every year. In response to massive economic growth in the region, the airport – with a total volume of almost 13 million passengers in 2018 – needed an additional terminal. Built over the course of three years, the state-of-the-art Terminal 2 building covers a total area of 55,600 square meters.

Since its opening in October 2018, the expansive Terminal 2 building has been serving all domestic flights from 22 airlines including Air China, Shenzhen Airlines and Shandong Airlines while international flights are now concentrated in Terminal 1.

Meeting airport security guidelines

Bosch received the contract based on a proven track record of large-scale airport security installationsLooking to safeguard this vital new infrastructure, the airport security managers wanted to integrate video security, intrusion detection, public address and access control for staff within one platform while meeting current government security guidelines for airports. Since 2017, these laws include mandatory storage of all video data for a 90-day period, which puts a premium on adequate data storage in a space covered by over 1,000 cameras around the clock.

Given the project’s massive scale, managers wanted to work with a one-stop provider to ensure seamless integration of all solutions and delivery according to stringent timelines with end-to-end security intact on opening day.

After diligent market research, Bosch received the contract based on a proven track record of large-scale airport security installations and the ability to connect all components – video security, intrusion alarms, access control and public address systems – on the Building Integration System (BIS).

Installation of IP dome cameras

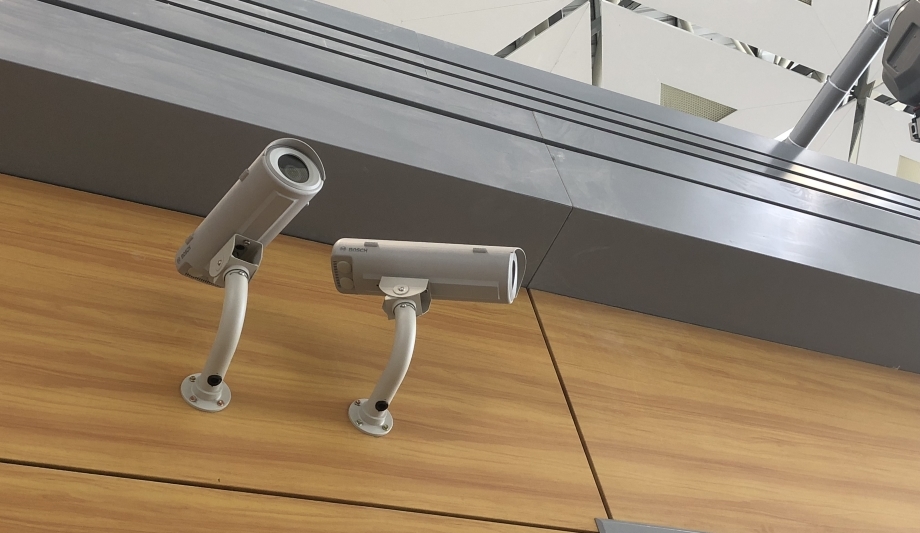

Outdoor cameras are able to withstand temperatures down to -40 °C during Changchun’s harsh wintersFor video security, Bosch experts installed nearly 1,500 cameras inside and outside Terminal 2, including moving cameras such as the AUTODOME IP 4000i and IP 5000i and FLEXIDOME IP 6000 VR series. All IP-based cameras are centrally managed on the Bosch Video Management System (BVMS) and support security personnel by detecting threats and triggering automated alerts via built-in Essential Video Analytics. Outdoor cameras are able to withstand temperatures down to -40 °C during Changchun’s harsh winters.

And to maintain a small data footprint while meeting the legal obligation for 90-day data storage, the cameras use efficient H.265 compression technology, thereby reducing bandwidth to a low 2 Mbps and storage space by up to 50 percent compared to other cameras. As a direct result, security managers in Changchun have been able to achieve savings in the number of networked storage units as well as energy consumption and cooling cost for the server room.

Unified management of access control

“The reduced bandwidth leading to a fewer number of storage cabinets in the server room was a major reason why our client opted for the Bosch solution,” said Mustaine Hu, Technical Support Manager at Bosch Building Technologies.

The Building Integration System supports unified management of access control for airport personnel at 350 doorsMeeting another key customer requirement, the Building Integration System (BIS) from Bosch supports unified management of access control for airport personnel at nearly 350 doors. A combination of card reader and video security eliminates the risk of non-employees accessing critical areas with a stolen card and creates a seamless passage for authorised staff without additional screening.

Bringing security full circle, the installed public address system allows security personnel to broadcast real-time announcements via more than 1,200 ceiling loudspeakers. The system ensures controlled evacuation in emergency situations and also sounds alarms triggered by connected intrusion sensors to alert personnel.

Security for travellers and personnel

Fully operative since the grand opening of Terminal 2, the Bosch system now provides end-to-end security for travellers, personnel and property at Changchun Longjia International Airport. As a scalable and IP-based system, it is future-proof to accommodate further expansions and has delivered cost savings on video storage and power consumption since day one.

In face of China’s rapid economic growth, about 200 of the country’s 497 airports will require similar expansions over the coming years, making Changchun an important reference for Bosch Building Technologies in the region.
