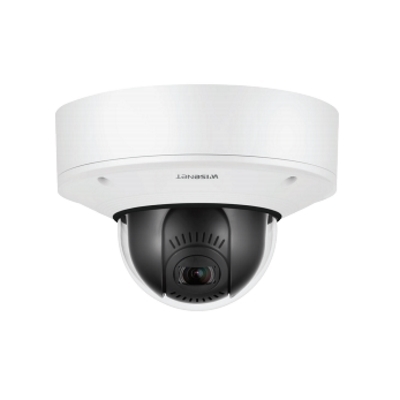

Hanwha Techwin America XNV-8081Z 5MP vandal-resistant outdoor network dome PTRZ camera

Technical Specification

Features:
  • Make: Hanwha Techwin
  • Model code: XNV-8081Z
  • Series: WISENET X SERIES
  • Chip Inch Size: 1/2 inch
  • Colour Type: Colour / Monochrome
Read more
Additional info:

07Lux@F1.4 (Colour), 0.007Lux@F1.4 (B/W) Day & Night (ICR), WDR (150dB / 120dB) Modular structure and motorised PTRZ Hallway View, WiseStreamII Support Video & audio analytics, Audio playback DIS and shock detection with built-in gyro sensor

Read more
Make Hanwha Techwin
Manufacturer Hanwha Techwin Europe
Model code XNV-8081Z
Series WISENET X SERIES
Chip Inch Size 1/2 inch
Colour Type Colour / Monochrome
Resolution 5 MP resolution
Digital (DSP) Yes
Specialist Type Network
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC / 24 V AC / PoE
Power Consumption: 5.47 W, 3.75 W, 5.58 W
Focal Length mm 3.6 ~ 9.4
Wide Dynamic Range Yes
Picture Elements HxV 2616 x 1976
Network Properties Image Frame Rate: 30fps / 25fps
Interface: RJ-45 (10/100BASE-T)
Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 2 ~ 1/12,000s
Zoom Yes
Compression Type H.265/H.264 : Main / Baseline / High, MJPEG
Physical Specifications Weight g: 1750
Dimensions mm: 180 x 125
Environmental Specifications Protection: IP67, IP66, IP6K9K, IK10+
Operating Temperature oC: -50 ~ +60 C (-58 ~ +140 F)
Operating Humidity %: 0 ~ 90
System Requirements Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome, MS Explorer11, MS Edge, Mozilla Firefox, Apple Safari
Additional info
  • 07Lux@F1.4 (Colour), 0.007Lux@F1.4 (B/W)
  • Day & Night (ICR), WDR (150dB / 120dB)
  • Modular structure and motorised PTRZ
  • Hallway View, WiseStreamII Support
  • Video & audio analytics, Audio playback
  • DIS and shock detection with built-in gyro sensor
