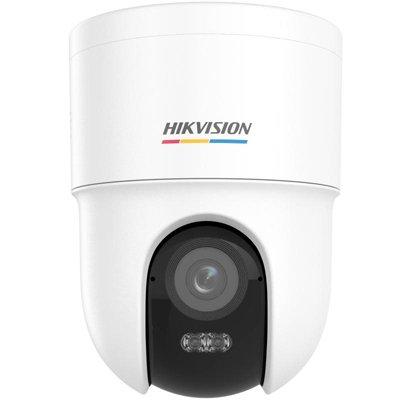

Hikvision 4MP ColorVu 3.0 Fixed PT Network Camera
Product Profile
Hikvision’s 4MP ColorVu 3.0 Fixed PT Network Camera, part of the company’s Value Series Network Cameras, is designed to meet the primary security requirements of SMB users while providing reliable protection and smart functions with a high return on investment.
The camera features Hikvision ColorVu 3.0 and Motion Detection 3.0 technologies to deliver vivid, clear full-colour images and provide accurate person and vehicle classification.
ColorVu 3.0 imaging
The camera uses HikAI-ISP with AI noise reduction to capture dynamic scenes with sharp and vibrant details, including in low-light conditions. 3D LUT colour correction provides accurate colour calibration and precise colour matching.
It also features AI WDR, which enables the camera to automatically determine whether Wide Dynamic Range should be activated based on the brightness of the environment.
Person tracking and motion detection
The camera supports Auto Tracking, enabling automatic person tracking based on Motion Detection 3.0. Hikvision’s Motion Detection 3.0 technology provides more accurate classification of persons and vehicles.
Smart Hybrid Light
Hikvision’s Smart Hybrid Light technology integrates infrared and white lights and offers three supplemental lighting modes. Combined with ColorVu 3.0 technology, the camera provides clear, colourful imaging 24/7.
Additional features include on-board storage of up to 512 GB via an SD card slot on the -F model and an IP66-rated dust- and water-resistant design.
Technical Specification
| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Category | CCTV>IP cameras |
| Model code | DS-2CD1F47G3H-LIUF |
| Series | Hikvision Value Series |
| Chip Inch Size | 1/1.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 4 MP resolution |
| Sensitivity Lux | Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: max. 10 W (12 VDC) / max. 12 W (PoE) |
| Motion Activated | Yes |
| Focal Length mm | 2.8 mm, 4mm |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1 s ~ 1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥ 52 dB |
| Compression Type | H.265+/H.265/H.264+/H.264/MJPEG |
| Network Properties |
Interface: RJ45 10 M/100 M self-adaptive Ethernet port Network Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Physical Specifications |
Dimensions mm: Ø110.8 x 145.4 Weight g: 650 g |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: ≤ 95 |
| System Requirements | Web Browser: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
| Additional info |
|
