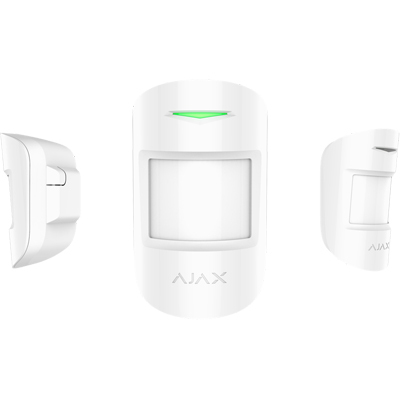

Ajax MotionProtect Plus wireless motion detector with microwave sensor

Technical Specification

Features:

Make: Ajax
Model code: MotionProtect Plus
PIR Detectors: Yes
Coverage/ Range m: 12 m coverage
Angle of Detection ^o: Horizontal — 88.5° , Vertical — 80° ^o detection angle

Additional info:

Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion. Designed for rooms with air conditioners, fireplaces and where there is a likelihood of light flickering, glare and reflections. Principle of operation Detects human presence by temperature difference with background thermal radiation. The microwave sensor prevents false alarms caused by complex interference. Features Designed for operation in rooms with fireplaces and air conditioners. Detects and ignores draughts, movement of curtains and blinds, and light flickering, glare and reflections. Installation and set up Ready to operate straight out the box. The battery is already installed inside, therefore there is no need to disassemble the detector. It can be mounted in just a few minutes using the SmartBracket mount.

Contact manufacturer Contact manufacturer

Make	Ajax
Manufacturer	Ajax Systems
Model code	MotionProtect Plus
PIR Detectors	Yes
Coverage/ Range m	12 m coverage
Angle of Detection ^o	Horizontal — 88.5° , Vertical — 80° ^o detection angle
Microwave	Yes
Pet Tolerance	Yes
Indoor/Outdoor	Indoor
Electrical Specifications	Power Supply: 3V
Physical Specifications	Dimensions mm: 110 x 65 x 50
Environmental Specifications	Operating Temp ^oC: 5 ~ 40 C (41 ~ 104 F)
Additional info	Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion. Designed for rooms with air conditioners, fireplaces and where there is a likelihood of light flickering, glare and reflections. Principle of operation Detects human presence by temperature difference with background thermal radiation. The microwave sensor prevents false alarms caused by complex interference. Features Designed for operation in rooms with fireplaces and air conditioners. Detects and ignores draughts, movement of curtains and blinds, and light flickering, glare and reflections. Installation and set up Ready to operate straight out the box. The battery is already installed inside, therefore there is no need to disassemble the detector. It can be mounted in just a few minutes using the SmartBracket mount.
