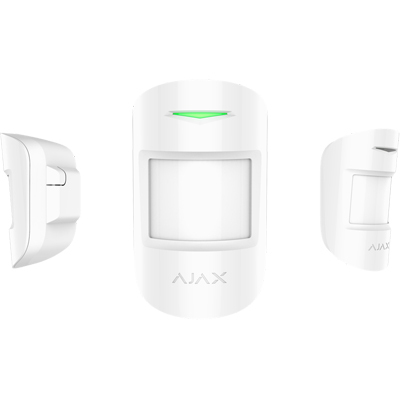

Ajax MotionProtect wireless indoor motion detector

Technical Specification

Features:

Make: Ajax
Model code: MotionProtect
PIR Detectors: Yes
Coverage/ Range m: 12
Angle of Detection ^o: Horizontal - 88.5, Vertical - 80

Additional info:

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. Principle of operation The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms. Features The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Contact manufacturer Contact manufacturer

Make	Ajax
Manufacturer	Ajax Systems
Category	Intruder Alarms>Intruder detectors
Model code	MotionProtect
PIR Detectors	Yes
Coverage/ Range m	12
Angle of Detection ^o	Horizontal - 88.5, Vertical - 80
Pet Tolerance	Yes
Temperature Compensation	Yes
Indoor/Outdoor	Indoor
Wall/Ceiling Mount	Wall
Electrical Specifications	Power Supply: 3V
Physical Specifications	Dimensions mm: 110 х 65 x 50
Environmental Specifications	Operating Temp ^oC: -10 ~ 40 C (14 ~ 104 F)
Additional info	Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. Principle of operation The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms. Features The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
