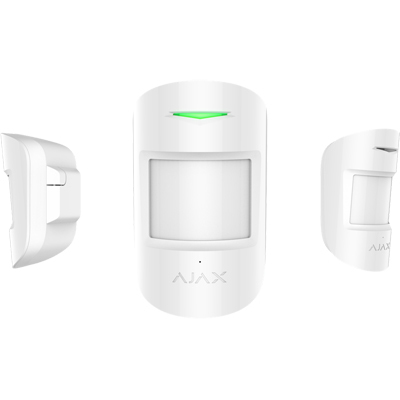

Ajax CombiProtect wireless combined motion and glass break detector

Technical Specification

Features:

Make: Ajax
Model code: CombiProtect
PIR Detectors: Yes
Glassbreak Detectors: Yes
Coverage/ Range m: 12 (motion), 9 (glass break)

Additional info:

Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass. Principle of operation The device combines the functions of two detectors — motion detector and glass break detector. It detects motion in the room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window. Features The device detects motion even in hot climates by means of temperature compensation. It filters false alarms caused by thunder, dogs barking or the sound of passing trucks. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes

Contact manufacturer Contact manufacturer

Make	Ajax
Manufacturer	Ajax Systems
Category	Intruder Alarms>Intruder detectors
Model code	CombiProtect
PIR Detectors	Yes
Glassbreak Detectors	Yes
Coverage/ Range m	12 (motion), 9 (glass break)
Angle of Detection ^o	Motion - 88.5 (horizontal)/ 80 (vertical); Glass break - 180 (horizontal)
Pet Tolerance	Yes
Temperature Compensation	Yes
Indoor/Outdoor	Indoor
Electrical Specifications	Power Supply: 3V
Physical Specifications	Dimensions mm: 110 x 65 x 50
Environmental Specifications	Operating Temp ^oC: -10 ~ +40 C (14 ~ 104 F)
Additional info	Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass. Principle of operation The device combines the functions of two detectors — motion detector and glass break detector. It detects motion in the room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window. Features The device detects motion even in hot climates by means of temperature compensation. It filters false alarms caused by thunder, dogs barking or the sound of passing trucks. Installation and set up Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes
