Dahua Technology DHI-ARD1731-W2 Intruder detector Specifications

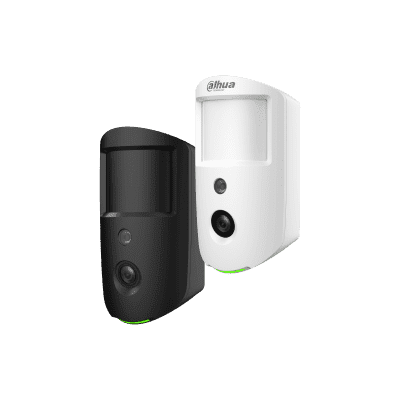

Dahua Wireless PIR-Camera Intrusion Detector

Product Profile

The Dahua ARD1731-W2 Wireless PIR-Camera features a built-in 2 MP CMOS image sensor that captures high-definition snapshots when an intrusion is detected. The images are transmitted to the alarm hub before being sent to a mobile app or alarm centre (CMS/ARC), enabling visual alarm verification.

The camera uses 2.4G RF-HD transmission technology to improve image resolution and transmission speed. To protect user privacy, it only captures snapshots when an intrusion occurs.

The device supports IR detection and video review, with a maximum resolution of 1600 × 1200 and quick image transfer. It offers a one-week cloud cache for videos and images, an IR illumination range of 12 m at night, and multiple resolution modes.

The detection range extends up to 12 m with an 86° viewing angle, and it includes a pet immunity function, automatic temperature compensation, and three adjustable sensitivity levels. Additional features include a low-battery warning alarm, temperature monitoring, and frequency hopping with two-way communication technology for stable communication.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	Intruder Alarms>Intruder detectors
Model code	DHI-ARD1731-W2
PIR Detectors	Yes
Coverage/ Range m	12 m
Pet Tolerance	Yes
Power Consumption	6 W (Max), 0.2 mW (Standby)
Temperature Compensation	Yes
Mount Type	Wall
Vertical Coverage	2.2 m (7.22 ft)
Indoor/Outdoor	Indoor
Electrical Specifications	Power Supply: CR123A*3
Physical Specifications	Dimensions mm: 71.0 x 53.2 x 127.6
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F)
Additional info	Supports IR detection and video review. Maximum resolution 1600 × 1200. One-week cloud cache for videos and images. Quick image transfer. IR illumination range of 12 m at night. Multiple resolution modes available. Detection range: 12 m/86°. Pet immunity function. Auto temperature compensation. 3 adjustable sensitivity levels. Low battery warning alarm. Temperature monitoring. Offers frequency hopping and two-way communication technology, ensuring the stability of communication. Cloud update and automatic recovery from update failure.
Download PDF version Download PDF version

Make

Dahua Technology

Manufacturer

Dahua Technology Ltd

Category

Intruder Alarms>Intruder detectors

Model code

DHI-ARD1731-W2

PIR Detectors

Yes

Coverage/ Range m

12 m

Pet Tolerance

Yes

Power Consumption

6 W (Max), 0.2 mW (Standby)

Temperature Compensation

Yes

Mount Type

Wall

Vertical Coverage

2.2 m (7.22 ft)

Indoor/Outdoor

Indoor

Electrical Specifications

Power Supply: CR123A*3

Physical Specifications

Dimensions mm: 71.0 x 53.2 x 127.6

Environmental Specifications

Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F)

Additional info

Supports IR detection and video review.
Maximum resolution 1600 × 1200.
One-week cloud cache for videos and images.
Quick image transfer.
IR illumination range of 12 m at night.
Multiple resolution modes available.
Detection range: 12 m/86°.
Pet immunity function.
Auto temperature compensation.
3 adjustable sensitivity levels.
Low battery warning alarm.
Temperature monitoring.
Offers frequency hopping and two-way communication technology, ensuring the stability of communication.
Cloud update and automatic recovery from update failure.
