OPTEX RLS-3060V outdoor and indoor security sensor using LiDAR technology

Technical Specification

Features:

Make: OPTEX
Model code: RLS-3060V
Series: REDSCAN Pro Series
Coverage/ Range m: 30 x 60
Angle of Detection ^o: 190

Additional info:

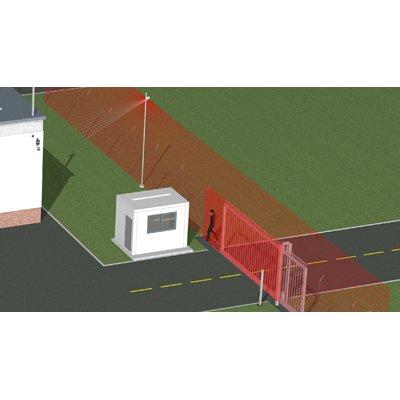

Analytics recognising moving object’s size, speed and distance from the unit 30x60m, customisable vertical or horizontal detection Built-in assistance camera, for easy installation and alarm event review up to 8 independent zones with configurable sensitivity, target size and output

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	OPTEX
Manufacturer	OPTEX
Category	Intruder Alarms>Intruder detectors
Model code	RLS-3060V
Series	REDSCAN Pro Series
Coverage/ Range m	30 x 60
Angle of Detection ^o	190
Power Consumption	500 mA max. (24 VDC), 12 W max. (PoE+)
Radius m	1 ~ 30 m
Mount Type	Wall, Ceiling, Pole
Vertical Coverage	Indoor: 2 m or higher / Outdoor: 4 m or higher
Indoor/Outdoor	Indoor/Outdoor
Electrical Specifications	Power Supply: 19.2 ~ 30 V DC, PoE+
Physical Specifications	Dimensions mm: 230 x 160 x 256.6
Environmental Specifications	Operating Temp ^oC: -20 ~ +60 C (-4 ~ +140 F)
Additional info	Analytics recognising moving object’s size, speed and distance from the unit 30x60m, customisable vertical or horizontal detection Built-in assistance camera, for easy installation and alarm event review up to 8 independent zones with configurable sensitivity, target size and output
