OPTEX real-time flow control people counter

Product Profile

Flow control to support social distancing

As the world moves to the new normal and measures are lifted, governments have put in place restrictions to support social distancing and avoid any new spread of COVID-19. Managing and controlling the numbers and access of people in and out of stores and offices, or indeed any building open to the public is crucial in supporting social distancing measures.

The importance of real-time data accuracy

Measuring occupancy as it happens with immediate updates of the people count is therefore critical as could lead to overcrowding, making social distancing hard to control and causing a risk to safety. The data needs to be gathered in real-time and transmitted instantly to the integrated occupancy software platform in order to give an exact picture on how many people are in a store, room or a specific area of a building.

Another aspect to consider is the precision in the count of people going in or out of a store, making sure there are no errors in the count that over time accumulate minimising the reliability of the information, and which could again create unsafe situations or impact negatively on the store sales, if for instance no access was allowed based on incorrect reporting that occupancy threshold had been reached.

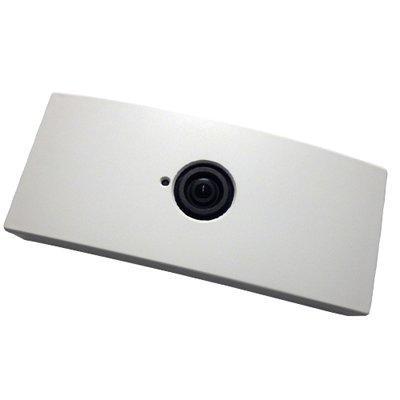

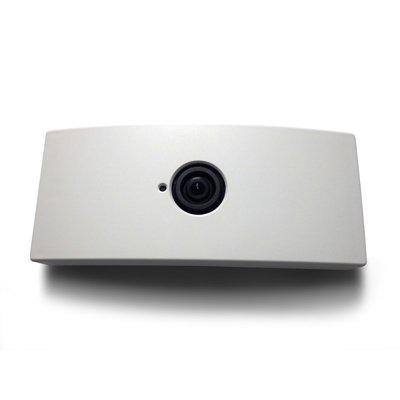

The OPTEX Akribos VC-1020 is a real-time and multi-directional indoor people counter that can provide more than 97% accuracy. It ignores trollies and baskets and manages groups of individuals by tracking the direction of every individual, even complicated movements such as people turning back or standing still. Now featuring MQTT protocol, the Akribos sensor can be integrated with third party analytics software transmitting instantly the data gathered which can then be used to create key-performance reports, dashboards and visual displays to control occupancy levels.

A long-term solution for businesses

Many businesses and retailers are using their security staff to manage access and control queue volumes and as such, installers have an opportunity to become the principal point of contact for bringing new solutions regarding occupancy level and social distancing.

The solution with OPTEX Akribos solves the issue created by the pandemic, but also solves the ongoing challenge of efficiently and accurately monitoring occupancy levels within a busy working or retail environment. The analytics and people traffic reporting can help retailers manage their staff and product placement better, and in the office to have a more efficient building management based on occupancy level.

Read more

Technical Specification

Manufacturer OPTEX
Model code Akribos VC-1020
Chip Inch Size 1/4 inch
Colour Type Colour / Monochrome
Sensitivity Lux 100 lux
Electrical Specifications Voltage: 24 V DC / 48 V DC / PoE
Power Consumption: 7W
Mount Type Surface, Ceiling
Physical Specifications Weight g: 220
Dimensions mm: 85 x 193 x 34
Environmental Specifications Protection: IP32
Operating Temperature oC: 0 ~ 50 C (32 ~ 122 F)
Operating Humidity %: 30 ~ 85
Additional info
  • Automated data transfer via TCP/IP in XML or TXT format
  • Works with 3rd party analytics/building occupancy software

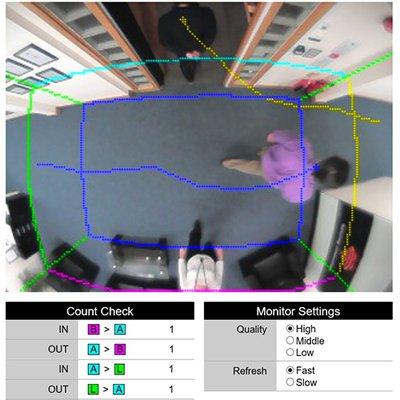

  • Real time multi-directional traffic count (in/out – left/ right/straight)
  • Tracks complicated movements (people standing still, stopping, turning back, crowds)
  • Easy set-up with pre-configured multi count area settings
  • Object shape recognition, direction recognition & 3D warping
  • Sensor not easily affected by shadows or sunlight
  • Live video stream with remote web access
  • Count data storage up to 30 days
  • Wide count area maximum 5 metres
  • Installation height up 6 metres (via licence key)
  • Single and multistore applications
  • Easy to install, configure, manage and maintain
  • Simple web-based setup interface
