Wisenet 7 - Excellence through Innovation

Product Profile

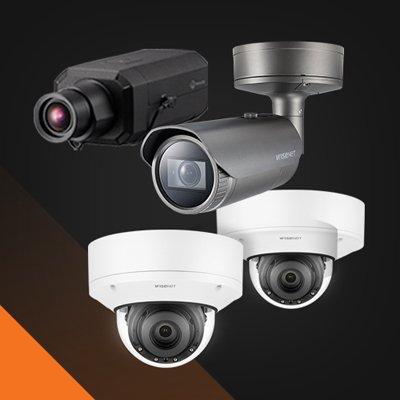

Security requirements change and market trends evolve. One constant remains: the need for intelligent networked surveillance solutions – in every market, for any application. At the heart of Hanwha Techwin’s new product development is the Wisenet 7 System on a Chip (SoC). Developed in-house and built in Korea, we’re continually enabling new features and analytics. Wisenet 7 is our most technology-intensive, innovative and feature-rich SoC…proving the biggest ideas often have the smallest beginnings.

Read more

Technical Specification

Make Hanwha Techwin
Manufacturer Hanwha Techwin Europe

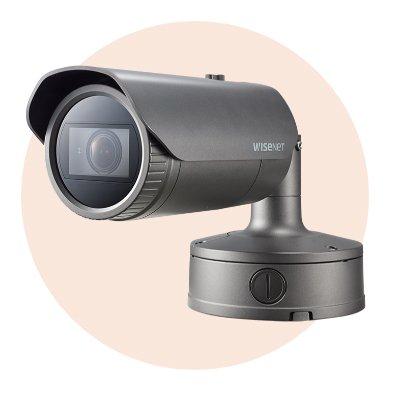

Model code XNO-9082R
Series Wisenet 7
Chip Inch Size 1/2.8 inch
Colour Type Colour / Monochrome
Resolution 4K resolution
Sensitivity Lux 0 ~ 0.05 lux
Auto Iris Yes
Electrical Specifications Voltage: 12 V DC, 24 V AC, PoE
Power Consumption: 12.5 W
Motion Activated Yes
Focal Length mm 2.8 ~ 8.4
Wide Dynamic Range Yes
Network Properties Image Frame Rate: 30 fps
Interface: RJ-45(10/100/1000BASE-T)
Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/5~1/12,000sec
Zoom Yes
Compression Type H.265/H.264: Main/High, MJPEG
Physical Specifications Weight g: 2200
Dimensions mm: Ø91 x 369
Environmental Specifications Operating Temperature oC: -50 ~ +60 C (-58 ~ +140 F)
Protection: IP66/IP67, IK10
Operating Humidity %: <90
System Requirements Web Browser: Supported OS: Windows 8.1 or later, Mac OS X 10.13 or later / Recommended Browser: Google Chrome / Supported Browser: MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only)
Additional info
  • Vivid 4K Resolution
  • Extreme WDR with Scene Analysis technology
  • Sharper images with enhanced noise reduction technology
  • DIS with built-in gyro sensor
  • Enhanced Lens Distortion Correction
  • End-to-end Cybersecurity
  • Modular structure for easy installation
  • OSD vector graphic
  • USB and mobile app support
  • Reduce bandwidth using WiseStream II
  • License-free intelligent video and audio analytics
  • Dual microSD slots
  • AI-based object tracking
Download PDF version Download PDF version
