Optex FTN-ST PIR outdoor detector

Technical Specification

Features:

Make: OPTEX
Model code: FTN-ST
Series: FTN Series
PIR Detectors: Yes
Coverage/ Range m: 5

Additional info:

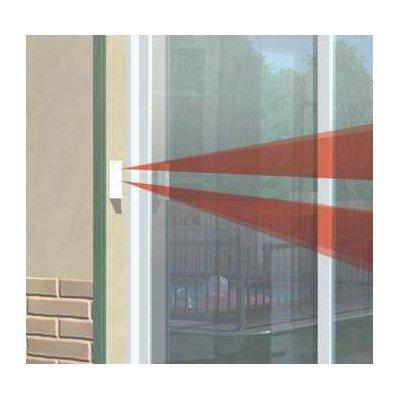

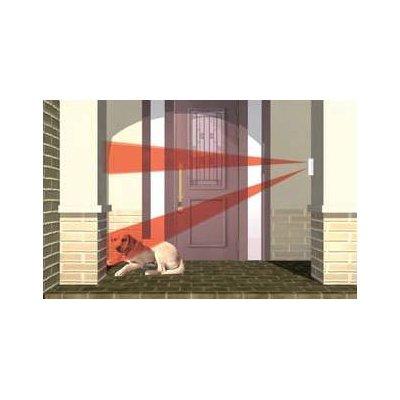

Optex FTN-ST is a passive infrared outdoor detector for window, door, balcony and building protection with active IR antimasking. The PIR detector includes built in bracket, 5m/2m switchable lens, SMDA logic, intelligent and detection logic, pet tolerance, active IR digital anti-masking and wall tamper.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	OPTEX
Manufacturer	OPTEX
Category	Intruder Alarms>Intruder detectors
Model code	FTN-ST
Series	FTN Series
PIR Detectors	Yes
Coverage/ Range m	5
Angle of Detection ^o	190
Pet Tolerance	Yes
Power Consumption	17 mA
Anti-Masking	Yes
Mount Type	Wall
Selectable Pulse Count	Yes
Indoor/Outdoor	Outdoor
Wall/Ceiling Mount	Wall
Electrical Specifications	Power Supply: 9.5 ~ 18 V DC
Environmental Specifications	Operating Temp ^oC: -20 ~ +60 C (-4 ~ +140 F)
Additional info	Optex FTN-ST is a passive infrared outdoor detector for window, door, balcony and building protection with active IR antimasking. The PIR detector includes built in bracket, 5m/2m switchable lens, SMDA logic, intelligent and detection logic, pet tolerance, active IR digital anti-masking and wall tamper.
