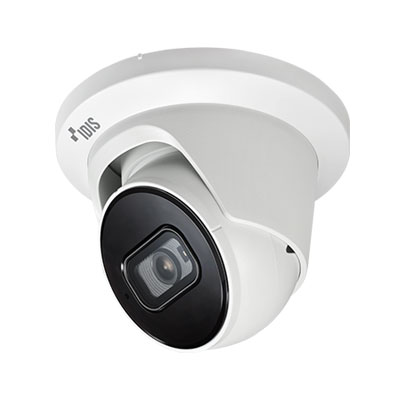

IDIS DC-D4512WERA 2.8mm 5MP IR IP turret camera

Technical Specification

Features:

Make: IDIS
Model code: DC-D4512WERA 2.8mm
Series: DC-D4000 Series
Chip Inch Size: 1/2.8 inch
Colour Type: Colour / Monochrome

Additional info:

5MP (2592x1944) Resolution Fixed-focal lens (f=2.8mm) H.265 and Intelligent Codec PoE (IEEE 802.3af Class 3) IR LED (30m / 98.4ft (4 ea)) IDIS Deep-Learning Analytics (IDLA) Easy Installation with DirectIP NVR

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	IDIS
Manufacturer	IDIS
Category	CCTV>IP Dome cameras
Model code	DC-D4512WERA 2.8mm
Series	DC-D4000 Series
Chip Inch Size	1/2.8 inch
Colour Type	Colour / Monochrome
Resolution TVL	5 MP
Megapixel	Yes
Sensitivity lux	Color : 0.13 lux @ F1.6; B/W : 0 lux (IR LED ON)
Digital (DSP)	Yes
Mount Type	Wall, Ceiling, Pole, Corner mount
Electrical Specifications	Voltage: PoE Power Consumption: 7.6 W
Focal length	2.8 mm
Compression	H.265, H.264 (MP) M-JPEG
White Balance	Yes
Electronic Shutter range	1/30 ~ 1/10,000
Built-in IR LED	Yes
Network Properties	Interface: RJ45 (10/100BASE-T) Network Protocols: DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 Image Frame Rate: 30 fps Inclusive DVR/ Web Server: Micro SD/SDHC/SDXC
Physical Specifications	Dimensions mm: 121 x 79 Weight g: 605
Environmental Specifications	Operating Temp ^oC: -40 ~ 55 C (-40 ~ 131 F) Operating Humidity %: 0 ~ 90
Additional info	5MP (2592x1944) Resolution Fixed-focal lens (f=2.8mm) H.265 and Intelligent Codec PoE (IEEE 802.3af Class 3) IR LED (30m / 98.4ft (4 ea)) IDIS Deep-Learning Analytics (IDLA) Easy Installation with DirectIP NVR
Download PDF version Download PDF version
