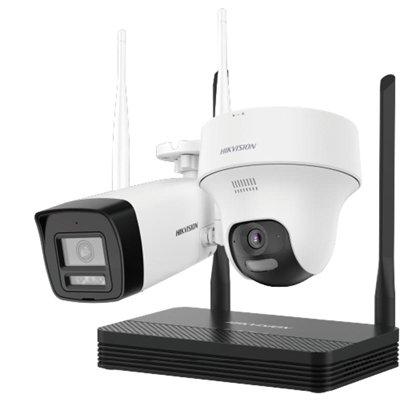

Hikvision Cable-Free Series – EasyLink Wi-Fi Kit

Product Profile

Traditional outdoor cameras are often at risk of damage or loss of SD cards. In addition, when deploying Wi-Fi cameras, installers need to add cameras one by one via mobile apps, which is time-consuming and labor-intensive.

Hikvision has launched the new EasyLink Wi-Fi kit, which features safe storage in NVS, easy-to-use connections, and provides a centralized management system. One Wi-Fi kit for all your worries.

Secure video storage with NVS

Separate centralized storage in NVS for safer recording
Supports up to 512G SD card without additional purchase. No more worries about the video storage.

Effortless and quick configuration

Traditionally, installers would need to add cameras one by one via the mobile app. Now with EasyLink Wi-Fi Kit, all devices can be added instantly with a single scan on the Hik-Connect app. Easy connection and configuration.

Enhanced Wi-Fi performance

Supports Wi-Fi 6, enjoy faster and more stable Wi-Fi connections, reducing lag and buffering.

Improved connectivity, connect multiple devices simultaneously without sacrificing speed or performance.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Technical Specification

Make	Hikvision
Manufacturer	Hikvision
Category	CCTV>IP cameras
Model code	NKS422W02H
Series	Hikvision Cable-Free Series
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution	2 MP resolution
Sensitivity Lux	Bullet: Colour: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR ; Turret: Colour: 0.03 Lux @ (F2.2, AGC ON), B/W: 0.015Lux @(F2.2, AGC ON), 0 Lux with IR
Electrical Specifications	Voltage: 12 V DC Power Consumption: Bullet: ≤6W ; Turret: ≤9W
Focal Length mm	2.8 mm
Wide Dynamic Range	Yes
Auto Gain Control	Yes
White Balance	Yes
Compression Type	H.265;H.264;MJPEG
Network Properties	Interface: RJ45 10M/100M self-adaptive Ethernet Network Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP
Physical Specifications	Weight g: Bullet: 305 g ; Turret: 290 g Dimensions mm: Bullet: 260.9 x 113.9 x 67.4 ; Turret: Ø124 x 119
Environmental Specifications	Operating Temperature ^oC: Bullet: -30 ~ +60 C (-22 ~ +140 F) ; Turret: -10 ~ +40 C (-14 ~ +104 F) Operating Humidity %: ≤95
Additional info	Easy and quick wireless installation All cameras can be linked with NVS at one time Secure and integrated video storage, all videos are stored in NVS Up to 512 GB Micro SD card storage capacity Remote mobile phone management, all functions can be performed through Hik-Connect, such as camera adding, two-way audio, live view, playback, etc. Accurate motion detection function Smart IR and white light Built-in mic and speaker for two-way audio 1 fixed PT turret camera and 1 fixed bullet camera, both with 2 MP resolution and 2.8 mm focal length
