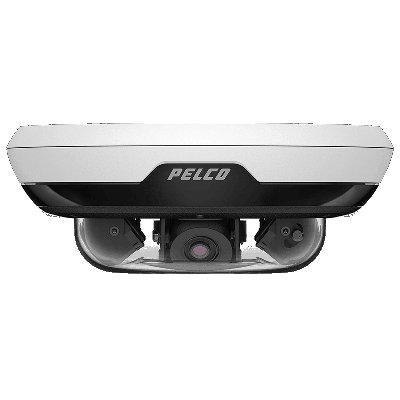

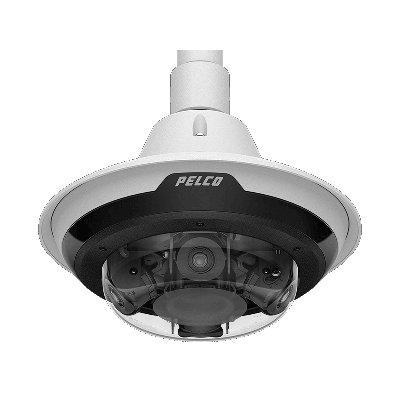

Pelco Sarix® Multi Pro Camera series
Product Profile
Protect your communities with Pelco’s Sarix Multi Pro camera, offering multi-directional coverage from a single vantage point. This flexible video security solution is easy-to-install and delivers high-resolution images across all lighting conditions.
Flexible Configurations for Wide Area Coverage - Provides multiple areas of coverage from a single vantage point, requiring fewer cameras
Lower Overall Deployment Costs - Save on installation time and costs with a single mounting point, cable, and VMS license
Adaptive IR Technology Option - Provides security detail in total darkness even as objects approach the camera
Pelco Smart Compression Technology - Reduce bandwidth and storage needs without compromising image quality
SureVision Technology - SureVision technology ensures strong low-light performance
Technical Specification
| Make | Pelco |
|---|---|
| Manufacturer | Pelco, Inc |
| Category | CCTV>IP cameras |
| Model code | IMD9118 |
| Chip Inch Size | 1/2.8 inch |
| Resolution | 3x3 MP resolution |
| Sensitivity Lux | 0.025 |
| Electrical Specifications |
Voltage: 24 V DC, 24 V AC, PoE+ Power Consumption: 26 W (24 VDC) |
| Motion Activated | Yes |
| Focal Length mm | 4 mm |
| Mount Type | Surface, Pendant, In-ceiling |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45, Gigabit Ethernet, 100BASE-TX, 1000BASE-TX Network Protocols: IPv4, IPv6, HTTP, HTTPS, SOAP, DNS, NPT, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS |
| Back Light Compensation | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/8 to 1/8000 sec |
| Compression Type | H.264 Pelco Smart Compression, H.265 Pelco Smart Compression, Motion JPEG |
| Physical Specifications |
Dimensions mm: 298 x 161 Weight g: 1550 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 C (14 ~ +122 F) Operating Humidity %: 0 ~ 95 |
| Additional info |
|
