Dallmeier launches new Video Management Centre with touch screen
Dallmeier launches new Video Management Centre with touch screen

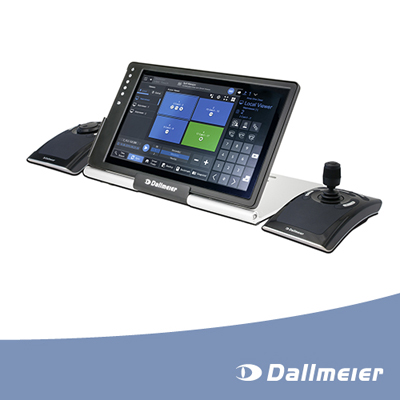

The VMC-2 Dallmeier offers a new Video Management Centre with touch screen for the convenient and intuitive control of video systems. The Video Management Centre VMC-2 stands out due to its ergonomic and intelligent design. It is made up of a touch screen, a joystick and a jog-shuttle. The individual components are modular and flexible, i.e. they are freely positionable and thus ideally suited for both left- and right-handed operators. Moreover, it is possible to use the components independently as stand-alone devices. The VMC-2 is compatible with SeMSy® III video management systems and is DIN EN 50130-4 compliant. VMC joystick By using the joystick, the security operator is able to control movable cameras conveniently. Pan, tilt and zoom movements can be carried out intuitively. With just a single click on the joystick button, the camera automatically moves back to its home position. If the mode is switched, the joystick can also be used as a mouse, which allows an easy menu control. VMC touch The touch screen enables a simple and convenient multi-touch control. The intuitive user interface allows the security operator for instance to activate live streams or to control PTZ cameras precisely. Furthermore, the playback of recordings and the initiation of backups can be controlled conveniently. In addition, an enhanced snapshot function can be used for individual marks and comments directly in the image. VMC jog-shuttle The jog-shuttle is ideally suited to find certain frames in a video sequence quickly. By rotating the central jog-dial, the security operator can conveniently move through individual frames. Using the shuttle-ring surrounding the jog-shuttle, the scenes can subsequently be replayed forward or backward at different speeds.

Add to Compare
