CCTV Digital Video Recorders (DVRs)(2,101)
The Contera® Micro Bullet outdoor-ready megapixel camera features 1080p and 5-megapixel (MP) resolution for optimum performance. The Contera Micro Bullet combines a day/night mechanical IR cut filter with an integrated 3.6mm lens. Regardless of the time of day, the Contera Micro Bullet is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR™ (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions. For clear colour images in low-light, NightView™ offers strong low-light sensitivity for capturing details in extremely poor-lit scenes, and is further enhanced by built-in Smart IR LED illumination that automatically adjusts output in response to the distance of an object in view to prevent over-exposure when the object is very close to the camera. The Contera Micro Bullet is ONVIF (Open Network Video Interface Forum) Profile S compliant, providing interoperability between network video products regardless of manufacturer.
Exhibiting at Security Essen, Hall 7, Booth B33. MOBOTIX’s AllroundDual camera balances flexibility and features continuing the trend of modular system design. The MOBOTIX M16 AllroundDual features exchangeable image sensors for day, night and thermal use along with flash memory, microphone, speaker, PIR and optional feature modules. Housed within a weatherproof (IP66) chassis along with a comprehensive set of built-in cyber security controls, the camera offers powerful new application and integration options for both system integrators and end customers. The M16 also proves that standards and innovation can truly co-exist as the MOBOTIX video surveillance camera that brings together the MxPEG video codec specifically developed for security applications and the H.264 industry standard within an ONVIF-ready camera system. For added flexibility, the built-in RTSP/Multicast capability allows simultaneous streaming of MxPEG, M-JPEG and H.264 video to multiple clients without performance loss. Benefiting from an upgraded processor and software, the M16 delivers the highest frame rate of any MOBOTIX camera along with intelligent 3D motion detection and more capacity for on-board software applications. The M16, in common with all MOBOTIX models, benefits from regular software updates to ensure reliability while adding additional feature enhancements that make the M16 one of the most intelligent yet flexible camera systems on the market.
System OverviewWith upgraded H.265 encoding technology, Eco-savvy series brings high efficient video compression capability. It can save bandwidth and storage. Meanwhile, the series features starlight, smart IR technology and intelligent image analysis techniques. This series supports reminder function, meanwhile fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard. Functions ePoE technologyThe ePoE technology of Dahua, designed internally, adopts advanced 2D-PAM3 coding modulation from physical layer, and realises full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost. Starlight TechnologyFeaturing Dahua’s Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-lightperformance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering colour images in near complete darkness . Wide Dynamic RangeThe camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimises both the bright and dark areas of a scene at the same time to provide usable video. Intelligent Video System (IVS)IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognising a dramatic scene change and generating a warning message to inspect the camera. Protection (IP67, IK10, wide voltage)The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), the camera is the choice for installation in even the most unforgiving environments. Smart H.265+Smart H.265+ is the optimised implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
Only Seagate has been making drives specifically for surveillance storage for ten years. SkyHawk™ is built to keep systems in the field longer and reduce the need for post-deployment support. Key Advantages ImagePerfect™ firmware ImagePerfect™ firmware supports 24×7 surveillance-optimized workloads tuned to record ~90% of the time and play back video footage the remaining 10%, and supports more cameras recording at higher resolutions than traditional drives. Workload rating Workload rating of 180TB/year allows SkyHawk to perform reliably in write-intensive surveillance systems—3× the workload rating of a desktop-class drive. NVR-ready design NVR-ready design allows drives to maintain performance in RAID and multi-drive systems, giving customers the flexibility to grow with the booming NVR market and scale their systems when more storage is needed. ATA streaming ATA streaming support sustains recordings from up to 64 HD cameras for smooth, uninterrupted footage. 2000 hours of storage Up to 10TB or over 2000 hours of HD video storage supports an increased number of cameras and helps to ensure longer data retention periods are met. One million hours MTBF 1M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs. Low power consumption Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Ruggedised design Tarnish-resistant components help protect drive from environmental elements, increasing field reliability ImagePerfect firmware avoids dropped frames 180 TB Workload per year - true 24/7 operation Supports up to 64HD Cameras, 8+ Drive bays Rotational Vibration (RV) Sensors, RAID Compatible Optional Data Rescue Services 3 Year Warranty
The Contera® Indoor Dome megapixel camera features 1080p and 5-megapixel (MP) resolution for optimum performance. The Contera Indoor Dome combines a day/night mechanical IR cut filter with an integrated motorised remote focus and zoom varifocal lens for excellent, optimal image quality. Regardless of the time of day, the Contera Indoor Dome is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR™ (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions. For clear colour images in low-light, NightView™ offers strong low-light sensitivity for capturing details in extremely poor-lit scenes. Built-in Smart IR LED illumination automatically adjusts output in response to the distance of an object in view to prevent over-exposure when the object is very close to the camera. The SD card slot supports up to 256GB of storage capacity for convenient onboard storage. The camera’s power can be supplied via a Power-over-Ethernet (PoE - IEEE 802.3af) compliant network cable connection. The Contera Indoor Dome is ONVIF (Open Network Video Interface Forum) Profile S and G compliant, providing interoperability between network video products regardless of manufacturer.
Since 2011, the patented Dallmeier Panomera® multifocal sensor technology has provided comprehensive video protection for vast areas in many football stadiums, perimeters, airports and city areas all over the world. The new Panomera® series, the “Ultraline“, has exceptionally high effective resolution for these situations. Dallmeier presents the first model of the new series, the Panomera® S8 Ultraline, which delivers up to 190 megapixel at 30 fps. The Panomera® concept has revolutionised video technology: with up to eight sensors in a single camera, it is possible to capture enormous distances in unprecedented resolution quality. With fewer cameras and considerably less expense for both infrastructure and management, the total cost of ownership of video solutions are reduced significantly. At the same time, customer specifications regarding pixel density and coverage can be satisfied very precisely. Up to 26,000 sqm. coverage with one camera The first model of the new Ultraline series, the Ultraline S8, has an excellent dynamic range of 130 dB UWDR (effective) for an extreme Panomera® effect. This enables a resolution of 125 px/m up to a distance of 160, 104 or 82 m, enabling individuals to be recognised over the entire distance. Identification of persons (250 px/m) is supported up to a distance of 46 m depending on the model, observation (62 px/m) is possible even up to a distance of 322 m. This corresponds to a huge image space of more than 26,000 sqm. with continuous depth of field. Permanent capture The multifocal sensor system captures and stores all regions of the image space in the highest detail resolution. At the same time, it is not important whether the operators are concentrating on a specific region in live mode (multiple detail zoom) or if regions of interest are displayed in detail based on video content analysis (multiple auto-tracking). The Panomera® recordings always include the entire area of interest and allow every operation to be analysed. “Made in Germany” and GDPR-ready Like all Dallmeier cameras the new Panomera® model is manufactured entirely in Germany, at the Dallmeier factory in Regensburg. This in itself is a major factor in the manufacturer’s data protection and data security strategy, since it is then impossible for unauthorised persons to gain access through “backdoors”, for example. In all, 14 functions such as the setup of private zones, People Masking or the very latest encryption-authentication technology in the processing chain of Dallmeier solutions ensure that the strict requirements of the GDPR relating to data protection and data security are met.
System overviewExperience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Cooper series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various varifocal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost performance makes the camera an ideal choice for SMB solutions. Functions Four signals over one coaxial cableHDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.* Audio input is available for some models of HDCVI cameras. Long distance transmissionHDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.**Actual results verified by real-scene testing in Dahua's test laboratory. SimplicityHDCVI technology inherits the born feature of simplicity from traditional analogue surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analogue system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. Smart IRThe camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera. Multi-formatsThe camera supports multiple video formats including HDCVI, CVBS and other two common HD analogue formats in the market. The four formats can be switched over through OSD menu or by PFM820 (UTC controller). This feature makes the camera to be compatible with not only HCVRs but also most end users’ existing HD/SD DVRs. Multi-language OSDOSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish. ProtectionThe camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
VIVOTEK’s FE9391-EV is the next generation of market-leading 12-Megapixel 360° panomorph network camera, featuring a detailed 12-Megapixel CMOS sensor which guarantees superb image quality. Utilising the latest in panomorph lens technology for 180° panoramic view (wall mount) or 360° surround view (ceiling/wall/floor mount) with zero blind spots, the camera is able to provide comprehensive coverage of open areas such as airports, shopping malls, parking lots, retail stores, offices and more. The FE9391-EV (IP66, IK10 rated) is the successor to FE8391-V in the VIVOTEK 360° surround view family. The new model is equipped with a removable IR-cut filter and WDR Enhancement technology, allowing the camera to maintain optimal image quality around the clock for unparalleled visibility under high-contrast lighting environments. 3D Noise Reduction technology enables the camera to capture clear, polished video under low-light conditions. The FE9391-EV's use of the latest in panomorph lens technology has led to much improved image quality with a huge drop in edge distortion. The FE9391-EV is also updated with the latest in IR illumination, VIVOTEK's Smart IR II technology with Adaptive IR. Adaptive IR enables the FE9391-EV's IR illuminators to adjust to the scene together or individually to provide the best possible IR image, reducing glaring hotspots and/or underexposed dark spots. The FE9391-EV is also be the first to include a new wave of advanced Video Content Analysis (VCA). Available in 4Q 2017, this includes better object detection in order to reduce false alarms. Through advanced Video Content Analysis functions including crowd detection features the FE9391-EV is the next steps in elevating surveillance cameras from image capturing devices to advanced notification instruments, allowing users to see more in smarter ways.
System overviewExperience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The 1080P starlight HDCVI camera presents a high quality image with rich details even under extreme low-light conditions. Also, the Lite series features compact design and friendly price. It offers various motorised vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions. Functions 4 signals over 1 coaxial cableHDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI cameras. Long distance transmissionHDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable. **Actual results verified by real-scene testing in Dahua's test laboratory. SimplicityHDCVI technology inherits the born feature of simplicity from traditional analogue surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analogue system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. StarlightWith the adoption of high performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate colour to be recognised at night or in scenes with limited illumination. Smart IRThe camera is designed with IR LED illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera. Multi-formatsThe camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with most end users’ existing HD/SD DVRs. Multi-language OSDOSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,Italian, Japanese, Korean, Russian and Polish. ProtectionThe camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
DeepSense series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua DeepSense series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua DeepSense includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way. System overviewFace recognition AI network camera is designed to focus on the recognition of frontal human faces, it adopts high performance smart chip with deep learning technology, which can provide high precision face image snapshot and comparison. This product supports real-time face detection, face attributes analysis, face images comparison and face image database management. Functions Face captureFace capture is a software application that automatically captures faces from within a digital image or a video frame from a video source. Dahua cameras use advanced deep learning algorithms and are trained by a large number of face data sources, enabling the camera to locate faces quickly and accurately from the video source and capture facial images. Face attributesThrough the use of deep learning algorithms to analyze facial images, Dahua cameras can extract six facial attributes from each frame, including gender, age, expression (happy, calm, surprised, sad, and angry), glasses, masks, and moustaches. Customers can acquire data of interest via face attributes statistics. MetadataMetadata is feature attribute information extracted from a target object which can be used for data retrieval. Dahua face recognition camera can extract six facial attributes and output the metadata for analysis. Face recognitionOnce facial features are extracted from captured faces, they are stored in a database where they can be easily searched and compared against other images. Once a successful match is found, the system outputs the result. The Dahua Face Recognition camera supports a built-in database that stores up to 10,000 facial images, helping the camera achieve real-time face capture and comparison. Starlight TechnologyFeaturing Dahua’s Starlight Technology, this camera is ideal for applications with challenging lighting conditions. Its low-light performance delivers usable video with minimal ambient light. Even in extreme low-light conditions, Starlight Technology is capable of delivering colour images in near complete darkness. Wide dynamic range (WDR)Embeded with industry leading wide dynamic range (WDR) technology, vivid picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimises both the bright and dark areas of a scene at the same time to provide usable video. Smart Codec (H.265+ & H.264+)Smart Codec is the optimised implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.
Videotec is launching DELUX, the new imaging and encoding technology for outdoor surveillance that generates incredibly vivid and clear colour video images day or night. In particular, thanks to the camera’s increased light sensitivity, the DELUX technology can obtain bright images with well-defined colours in very low light conditions – even typical night-time conditions to 0.006 lux (0.0006 lux in black and white). The technology offers significant advantages for video surveillance in sensitive outdoor areas where it is necessary to identify people, objects, moving vehicles and abnormal events with the highest levels of detail possible at all times, even at night. Developed end to end by Videotec’s R&D team, the new DELUX technology has now been integrated into the ULISSE COMPACT PTZ, the worldwide benchmark for the surveillance of urban and industrial areas, critical infrastructures, transportation, perimeters and borders. The ULISSE COMPACT is a Day/Night, FullHD 1080p camera with a 30x optical zoom and a frame rate of 60fps. It is capable of accurately pinpoint details in any scene – even dynamic, rapidly changing situations. In addition to improved light sensitivity, with outstanding colour rendering and greater noise reduction, the DELUX technology has brought new advanced performances to the ULISSE COMPACT, namely in the control of speed proportional to zoom and management of Privacy Masking. ULISSE COMPACT’s robust mechanical construction guarantees unbeatable performance in all weather conditions, – from -40°C to + 60°C – with a rotation speed of up to 200°/s, highly accurate preset positioning, a wiper and an integrated LED illuminator. Thanks to the meticulous care taken in all of the DELUX technology design stages, significant reductions have been made to the costs of this new ULISSE COMPACT model. In addition to the improved performance, this has increased the model’s competitiveness thus responding to customer’s needs and an increasingly selective market.
The EU General Data Protection Regulation (EU GDPR) affirms the great importance of data protection and data security, but does not spell out any regulations relating specifically to video security systems. With the 14 functions of the Dallmeier module, businesses can configure their video systems individually so that each is compliant with the requirements of the EU GDPR. The video solution must satisfy the criteria for data protection With regard to data protection, which is to say the safeguarding of data protection principles and the rights of data subjects, Dallmeier offers four components, specifically the pixellation of entire individuals by “people masking”, the setup of “private zones” in the captured image to render public areas invisible for example, and the definition of the maximum storage duration for each camera. Optionally, Dallmeier customers can also use a detailed virtual 3D simulation as early as the project planning stage to define which areas are not significant for data protection purposes due to image quality. Data security is paramount in the EU GDPR – for video as well For the requirements of data security, i.e. the protection of confidential or personal data from manipulation, loss or unauthorised access, the Dallmeier module offers ten functions in all. On the network level, the Dallmeier module provides authentication according to IEEE 802.1X, end-to-end encryption with TLS 1.2 / 256-bit AES in current Dallmeier systems, and with the “ViProxy” function, Dallmeier recording appliances fulfil the role of security gateway for the video system. Furthermore, all hardware, software and firmware solutions are developed in-house, which eliminates the possibility of hidden access through backdoors. On the recording level, compliance with EU GDPR regulations is guaranteed by the optional “dual control principle” for viewing recordings, the specification of recording time for each user group with “MaxView” and user group administration via AD/LDAP. Reliable detection and prevention of connection attempts is assured by the “Fail2Ban” function, corresponding failover and redundancy mechanisms during recording protect against data losses. Finally, LGC certification ensures that all criteria for judicial usability are fulfilled in the preservation of evidence. “It is no secret that the ultimate interpretation of the EU GDPR in practical implementation is in no way defined conclusively and will continue to be debated and defined intensely by the national and European data protection oversight authorities until long after the end of 2018”, says Jürgen Seiler, managing director of the Dallmeier consulting subsidiary davidiT. “Consequently, the best and simplest way to approach video security is to implement solutions which already provide the answers to all of the requirements that can be anticipated. With the 14 functions of our combined data protection and data security module, customers receive access to precisely this functional range in a form which is easy to both manage and configure.” Comprehensive brochure and webinar with solution and application demo on the subject A comprehensive brochure on the subject is available and a webinar on the data protection and data security module will be presented on July 19th 2018 at 05:00 pm CET for interested decision makers and technicians. The webinar will provide a general overview of the topic and of the various functions and their configuration. Brochure and registration link can be found at: https://www.dallmeier.com/en/events/webinars/information-on-eu-gdpr-and-video-security.html
System overview Experience 5 megapixel video with the simplicity of reusing existing coaxial infrastructure. The 5MP starlight HDCVI camera presents a high quality image with rich details even under extreme low-light conditions. The camera also features broadcast-quality audio to provide enhanced supplementary evidence collection. It offers various motorized/fixed lens models with 120dB true WDR and HD/SD switchable output. The higher resolution and starlight feature makes the 5MP HDCVI camera an ideal choice for mid to large-size businesses and projects where both highly reliable surveillance and construction flexibility are needed. Functions 4 signals over 1 coaxial cableHDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI cameras. Long distance transmissionHDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700m transmission for 5MP HD video via coaxial cable, and up to 300m via UTP cable. **Actual results verified by real-scene testing in Dahua's test laboratory. SimplicityHDCVI technology inherits the born feature of simplicity from traditional analogue surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analogue system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. StarlightWith the adoption of large sized high performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognised at night or in scenes with limited illumination. Broadcast-quality audioAudio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information. Multiple-formatsThe camera supports multiple video formats including HDCVI, CVBS, and other two common HD analogue formats in the market. A DIP switch located on the cable allows you to quickly toggle formats, further simplifying installationand debugging. This feature makes the camera compatible with not only XVRs, but also most existing HD/SD DVRs. Wide Dynamic RangeEmbedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimises both the bright and dark areas of a scene at the same time to provide usable video. Advanced 3DNR3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves the storage space. ProtectionThe camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
In Mirasys VMS Version 8 particular attention has been paid to security and privacy. Also, pre-existing familiar product features such as audit trail and versatile material management and search functionality brings significant benefits, for example, for the new EU General Data Protection Regulation (GDPR) requirements. Mirasys V8.4 is also a foundation for totally new opportunities related to this; what comes to system management and usage reporting, for example. Functional effectiveness Mirasys VMS is quick and easy to install, and especially effective in networked, IP-based CCTV systems and their operational and management needs, such as centralised management and upgrading/updating of servers, drivers and client applications without requiring on-site travel to remote locations. User profiles are easy to create and change. Servers can be pre-installed and pre-configured before delivering to the deployment location. The Mirasys VMS V8 modern Spotter for Windows user interface can be adapted to individual and specific needs and preferences and provides more visual space for videos without sacrificing any functionality. The new HTML5 (Hypertext Markup Language, Version 5) based user interface in V8.4 offers easy access to the Mirasys system from anywhere; PCs, tablets or smartphones. Integration with other systems Video management systems are also more and more frequently integrated with other systems such as building management or access control. Video feeds will in the future also often be a replacement for on-site visits or tours by personnel. This reduces operational costs for security and building maintenance. User interfaces Video surveillance camera features are consistently improving. Image quality can be exceptionally good compared to what it used to be only a few years ago. The newest cameras also require much less network bandwidth due to more effective encoding formats, such as H.265/HEVC (from 40% up to 60% of bandwidth and storage space savings, depending on the footage and device without any loss of quality, or increased quality at the same level with the H.264/AVC encoding) that many IP camera manufacturers have started to support. Individual servers can handle more simultaneously connected cameras than before, and the entire system no longer has an actual upper limit. Mirasys VMS V8 is the answer to the scalability and performance needs of new camera technologies from any manufacturer. Thus, the video management system can be designed freely using the best equipment for the customer-specific requirements, and can also support all future needs. User-specific requirements As video management evolves, traditional command and control (monitoring) services also change. In addition to security monitoring, this will also involve monitoring other systems (building management, access control, fire alarms, or even manufacturing, logistics and operational systems or processes). More and more often these are done by a service provider, and not the organisation whose premises, systems or processes are monitored and/or managed. Further, systems today have more and more different types of users; and variation in user skills or access rights can be significant. This leads to individual, user-specific requirements for system access and use, while simultaneously requiring that the users must be able to access the system from different locations and using different devices. Versatile possibilities and efficiency of management For systems integrations and management, Mirasys VMS Version 8.4 brings new and more versatile possibilities with its new HTTP based Application Programming Interface (API). A particularly significant benefit is that the HTTP API allows also for automation of the system configuration and management. The new HTTP API provides modern REST-compliant (Representational State Transfer, or ”RESTful”) web services which allow requesting systems to access and manipulate textual representations of web resources using a uniform and predefined set of stateless operations from any platform (almost any operating system and practically any programming language). Version 8.4 also brings a new software licensing model that brings remarkable simplification, effectiveness and cost savings, because from V8.4 onwards every server no longer requires its own server-specific software license, but all the software and licence features and limits (such as number of cameras, number of servers, number of simultaneously logged in users or any other functions) can, in any size system, be managed through a single system-wide software licence controlled via the system’s Management servers. The new V8.4 licences are also no longer dependent on the server’s MAC (Media Access Control) address, but uses a multi-factor “License Protection Key” that remains valid even if the hardware system has to be changed (e.g., new or replacement NIC, Network Interface Card, or new or replacement graphics controller, etc.).
Avigilon Appearance Search technology is a sophisticated deep learning artificial intelligence (AI) search engine that can sort through hours of recorded video with ease to quickly locate a specific person or vehicle of interest across all cameras on a site. This technology can save time and effort during critical investigations as it intelligently analyzes video data, helping to track a person’s route and identify previous and last-known locations. With the upcoming Avigilon Control Center (ACC) 6.10 video management software, Avigilon Appearance Search technology will allow users to initiate a search for a person by selecting certain specific physical descriptions, including hair and clothing color, gender, and age. The new feature is designed to provide security operators enhanced speed and flexibility when conducting a search for a person.
32 channels, Real Time / Timelapse / Event recording, 2, Inbuilt Multiplexer, 16 in, 4 out, Triplex, 16 TB GB storage, 960 over all cams fps storage rate, MPEG, 704 x 480 (N), 704 x 576 (P) resolution, PAL, NTSC, USB, CD-RW, 16 in, 1out, HDD, 32 in, 2 out, RJ-45 10/100 Base-T, 445 x 88 x 388, 10, 100 ~ 240 V AC, 65 W, 5 ~ 40, 0 ~ 60Add to Compare
16 channels, Real Time / Timelapse / Event recording, 2, Inbuilt Multiplexer, 16 in, 4 out, Triplex, 16 TB GB storage, 400 over all cameras fps storage rate, MPEG, 704 x 480 (N), 704 x 576 (P) resolution, PAL, NTSC, USB, CD-RW, 16 in, 1 out, HDD, 16 in, 2 out, RJ-45 (10/100 Base-T), 445 x 88 x 388, 10, 100 ~ 240 V AC, 60 W, 5 ~ 40, 0 ~ 60Add to Compare
Features: Up to 4/8/16 Effio cameras with 1080p real-time preview H.264 dual-stream video compression Full channel@960H(960×576/960×480) real-time recording HDMI / VGA / TV / Spot simultaneous video output All channel synchronous real-time playback, GRID interface & smart search 3D intelligent positioning with Dahua PTZ dome camera Support 2 SATA HDDs up to 8TB, 2 USB2.0 Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSSAdd to Compare
Samsung has taken positive action in response to the worldwide shortage of 1TB HDDs by introducing new models to its H.264 SRD series of DVRs. "The immediate availability of these new models will ensure continuity of supply to our customers during a time when all market sectors, and not just the security industry, are affected by the severe shortage of 1TB HDDs," said Peter Ainsworth, Senior Product Manager for Samsung Techwin Europe Ltd. "A new 500GB storage version, which shares the same features as the other DVRs in the SRD series, offers an easily upgradable and cost-effective solution for those looking for the best quality digital video recording." Samsung has also introduced models which are being supplied without HDDs to give customers the flexibility to purchase additional approved HDDs by way of one of its HDD upgrade kits, which can be easily installed on-site without voiding the warranty of the DVR. These are available as 500GB upgrades and there are currently limited stocks of 1TB or 2TB upgrade kits also available.The eight and sixteen channel models all have built-in DVD drives featuring Virtual Progressive Scan (VPS) which eliminates the problem of blurred edges on moving objects, to provide picture-perfect still frames whilst a built-in web-server allows live and playback viewing options with the ability to back up incidents via a web browser. A dual codec operation delivers different streams for both high performance recording and optimised transmission, and selected models offer both Pelco Coaxitron and Samsung SSVC coaxial control protocols to provide users with full control of camera functions, as well as access to set-up menus from the convenience of a control room.Additional installer and operator friendly features include a multiple language on-screen display and a fully removable back panel so that hard drives can be swapped and upgraded without having to unplug all the cables. Data from ATM, POS or access control devices can be captured with the text data saved along with associated images to be played back if required at a later date.Available from all Samsung distributors, the new DVRs are offered with full support services from Samsung Techwin Europe Ltd, including free system design, free technical support and a full three-year warranty.Add to Compare
Dahua Technology DH-HCVR7816S 16-channel HDCVI digital video recorder has the following features: Tribrid: Each channel supports HDCVI/Analog/IP Video input 1HDMI/VGA/TV simultaneous video output,1 HDMI separate output HCVR7816S:All channel Max 1080P Up to 1080p realtime live view H.264 dual-stream video compression 8 channel synchronous realtime playback, GRID interface & smart search Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech, and etc. ONVIF Version 2.2 conformance 3D intelligent positioning with Dahua PTZ camera Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB,4 USB2.0 Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSSAdd to Compare

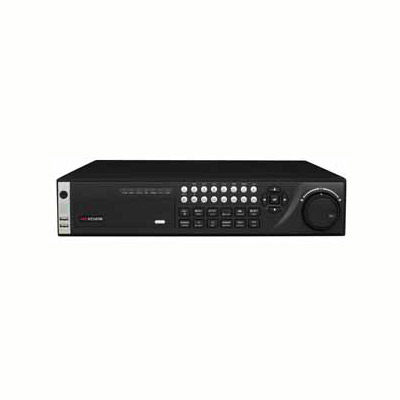

HIKVISION DS-9016HFI-S Intelligent Hybrid DVR supports H.264 video codec, offering real-time viewing and playback with the resolution up to 1280X720, as well as 1280X1024 resolution in VGA displays. The unique feature of the product is its intelligent video analytics and seamless joint of analogue and IP solution.Besides, DS-9016HFI-S supports self-diagnosis, reporting and processing once malfunctions occur. The user-friendly GUI of DS-9016HFI-S comes with Windows-style interface and an aesthetic, efficient operating panel.Key Features:Support IP camera with resolution up to HD 720p (1280X720), as well as support analogue cameras and IP cameras simultaneously in two ways: sixteen analogue cameras plus eight 4CIF IP cameras, and sixteen analogue cameras plus four mega pixel IP cameras.High resolution VGA displays (1280X1024).Support Digital Zoom in preview and playback mode.Mouse control PTZ movement.Support maximum Hard Disk Drives capacity (more than 2 TB). Recorded file can be locked in order to prevent the data from being overwritten. Locked file can also be unlocked.HDD can flexibly be set in redundant mode, read-only mode, or read and write mode.Easy to manage backup device by formatting, creating folder, and playing recorded files in backup device.Support remote downloading with resuming capability.Manage and configure IP camera (ex. compression parameters, motion detection, and sensor alarm) locally on DS-9016HFI-S Intelligent Hybrid DVR.Add to Compare
Dahua Technology, a manufacturer and supplier of video surveillance products headquartered in Hangzhou, China, recently announced the launch of XVR which is a true Penta-bird video recorder. Dahua XVR is ideal for all recorders, supporting 4 mainstream analogue camera types in the market as well as IP cameras. It offers compatibility as well as storage flexibility. Penta-brid Dahua XVR is a newly developed HD Video Recorder based on industry leading open structure to be compatible with multiple access technologies. It is the perfect solution to upgrade existing video surveillance systems. XVR supports 4 mainstream analogue camera types in the market, not only traditional CVBS (analogue) camera, but also HDCVI, AHD and TVI, as well as IP camera. Moreover, XVR recognises the signal formats from cameras automatically, including both Dahua cameras and third party cameras. True plug & play makes operation more user friendly and convenient. All these features make XVR a true Penta-brid video recorder. Compatibility POC (power over coaxial) helps XVR to simplify users’ network cable construction, eases the wiring of power cable and maximises users’ benefits. In addition, users can switch video channel type in OSD menu or HDCVI UTC controller. High performance Dahua XVR changes to a newly designed chassis with low-noise fan and hive structure heat dissipation. Smart H.264+ Codec is applied to XVR to save up to 50% bandwidth and storage. The upgrade of power electronics components and interface protection enhances XVR’s quality in terms of anti-crosstalk, anti-ESD and anti-surge.Add to Compare
16 channels, Real Time / Timelapse / Event recording, 2, Inbuilt Multiplexer, 16 in, 4 out, Triplex, 16 TB GB storage, 480 fps storage rate, MPEG-4, 800 x 600 resolution, PAL, NTSC, USB, CD-RW, DVD-R, 4 in, 1 out, HDD, 16 in, 2 out, RJ-45 10/100 Base-T, 440 x 88 x 430, 7.3Add to Compare
Verint's Nextiva® EdgeVR™ is an enterprise-class, IP-based Network Video Recorder designed for large-scale, geographically distributed operations. Available with hybrid IP/analogue capabilities, this true IP video solution more readily scales to IP video operations than analogue-based, hybrid NVRs, for greater long-term value and lower migration costs. And with all of the features that you've come to expect in a Verint® Network Video Recorder - high-quality imagery, optimised bandwidth utilisation, a secure embedded operating system, and industry-leading system interfaces - EdgeVR delivers superior performance and unsurpassed value. Hybrid system and superior H.264 performance EdgeVR delivers high-resolution images for both recording and live video viewing. Built with an innovative and powerful H.264 video compression engine, EdgeVR provides superior video quality at significantly lower bit rates, reducing storage and bandwidth requirements. Available with a hybrid analogue/IP video option, this intelligent NVR can support up to 64 IP and analogue video cameras. And EdgeVR is fully integrated with Verint's industry-leading Nextiva multi-port video encoders, wireless edge devices, and IP cameras, so it can be easily incorporated in almost any security surveillance system. Ideal for large-scale video operations Built on Verint expertise from more than 80,000 DVR implementations, EdgeVR provides the reliability, scalability, and flexibility that large-scale operations need. EdgeVR features RAID1 support, an embedded operating system for superior security, redundancy, and reliability. This high-performance NVR also provides powerful programming capabilities, flexible storage options, and the ability to set different resolutions, frame rates, and image retention for general surveillance, motion detection, transactions, and alarms. EdgeVR supports VGA, composite or DVI outputs, with one monitor used for quad or full-screen display and the other for full-screen sequencing. Users can search for and view video by time, date, transaction, or event. And day-at-a-glance, week-at-a-glance, and motion-based searches help users quickly pinpoint video of interest. EdgeVR operated with Nextiva Op-Center for centralised, enterprise-wide NVR management and Vid-Center for remote, enterprise-wide NVR viewing.Add to Compare
Support HDCVI/Analogue/IP Video input H.264 dual-stream encoding HCVR7816S-URH:All channel 1080P real time recording 8 channel synchronous real time playback, GRID interface & smart search 2HDMI/VGA/TV simultaneous video output Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB, 4 USB2.0 3D intelligent positioning with Dahua PTZ dome camera ONVIF Version 2.4 conformance Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek , and etc. Support RAID0,RAID1,RAID5,RAID10 Support hot-swap HDD Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) &Smart Phone(DMSS)Add to Compare
16 channels, Real Time / Timelapse / Event recording, Inbuilt Multiplexer, 16 in, 6 out, 32768 GB storage, H.264 / MJPEG(IP) , 1920 × 1080 resolution, PAL / NTSC, USB, G.711, HDD, Playback, Recording & Viewing, 30, Hybrid and IP ready, 440 x 460 x 89, 6.5, 100 ~ 240 V AC, 40 W, -10 ~ +55 C (14 ~ 131 F), 10 ~ 90Add to Compare
The SVR-440 is a smart looking cost effective 4 channel DVR that would not look out of place in any residential property or retail application. With its easy to use buttons to guiding you through the simplistic menus and the option of remote control, the SVR-440 is fast becoming a winner for installers for use in smaller applications. MPEG-4 compression delivers high quality recorded images and now with larger memory sticks available on the market removal of information could not be easier.Compact in size and refined in appearanceMPEG-4 compression delivers high quality recordingsChoice of recording modesTime, date and event search modes enables fast retrieval of imagesTwo directional audio transmissionAdd to Compare
The internal recording capacity of Samsung Techwin's DVRs and NVRs has doubled with the introduction of approved 2TB hard disk drives (HDDs).Compatibility with 2TB hard disk drives means that up to a total of 8TB can be stored internally on Samsung Techwin's DVR and NVR ranges for far greater flexibility either in terms of recording and storing a larger quantity of video or to record the same quantity at a higher image quality level.What's more, with Samsung Techwin's SVS series of external storage devices, a total of 24TB storage can now be recorded from the SVR series of DVRs and up to 40TB from the SNR series of NVRs, making them suitable for enterprise level recording solutions.2TB HDD upgrade kits are also available to allow easy to implement on-site upgrades of units that form part of existing CCTV projects.The list of Samsung Techwin DVR and NVR models which have 2TB HDD compatibility is as follows:ModelVideo Inputs CD/DVD Drive Images per second recording @ D1 resolutionMaximum No. internal HDDsMaximum No. of external storage unitsSNR-6400 (NVR)64N/A115244SNR-3200 (NVR)32N/A48044SVR-320032-40042SVR-168016-40042SVR-166016-10042SVR-164516-10021SVR-9609-10021SVR-9459N/A10021SVR-9409CD1002N/ASVR-4804-10021SVR-4504CD251N/AAdd to Compare
Honeywell has announced new mobile remote access capability to its popular HRDP H.264 digital video recorder (DVR). The new Remote -View app allows users to view live video on their Apple iPhone® from CCTV surveillance systems that use Honeywell's HRDP H.264 DVR.Users download the free Remote-View app from the Apple iTunes store and set up connection parameters. Then, they simply select the DVR from a drop-down list and click Connect to see live video on their iPhone device. Instead of using a computer in order to bring up a GUI or web browser where they can dial in, the functionality is completely mobile."Today, almost everyone is carrying a wireless device of some sort," said Bill Durno, global product marketing manager, Honeywell. "This new app allows anyone with an HRDP H.264 DVR, Internet connectivity, and an iPhone, iPod touch, or iPad to see their office or home anytime, anywhere within the coverage area for their mobile device. We also expect to support additional mobile platforms to increase remote access capability in the near," added Durno.The HRDP H.264 DVR, part of Honeywell's cost effective Performance Series portfolio of video surveillance products, supports a feature set comparable to many high-end embedded DVRs but at a much lower price. The DVR offers H.264 video compression for clear crisp video and extended storage times. It also supports a user-friendly front panel control, mouse operation, and IR remote control, wizards for fast and easy setup, and graphical search engines to help operators find evidence video quickly. An internal DVD-RW and two USB ports make it easy for users to copy evidence video to portable media.The HRDP records at a rate of up to 200 ips PAL. When it detects motion, the HRDP can automatically boost the recording rate to capture additional details of the scene. It is ideal for a wide variety of surveillance applications requiring high image per second recording or for capturing maximum detail of activity through building entrances and exits, such as small to medium-sized retail, financial, warehouse, and educational facilities.For more information visit www.honeywell.com/security/uk/performance.Apple, iPhone, iPad and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.Add to Compare
16 channels, Real Time / Timelapse / Event recording, 2, Inbuilt Multiplexer, 16 in, 4 out, Triplex, 2.5 TB GB storage, 480 fps storage rate, MPEG-4, 1280 x 1024 resolution, PAL, NTSC, USB, CD-RW, DVD-R, 16 in, 1 out, HDD, 16 in, 2 out, RJ-45 10/100 Base-T, 440 x 88 x 430, 7.7, 100 ~ 230 V AC, 75 W, 0 ~ 40, 20 ~ 85Add to Compare
The SRD-440 is fully compatible with the free Samsung iPOLiS MOBILE app which can be downloaded from iTunes and the Android market. It supersedes the SRD-450 and is likely to be equally popular with installers who are looking to recommend an economically priced recording solution for small retail and office environments, and particularly so where the user wishes to keep a watchful eye on their premises out of business hours. “Although priced as an entry-level DVR, the SRD-440 certainly does not compromise on quality,” said Peter Ainsworth, Senior Product Manager for Samsung Techwin Europe Ltd. “It is equipped with a range of impressive features including the ability to record high quality CIF video in real time across all channels, as well as single channel audio recording, whilst there is the option to record up to 4-CIF over selected channels.” The SRD-440 also provides users with the option to remotely view live or recorded video over the Internet via a browser and is supported by Samsung’s license free NET-i Viewer software which enables the centralised monitoring, control and administration of Samsung DVRs and iPOLiS network devices, even when the client has multiple sites and is using a mix of analogue and IP equipment. The utilisation of ‘network-friendly’ H.264 compression ensures the SRD-440 makes the most of available bandwidth whilst also maximising the amount of video, which can be stored on the SRD-440’s 500GB internal hard disk drive. A built-in USB slot provides a quick and easy way to extract recorded video of any important incidents. A 22 language graphical user interface has been designed to make it easy for users with minimal training to configure and control the SRD-440 and when needed, to take advantage of the wide range of search and playback options. Available from all Samsung distributors, the SRD-440 is offered with full support services from Samsung Techwin Europe Ltd., including free system design, free technical support and a full three-year warranty.Add to Compare
4 channels, Real Time / Timelapse / Event recording, Inbuilt Multiplexer, 4,096 GB storage, H.264, 1920× 1080 resolution, PAL / NTSC, USB, G.711, HDD, 30 fps, 260 x 220 x 40, 0.75, 12 V DC, 10 W, -10 ~ +55 C (14 ~ 131 F), 10 ~ 90Add to Compare
Samsung has introduced an entry level 4-channel Digital Video Recorder (DVR) for small retail, office and domestic environments. The SRD-450 provides users with the option to remotely view live or recorded video over the Internet via a browser, even on a smart phone, and thanks to the utilisation of ‘network-friendly' H.264 compression, which is far more efficient than other compression methods; the SRD-450 makes the most of available bandwidth to display quick and clear video. The use of H.264 compression also maximises the amount of video which can be stored on the SRD-450's expandable 500GB internal hard disk drive. To further make best use of the internal hard disk drive, the SRD-450 can be programmed to only record if activity is detected by its Motion Detection feature, whilst recorded video of any important incidents can be easily backed up via a USB output using an easy to operate search facility. Although offered at a budget price point, the compact SRD-450 does not compromise on quality and is equipped with a range of impressive features including the ability to record high quality CIF video in real time across all channels, with the options to record up to 4-CIF over selected channels, and single channel audio recording. With only five sets of buttons on the front panel and a simple to understand on screen display menu, the SRD-450 has been designed for ease of use. Remotely accessing video over the Internet, for example, is as simple as inputting the DVR's IP address onto a web browser and then entering a user name and password. The SRD-450 features a cool running design that negates the need for a fan resulting in completely silent operation, which makes the SRD-450 ideal for domestic applications where any noise might inconvenience the customer. As is the case with all Samsung professional security products, the SRD-450 is offered with full support services from Samsung Techwin Europe Ltd, including free system design, free technical support and a full three-year warranty.Add to Compare
Browse CCTV Digital Video Recorders (DVRs)
Digital video recorder (DVR) products updated recently
According to IHS Market, it is estimated that there are over 60 million security cameras in the United States, and other reports say these cameras capture more than four billion hours of footage per week. Over the last decade, IP camera technology has dominated the conversation as it has provided users with a broad offering of enhanced image quality and features. With a large percentage of existing security systems relying on analogue, many end users looking for high definition (HD) video quality have been forced to take on a complete system overhaul. Infrastructure overhaul for HD video To make the switch, customers would need to change everything, from cameras to hardware to wiring– not to mention the lengthy installation process that would ensue. IP cameras also require higher Internet speeds and more cloud space. Whether constrained by budget, bandwidth or storage, many end users have been unable to adopt this new video surveillance method.Thanks to technological advancements within the security industry, HD over Coax offers a viable solution for integrators and end users alike Thanks to technological advancements within the security industry, HD over Coax offers a viable solution for integrators and end users alike. By utilising the current Coaxial cables, this offering yields high definition video, while requiring minimal infrastructure changes and is an optimal surveillance choice for security customers. Plus, with new advancements and updates being made frequently to this technology, there is a solution for every security need. The enhanced alternative of HD over Coax has been warmly welcomed in the security industry, thanks to its simple solutions and ever-evolving features. Many new analogue HD cameras are “plug and play,” able to connect directly to existing Coaxial cables. This eliminates the need for a complete system change, creating cost-savings for the end user and an enhanced video quality offering. Easy solutions for HD video As a result, integrators can cost-effectively upgrade their customer’s surveillance solution while using their legacy infrastructure, making it an attractive option for end users and an easy sell for dealers. Latency in video is another common issue with network-based camera systems, where even the slightest delay in video surveillance can hinder security response HD over Coax cameras themselves are always expanding and evolving to meet a wide array of security needs. With the introduction of fisheye and multi-sensor cameras, users now have a multitude of coverage options, not to mention the introduction of 4K bringing resolution options to the same level as IP. Some newer technologies are even touting 4K cameras paired with 4K digital video recorders (DVRs) made specifically for analogue systems. Longer cables grant transmission for up to 1600 feet, double the distance of standard analogue solutions, and triple that of IP systems. This single cable is able to transmit both HD video and audio. Recently, broadcast quality audio over Coax has become available in limited models, a substantial improvement over older analogue technology, which was unable to transmit audio. Stopping video delay Latency in video is another common issue with network-based camera systems. Even the slightest delay in video surveillance can hinder security response. IP cameras are forced to compress and packetise their video for transmission. The outcome of this is a reduced number of images per video, which in turn causes delay. HD over Coax on the other hand, delivers an unlimited amount of HD images in real time, with smooth motion and impressive clarity. Additionally, the point-to-point transmission delivers uncompressed video free of lag. Another touted benefit is that, unlike IP networked cameras, analogue systems provide a more secure video transmission. With so much sensitive information housed on a businesses’ network, adding another point of network access through an IP camera can create concerns for cyber security risks. HD over Coax delivers an unlimited amount of HD images in real time, with smooth motion and impressive clarity Preventing network hacking With HD over Coax, the physical connections between the camera and DVR prevent network hacking. By keeping the video surveillance system offline, security professionals are able to direct their attention to the physical threats at hand, rather than having to focus on deterring cyber security risks. One of the primary difficulties of deploying HD video solutions is the fact that many older systems utilise a wide variety of HD standards and platforms. To make matters more complicated, after HD over Coax was brought to market, manufacturers raced to create their own version of this technology. Today, the most popular proprietary standards are HD-CVI, HD-TVI and AHD. However, integrators and customers found that attempting to manage multiple HD technologies proved to be near impossible.Integrators and customers found that attempting to manage multiple HD technologies proved to be near impossible Diversifying surveillance through one DVR To combat these issues, manufacturers have introduced products with more flexibility to their portfolios. One example of this is the penta-brid DVR which grants the ability to seamlessly integrate multiple technologies deployed across one application. This means that systems with diverse camera brands and technologies, such as a mix of HD-CVI, HD-TVI, AHD, analogue or IP, can be connected through one DVR. For many end users with legacy analogue systems, penta-brid DVRs give them greater freedom to choose between a variety of solutions, rather than being limited to one option. With video resolution increasing, the space needed to store the footage is similarly rising. Penta-brid technology has been able to adapt to these evolving needs, giving users ample storage space to house the HD and 4K surveillance video with some of the newest models including H.265 compression. HD casino surveillance made simple For casinos, HD images are critical for identifying unauthorised personnel and unlawful behaviours to create a safe environment for guests and staff While HD over Coax is beneficial to many end users and integrators, those in the casino and hospitality markets find it crucial. With a combination of high profile guests, large amounts of cash on hand, constant crowds and strict industry regulations, reliable video surveillance is a must. Deploying new IP systems comes at a stiff price. When looking to upgrade their video surveillance, casinos must also be mindful of the installation process. When moving to an IP-based system, ripping out old wires and replacing them with new is the standard practice. This practice can be both disruptive and costly, not to mention gaming regulations require casino activities be monitored at all times so a complete system shutdown would result in revenue loss. This cost can be hard to justify, especially when the current legacy analogue system remains in working condition with only the lower image resolution to date it. For these scenarios, the most cost-effective option is to leverage the legacy infrastructure, replace the existing cameras with new devices, and reap the benefits that HD video has to offer without any lapse in security. For casinos, HD images are critical for identifying unauthorised personnel and unlawful behaviours to create a safe environment for guests and staff. HD over Coax cameras now offer the same resolution as IP cameras with a plug and play approach, that cuts down on expense without sacrificing quality. For businesses and applications that are unable to adopt IP technology, whether it be cost or time prohibitive, HD over Coax now features most of the same benefits IP has to offer without breaking the bank. By providing clear images in real time, maximising existing infrastructure, and affording cyber security benefits, HD over Coax provides an attractive solution for many end users and integrators.
Dollars spent by video surveillance customers must go towards ensuring high-availability capture, storage and on-demand access to live and archived video. Reaching this goal mandates high-availability of independent components – camera, network, storage (edge, external), internet connectivity, display, all Video Management Software (VMS) components and an architecture that can take advantage of this. In this note, we focus on seeing our way through to a video surveillance architecture, that provides high availability storage, access to live and stored video content. Of all options available to store recorded video, edge recording is the only one that is unaffected by network failure Edge recording Of all options available to store recorded video, edge recording is the only one that is unaffected by network failure. This makes edge storage a must-have. But, this has some limitations at present: Edge storage capacity is limited. Edge media has a short lifetime, rated only for thousands of hours of continuous recording. Most cameras are not secure and physical damage to the camera could lead to catastrophic loss of edge stored content. As storage and compression technology evolve, the constraints imposed by (1) and (2) could go away. However, securing cameras will continue to be a barrier for most installations. Secure external storage It is thus imperative to also store video in secure external storage. Such an architecture uses edge storage to fill in content gaps created by network, external storage outages. As edge storage technology improves, larger gaps can be filled in, but one will always need external storage. By our definition, ‘external storage’ is a solution stack that includes storage media and all software (including VMS) that provide access to this storage. Access to live and archived video Access to live video can either be met by external storage or directly by the camera Every surveillance solution needs to provide access to live and archived video. Access to live video can either be met by external storage or (and) directly by the camera. All things being equal, having the camera directly provide live video access, is a higher-availability solution. There is dependence on fewer components in the chain. Solutions in the market use one of the above two approaches for access to live video. Due to limited capacity and low physical security of edge storage, it makes sense at present, to have external storage meet all requests for archive video. Thus, we are led to an architecture that has heavy dependence on external storage. Dual-recording For high-availability, external storage must be architected with redundancy. Ideally, independent components that make up external storage – storage media, associated hardware and software (including VMS components), should be individually redundant and have smart interconnectivity. However, solutions in the market rigidly tie these components together. Failure of a single component causes failure of external storage. For e.g. hardware failure of a server causes VMS component failure AND storage failure. DR provides a smart way to provide high-availability for external storage For these solutions in the market, high-availability is achieved by having additional external storage units that step-in during outages of primary units. If these additional units continuously duplicate primary units, access gaps are minimised, and archive access is un-affected during primary unit outages. This is the idea behind Dual-Recording (DR). To meet cost budgets, these additional units can be configured to store subsampled (framerate, resolution) video content. A small number of additional units can support concurrent outages of all primary units. A few-to-many redundancy. Rising need for dual-recording Most cameras cannot be physically secured, and video content produced by a camera must be stored externally. Many VMS solutions use external storage to service live video access requests. Edge storage limitations impose restrictions on edge archive access at present. So, external storage is used to service requests for archive access too. Thus, a surveillance system ends up being over-dependent on external storage. DR provides a smart way to provide high-availability for external storage. As edge storage improves, it will be able to service archive access requests. VMS software will need to evolve, to use this capability smartly.
Over the course of the past few months, I have discussed a myriad of topics, from Big Data, the Internet of Things and emerging video surveillance-use cases, to analytics, storage complexities and IT technologies like virtualisation and hyperconverged infrastructure (HCI). All of these trends have a significant effect on the security market, and in April they were highlighted in spades at ISC West. It’s great to talk about these trends but it’s far better to see how they are being leveraged in real-world applications. That’s really where we can all see the true value of new solutions and concepts. We’re lucky enough to work with some leading organisations that want others to benefit from their experience and I’m happy to have the opportunity to share two of these applications with you. Protecting educational facilities UCF has adopted advancements in technology, particularly video surveillance solutions, to help ensure stronger security on campus Educational institutions face an increasingly complex risk environment. Recent high-profile incidents emphasise these risks and magnify the vulnerabilities that educational facilities face. These incidents have led to more public demand for improved security solutions across campuses. The primary mission of these organisations is to deliver quality education to students, and they face the challenge of balancing between a highly secure facility and one that supports open interaction. The University of Central Florida is no different. This organisation, one of the largest universities in the country, has adopted advancements in technology, particularly video surveillance solutions, to help ensure stronger security on campus. Active shooter incidents In March 2013, UCF faced an active shooter situation in which a former student planned to pull the fire alarm in a residence hall and then attack his classmates as the building was evacuated. However, the shooter’s gun jammed, and as officers were closing in on the gunman, he took his own life. During the university’s response to the incident, accessibility to critical video data was a major issue. Educational institutions face an increasingly complex risk environment UCF had cameras in the area where the incident took place, but first responders had no way of viewing the footage without being at the physical location of the video recorder. At the time, UCF had a wide variety of standalone systems in place, including non-integrated video surveillance, access control and intrusion systems. As a result, there was no way to centralise video management, viewing and analysis. Upgrading from analogue systems Altogether, its security system consisted of older analogue platforms that were reaching end of life, 58 standalone servers, 12,000 access points and a wide variety of DVRs — all being managed in a siloed manner. UCF needed a solution that would allow officials to centralise system management, store video data more effectively and reliably, and enable the security team to deliver situational awareness to responders when needed. Security leaders sought a way to further modernise its security, surveillance, access control and IT infrastructure The university deployed an HCI solution, one that is optimised for demanding, data-intensive workloads like video surveillance. Using standard off-the-shelf server hardware, the system aggregates the storage and compute resources from multiple servers into a single unified pool that all cameras can access, which maximises performance and storage capacity utilisation. The platform also hosts the university’s video management solution, which serves as a centralised source to manage video and effectively protect its security data. Because of the growing demand for video across UCF's campuses — for both safety and business purposes — the HCI solution’s ability to eliminate the opportunity for data loss and easily scale were key components in its selection. Protecting air travel and airports In 2012, Charleston International Airport embarked on an ambitious upgrade project dubbed the Terminal Redevelopment and Improvement Program. The $200 million initiative was designed to modernise and expand the facility to meet increased passenger demand. While the aesthetics and amenities of the airport were under construction, security leaders sought a way to further modernise its security, surveillance, access control and IT infrastructure. The IT and security teams needed to address the challenges of their existing standalone server environment, which included siloed systems, management complexity and high administrative and equipment costs. Charleston International Airport embarked on an ambitious upgrade project dubbed the Terminal Redevelopment and Improvement Program Considering the high value of the airport’s video, security and IT data, it required a solution that could deliver reliable data protection, system resiliency and fault tolerance. The airport is required to store video for 30 days, but it seeks to expand its retention time to 60 days. Therefore, technology that can scale simply was key in the selection process. Storage system updates It also required a storage platform that could manage the demanding and write-intensive nature of its nearly 250 IP surveillance cameras — a challenging task for traditional video recorders. The airport deployed HCI appliances to better manage captured video data and expand its archive capability for video surveillance. Users rely on video to validate whether something did or did not happen - and this is essential in airports HCI surveillance solutions are designed to provide industry-leading resiliency. Even if multiple hardware failures occur, including an entire appliance, video management servers will remain online and recording, and any previously recorded video will continue to be protected and accessible. Reducing expenses and costs The solution also reduced total cost of operations by consolidating servers, storage and client workstations into one enterprise-class solution that is easily managed from a single user interface, without the need for specialised IT skills. These use cases demonstrate the value emerging technologies bring to these types of modern environments. And they show that solutions like HCI are no longer simply much-talked about technology trends. Video, IT and security data is critical to organisations of all types and they need to ensure their investment in capturing this data is protected. From a security standpoint, users rely on video to validate whether something did or did not happen. If that video data isn’t protected, they lose a very valuable investigative tool. That isn’t an option in today’s complex environment. That’s is why it is paramount to understand how new technologies can help expand current capabilities and evolve security operations. This can’t be left to chance.
