PTZ surveillance with March Networks
Product Profile

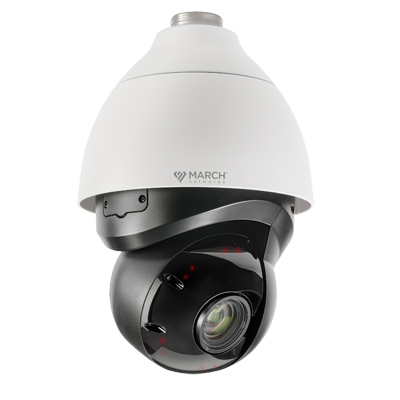

March Networks’ new ME3 Pendant IR PTZ camera delivers uncompromising security for large indoor and outdoor spaces, as well as essential features to ensure high reliability, clear image capture and storage efficiency.
Ideal for large-footprint environments such as parking lots, big box stores and transit stations, the camera incorporates electronic image stabilisation and HDR, so recorded video is always crisp. Universal Power over Ethernet (UPoE) ensures redundancy and zero downtime by switching to PoE when a camera loses power. And built-in PTZ auto-tracking uses motion detection to automatically track a person or object, keeping the image centred and in focus. Software updates are quick and easy to apply using the mass management feature available in Command Enterprise software, while PTZ-optimised motion histograms speed search capabilities.
The 3MP PTZ includes a 40x zoom lens to capture objects 25% further away than industry-standard PTZs, and IR LEDs for uniform illumination in total darkness at a distance of more than 650 feet/200 metres. It also incorporates a Low Bit Rate compression mode to improve bandwidth and storage efficiency by as much as 50% when the camera is in its home position.

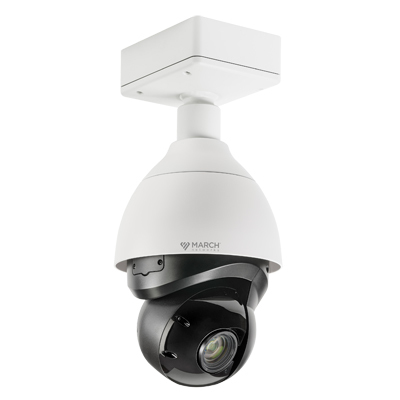

The ME3 Pendant IR PTZ is protected by a weather-proof enclosure, and generates an alert in the event someone attempts to obstruct or move the camera. It comes with a variety of mounting options, including a 1.5” NPT wall mount and short pendant mount, both with back boxes.
Technical Specification
| Make | March Networks |
|---|---|
| Manufacturer | March Networks Corporation |
| Category | CCTV>IP cameras |
| Model code | ME3 Pendant IR PTZ 40X |
| Chip Inch Size | 1/2.8 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 3 MP resolution |
| Digital (DSP) | Yes |
| Specialist Type | Infrared |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC, UPoE Power Consumption: 39 W |
| Motion Activated | Yes |
| Mount Type | Wall, Pendant |
| Picture Elements HxV | 2065 x 1533 |
| Network Properties |
Image Frame Rate: 30 fps Interface: RJ-45, 10/100Mbps Ethernet Network Protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, DHCP, PPPoE, UPnP, QoS, ONVIF-S |
| Back Light Compensation | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/10000s |
| Zoom | Yes |
| Compression Type | H.265, H.264, MJPEG |
| Physical Specifications |
Weight g: 3800 Dimensions mm: 309 x 207 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP66 Operating Humidity %: 10 ~ 90 |
| System Requirements | Web Browser: Internet Explorer (10+) |
| HD | Yes |
| Additional info |
|
Compare March Networks ME3 Pendant IR PTZ 40X with IP cameras from other manufacturers
