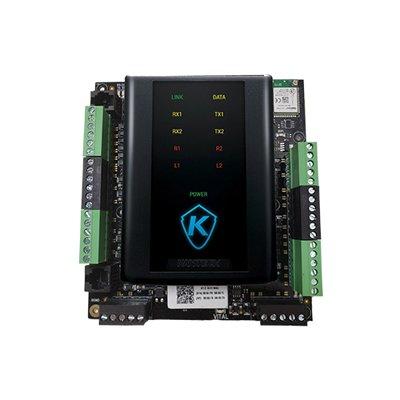

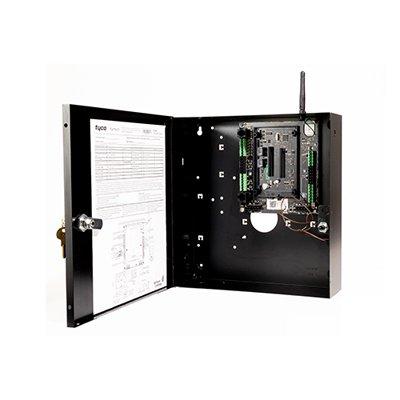

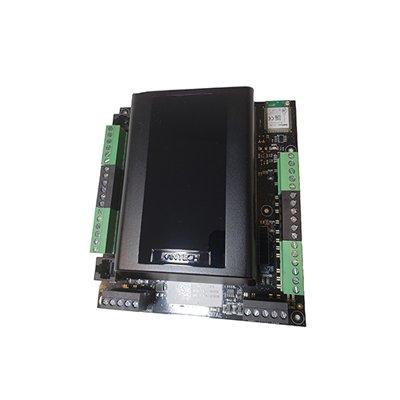

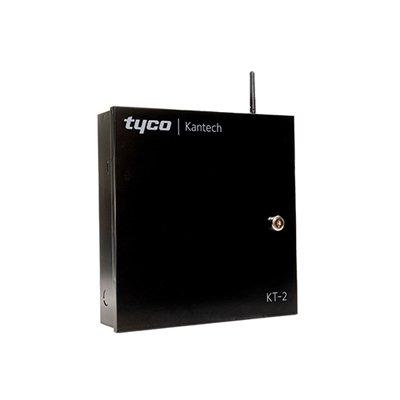

Kantech KT-2 Wi-Fi Ready Two-Door Controller

Product Profile

The Kantech KT-2 is a two-door controller that supports two readers, incorporates Wi-Fi connectivity and can be configured in two user-friendly operational modes. The KT-2 can be used with the powerful EntraPass Security Management Software to provide more advanced and fully integrated access control features such as Wi-Fi connection. The addition of the built-in Wi-Fi antenna reduces installation time and costs while providing an ideal solution for projects with infrastructure designs that would traditionally require extensive cabling. Alternatively, the KT-2 builds on the KT-1 by continuing to support Standalone Mode, offering basic two-door security functions without the need to purchase or connect to a security management software.

Read more

Technical Specification

Make Kantech
Manufacturer Kantech, Tyco International
Model code KT-2-M
Controller Type Standalone/Networkable
Max No. of Doors per Controller 2 doors/controller
No of Cardholders 2,000 (1,000 with image/ 1,000 without image) cardholders
Offline Capabilities Yes
Communication Type 1 x RS-232 with RJ-12, 2 x RS-485, 1 x Ethernet 10/100 Base-T with RJ-45, WiFi
Universal / Wiegand Reader Interface Yes
Electrical Specifications Voltage: 11.3 ~ 14 V DC
Physical Specifications Dimensions mm: 287 x 297 x 78.7
Weight g: 2160
Environmental Specifications Operating Temp oC: 0 ~ 49 C (32 ~ 120 F)
Operating Humidity %: 85
Additional info
  • Configurable in two different modes: Provides advanced access control features when used with EntraPass Security Management Software (using an Ethernet, RS-485, or WiFi connection) or basic door security in Standalone Mode*
  • The built-in Wi-Fi antenna helps reduce installation costs when used with EntraPass
  • Single capacitive touch button for fast controller enrollment (EntraPass Security Management Software)
  • Flexible power input – Power over Ethernet (PoE), PoE+ or 12 VDC
  • End-to-end encryption using Kantech’s ioSmart reader & smart card
  • Compatible with EntraPass Security Management Software v8.40 or higher
Download PDF version Download PDF version
