Technical Specification

Features:
  • Make: Honeywell Security
  • Model code: 8IR100
  • Series: Activ8 Series
  • PIR Detectors: Yes
  • Dual/ Quad Technology: Quad Technology Detectors
Read more
Additional info:

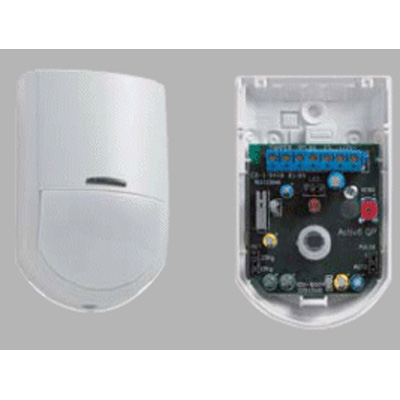

Activ8 PIR.

Read more
Make Honeywell Security
Manufacturer Honeywell
Model code 8IR100
Series Activ8 Series
PIR Detectors Yes
Dual/ Quad Technology Quad Technology Detectors
Coverage/ Range m 15 x 15
Angle of Detection o 89.4
Pet Tolerance Yes
Sealed Optics Yes
Anti-Masking Yes
Selectable Pulse Count Yes
Indoor/Outdoor Indoor
Wall/Ceiling Mount Corner/Wall
Electrical Specifications Power Supply: 7.8 ~ 16 V DC
Physical Specifications Dimensions mm: 90 x 59 x 37
Environmental Specifications Operating Temp oC: -20 ~ +60
Power Consumption 8 mA
Additional info

Activ8 PIR.
