Honeywell Security DT-500 Intruder detector

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

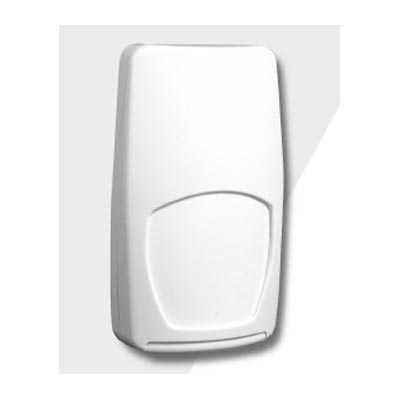

Honeywell Security DT-500 Intruder detector

Features:

Make: Honeywell Security
Model code: DT-500
PIR Detectors: Yes
Dual/ Quad Technology: Dual Technology Detectors
Coverage/ Range m: 11 x 9

Additional info:

The DT-500 provides multiple and large animal immunity up to 45 kg, yet still accurately detects humans throughout its field-of-view. Uniform Sensitivity Optics lens provides the same sensitivity at the edge of the pattern as exists directly in front of the sensor. An on-board microcontroller with Analog-to-Digital (A- to-D) conversion of incoming signals accurately recognizes the unique signal a human makes when crossing the pattern, and alarms only if this signal matches.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Honeywell Security
Manufacturer	Honeywell
Category	Intruder Alarms>Intruder detectors
Model code	DT-500
PIR Detectors	Yes
Dual/ Quad Technology	Dual Technology Detectors
Coverage/ Range m	11 x 9
Microwave	Yes
Pet Tolerance	Yes
Power Consumption	35
Temperature Compensation	Yes
White Light Filter	Yes
Wall/Ceiling Mount	Wall / Corner
Electrical Specifications	Power Supply: 10 ~ 14.5
Physical Specifications	Dimensions mm: 130 x 70 x 40
Environmental Specifications	Operating Temp ^oC: 0 ~ +49
Additional info	The DT-500 provides multiple and large animal immunity up to 45 kg, yet still accurately detects humans throughout its field-of-view. Uniform Sensitivity Optics lens provides the same sensitivity at the edge of the pattern as exists directly in front of the sensor. An on-board microcontroller with Analog-to-Digital (A- to-D) conversion of incoming signals accurately recognizes the unique signal a human makes when crossing the pattern, and alarms only if this signal matches.
