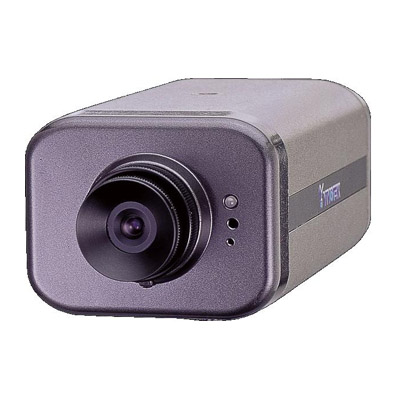

Vivotek IP2112/IP2122 colour/monochrome network camera with 1/4'' chip
Technical Specification
Features:
- Make: VIVOTEK
- Model code: IP2112/IP2122
- Series: P/T/Z Series
- Chip Inch Size: 1/4 inch
- Colour Type: Colour / Monochrome
| Make | VIVOTEK |
|---|---|
| Manufacturer | VIVOTEK |
| Category | CCTV>IP cameras |
| Model code | IP2112/IP2122 |
| Chip Inch Size | 1/4 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 704 x 576 resolution |
| Sensitivity Lux | 1.0 @ F2.0 |
| Lens Mount | CS mount |
| Electrical Specifications |
Voltage: 12 VDC, 100 - 240 VAC Power Consumption: 5.4 W |
| Network Properties |
Image Frame Rate: 30 fps Inclusion DVR/ Web Server: Yes Interface: 10/100 BaseT Ethernet Network Protocols: TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Signal Mode | PAL, NTSC |
| Compression Type | MJPEG |
| Physical Specifications |
Weight g: 380 Dimensions mm: 168.5 x 73.6 x 57.3 |
| Environmental Specifications |
Operating Temperature oC: 0 ~ 50 Operating Humidity %: 0 ~ 95 |
| System Requirements | Web Browser: Internet Explorer 4.X |
