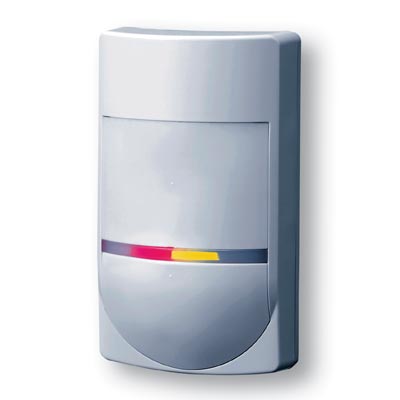

OPTEX launches SEQUAD sequential confirmation detector

Product Profile

Please note: this is a discontinued product.

Go to Replacement product

OPTEX launches SEQUAD sequential confirmation detector

SEQUAD offers a completely new concept in PIR Detection:

Two PIR detectors inside one housing
Two non-overlapping coverage patterns
Two independent alarm outputs
Conforms to current regulations on sequentially confirmed activations
Proven PIR technology means false alarms are minimised
'One unit - one cable' makes installation easy

The new SEQUAD contains two PIR detectors with two independent alarm outputs inside one housing. Mounted in the corner of a room, one detector provides coverage along each of the two walls, generating an alarm if a door or window is opened. Without overlap, the other covers the central area of the room providing a sequentially confirmed activation if an intruder then enters the room.

SEQUAD models available:

SQ-40 - 12m x 12m coverage
SQ-60 - 18m x 18m coverage

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Technical Specification

Make	OPTEX
Manufacturer	OPTEX
Category	Intruder Alarms>Intruder detectors
Model code	SQ_40
PIR Detectors	Yes
Dual/ Quad Technology	Quad Technology Detectors
Infra Red Beams	Yes
Coverage/ Range m	12 x 12
Sealed Optics	Yes
Mount Type	Surface
Vertical Coverage	12 x 12
Wall/Ceiling Mount	Wall
Electrical Specifications	Power Supply: 12
Environmental Specifications	Operating Temp ^oC: -20 ~ +50
