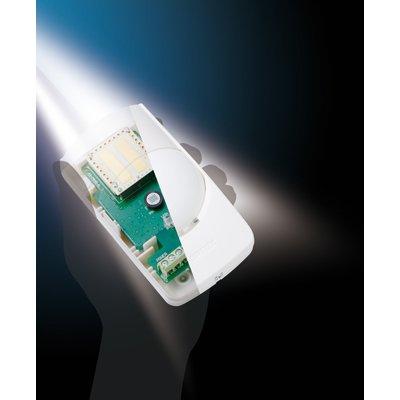

Optex FMX-ST high performance PIR indoor presence and intrusion sensor

Technical Specification

Features:
  • Make: Optex
  • Model code: FMX-ST
  • PIR Detectors: Yes
  • Dual/ Quad Technology: Dual Technology Detectors
  • Infra Red Beams: Yes
Read more
Additional info:

Pet tolerance Digital Quad Zone logic Advanced sealed optics Double conductive filter

Read more
Make Optex
Manufacturer Optex
Model code FMX-ST
PIR Detectors Yes
Dual/ Quad Technology Dual Technology Detectors
Infra Red Beams Yes
Coverage/ Range m 15 x 15
Pet Tolerance Yes
Dual Element Sensor Yes
Quad Element Sensor Yes
Temperature Compensation Yes
Sealed Optics Yes
Indoor/Outdoor Indoor, Outdoor
Wall/Ceiling Mount wall, ceiling
Electrical Specifications Power Supply: 9.5 ~ 16 V DC
Physical Specifications Dimensions mm: 112 x 61 x 50
Environmental Specifications Operating Temp oC: -20 ~ +50 C (-4 ~ +122 F)
Additional info
  • Pet tolerance
  • Digital Quad Zone logic
  • Advanced sealed optics
  • Double conductive filter
