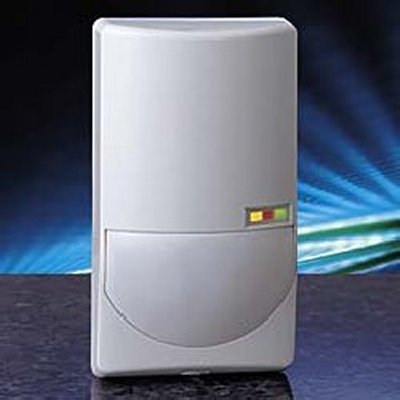

Optex PIR/Microwave Detector

Product Profile

Please note: this is a discontinued product.

Go to Replacement product

The DX-60 reduces one of the biggest weak points of microwave detection, that is the penetration of walls and unwanted detection of movement outside the coverage area. In addition, the detection area has uniform sensitivity which minimizes false activation's caused by spot movement in the detection area, i.e. small animals. The DX-60 is a new dimension in microwave technology. Advancements include Patent Pending "MICROWAVE AREA SHAPING TECHNOLOGY" and PIR technology with New Spherical Lens to improve QUAD ZONE LOGIC in a compact housing. Mechanical design of this product will offer easy and trouble-free installation.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Technical Specification

Make	OPTEX
Manufacturer	OPTEX
Category	Intruder Alarms>Intruder detectors
Model code	DX-60E
PIR Detectors	Yes
Dual/ Quad Technology	Dual Technology Detectors
Coverage/ Range m	18 x 18
Angle of Detection ^o	85
Microwave	Yes
Power Consumption	12~35
Quad Element Sensor	Yes
Radius m	18
Selectable Pulse Count	Yes
Indoor/Outdoor	Indoor
Wall/Ceiling Mount	Wall
Electrical Specifications	Power Supply: 9-18
Physical Specifications	Dimensions mm: 125 x 70 x 49
Environmental Specifications	Operating Temp ^oC: -10~+50
Additional info	Mounting Height 1.5m ~ 2.4m. Detectable Speed 1 ~ 5 ft. / sec. (.3 ~ 1.5m / sec.). Available with trouble relay output, remote LED control and latching with positive/negative control voltage (DX-60PLUS-E).
