Technical Specification

Features:

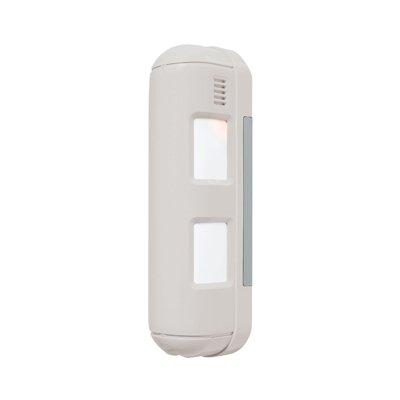

  • Make: Optex
  • Model code: BX-80N
  • Series: BX Series
  • PIR Detectors: Yes
  • Coverage/ Range m: 24
Read more
Additional info:

Mounting Height 0.8 ~ 1.2m.IP55. Detectable Speed 0.3 ~ 1.5m/s. Detection Zones 4 Zones ( 2 on each side). Weight 400g. Range: 24m (12m each side).

Read more
Make Optex
Manufacturer Optex
Model code BX-80N
Series BX Series
PIR Detectors Yes
Coverage/ Range m 24
Angle of Detection o 0~3
Radius m 12
Indoor/Outdoor Outdoor
Wall/Ceiling Mount Wall Mount
Electrical Specifications Power Supply: 10~28
Physical Specifications Dimensions mm: 233 x 55 x 69
Environmental Specifications Operating Temp oC: -20~ +50
Power Consumption 28
Additional info Mounting Height 0.8 ~ 1.2m.IP55. Detectable Speed 0.3 ~ 1.5m/s. Detection Zones 4 Zones ( 2 on each side). Weight 400g. Range: 24m (12m each side).
Download PDF version
