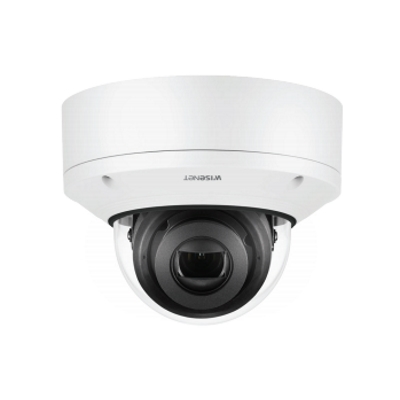

Hanwha Techwin America XND-6081V 2MP network dome camera

Technical Specification

Features:
  • Make: Hanwha Techwin
  • Model code: XND-6081V
  • Series: WISENET X SERIES
  • Chip Inch Size: 1/3 inch
  • Colour Type: Colour / Monochrome
Read more
Additional info:

2 Megapixel resolution 0.015Lux@F1.4 (Colour), 0.0015Lux@F1.4 (B/W) Day & Night (ICR), WDR (150dB) Hallway View, WiseStreamII Support Video & Audio analytics, Audio playback DIS and shock detection with built-in gyro sensor Modular structure, PoE, 12VDC IP52, IK10

Read more
Make Hanwha Techwin
Manufacturer Hanwha Techwin Europe
Model code XND-6081V
Series WISENET X SERIES
Chip Inch Size 1/3 inch
Colour Type Colour / Monochrome
Resolution TVL 2 MP
Megapixel Yes
Dome Type PTZ
Sensitivity lux 0.0015 ~ 0.015 lux
Digital (DSP) Yes
Indoor/Outdoor Indoor
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 7.0 W, 5.40 W
Focal length 2.8 ~ 12mm
Compression H.265/H.264 : Main / Baseline / High, MJPEG
Back Light Compensation Yes
White Balance Yes
Zoom Ratio 4.3x
Network Properties Interface: RJ-45, 10/100BASE-T
Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Image Frame Rate: H.265/H.264: 60fps / 50fps, MJPEG: 30fps / 25fps
Physical Specifications Dimensions mm: 160 x 125
Weight g: 1450
Environmental Specifications Operating Temp oC: -25 ~ +60 C (-13 ~ +140 F)
Operating Humidity %: 0 ~ 90
Protection: IP52, IK10
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome, MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only)
Additional info
  • 2 Megapixel resolution
  • 0.015Lux@F1.4 (Colour), 0.0015Lux@F1.4 (B/W)
  • Day & Night (ICR), WDR (150dB)
  • Hallway View, WiseStreamII Support
  • Video & Audio analytics, Audio playback
  • DIS and shock detection with built-in gyro sensor
  • Modular structure, PoE, 12VDC
  • IP52, IK10
Download PDF version Download PDF version
