Everfocus CCTV Dome Cameras(30)
1/3 inch, Colour, 520 TVL resolution, 0.5 lux, Variable Focus, Indoor/Outdoor, Ceiling mount, 24 V AC, 3.8 ~ 9.5, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, > 48, internal / line-lock, 1 Vp-p, 15 W, 130 x 130 x 99, 1700, -40 ~ +50, IP 66Add to Compare
1/4 inch, Colour / Monochrome, 570 TVL resolution, Continuous Rotation, 0.05 lux, 0.1 ~ 120 o/ sec pan speed, Indoor/Outdoor, 0.1 ~ 60 o/ sec tilt speed, Wall mount, 24 V AC, 3.3 ~ 99, 360 pan, 180 tilt, 128, Back Light Compensation, Auto Gain Control, White Balance, 1/1 ~ 1/10,000, > 50, Internal, PAL, 1.0 Vp-p, 75 Ohms, RS-485, 18 W, 310 (Dia) x 220, 5.6 kg, -40 ~ +40, 0 ~ 90, IP66Add to Compare

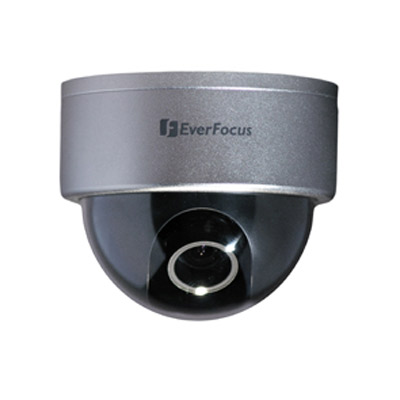

EverFocus Electronics introduces the new 1/3" ED 550 T vandal-proof day/night dome camera. Through integrated DNR (dynamic noise reduction), ED 550 T offers a considerably reduced picture noise and is capable of significantly reducing storage capacity (stored images require up to 6x less capacity than cameras without DNR). Everfocus ED 550 T comes in a stylish, vandal-proof indoor housing and is equipped with advanced 16-bit digital signal processor (DSP) and 4 adjustable privacy zones. On-screen programming is supported by the built-in setup joystick and an additional video service cable connector (cable included). ED 550 T provides 530 TV lines (b/w mode: 560 TV lines) horizontal resolution and offers clear and crisp images even under low-light conditions (0,002 lux - sens-up x128). With the automatically swivelling IR cut filter, controlled by internal light sensor, ED 550 T provides high infrared sensitivity. A suitable wall mount bracket (ED WMA) is available (optional). Key features: vandal-proof indoor housing super-high resolution technology (530/560 TV lines) built-in DNR (dynamic noise reduction) day/night function with automatically swivelling IR cut filter advanced 16-bit digital signal processor (DSP) on-screen programming 4 adjustable privacy zones high infrared sensitivity connector for service cable (cable included) optional wall bracketAdd to Compare
The day/night speed dome cameras EPTZ 3600 (36x optical zoom + 12x digital zoom) and EPTZ 2700 (27x optical zoom + 10x digital zoom) are available as IP66 outdoor or indoor model and offer high resolution technology up to 570 TV lines (b/w mode - EPTZ 3600). Further features include various day/night switching options (manual, automatic or through external contact via an alarm input), automatic exposure control, wide dynamic range and an integrated digital slow shutter (DSS). Additionally, the 36x models EPTZ 3600 (outdoor) and EPTZ 3600 I (indoor) offer 8 freely adjustable privacy zones. The 4 alarm inputs can individually be linked to a pre-defined position (192 programmable) or even to a tour (16 programmable) or pattern (4 programmable). Alarm reactions are forwarded through 2 alarm outputs. Intelligent auto resume functions for inactivity and power-up round off the excellent functionality.Several mounting adaptors for wall, corner, pole or ceiling installation are optionally provided. The range of accessories is completed by the IP66 connector box EPTZ PBOX with dual power input, a universal mounting adaptor for additional equipment as well as an optional 110/230 VAC to 12 VDC converter and an optional mounting adaptor for pole or corner mount.For the control of the new EPTZ series' domes, the multi-function keyboard EKB 500 is available featuring two independent RS-485 communication ports with selectable baud rate, OSD access to the connected devices and 3D joystick control of PTZ functions.Add to Compare
1/3 inch, Colour / Monochrome, 560 TVL resolution, 0.002 lux, Indoor, Digital (DSP), Ceiling, Wall mount, 12 V DC / 24 V AC, 2.9 ~ 10, Back Light Compensation, Auto Gain Control, White Balance, > 50, Internal, Built-in IR LED, BNC VBS, 1,0 Vp-p, 75 Ohm, 310 mA / 300 mA, 123 x 1078, 740, -10 ~ +50, Vandal ResistantAdd to Compare
1/3 inch, Monochrome, 480 TVL resolution, 0.008 @ F1.2 lux, Variable Focus, Indoor/Outdoor, Ceiling mount, 24 V AC, Back Light Compensation, Auto Gain Control, White Balance, 48, 6 W, 130 x 130 x 99, 1,700, -40 ~ +50, IP66Add to Compare

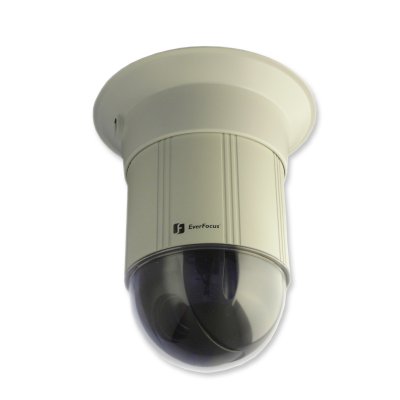

Next to 10x optical (+10x digital) autofocus zoom, the 10x day/night indoor speed dome camera EPTZ 100 offers enhanced sensitivity with 128x digital slow shutter. An automatic IR cut filter controls the day/night operation. A comprehensive range of accessories for various mounting options is also available.Main features:10x optical (3,8~38 mm) and 10x digital autofocus zoom high resolution - 520 TV lines (colour mode) / 570 TV lines (b/w mode)High-speed pan/tilt up to 240° / s360° endless pan Digital noise reduction Day/night operation with automatic IR cut filter Enhanced sensitivity with 128x digital slow shutter Privacy masking with 4 independent zones RS-485 communication with EverFocus, Pelco-D and Pelco-P protocol 4x5 minutes pattern (programmed camera movement)3 alarm inputs, 1 alarm output relay Adaptor for ceiling surface mount and recessed ceiling mount includedSmall dimensions - only 114 mm diameter Easy installation with plug&latch technology4x10 minutes recorded pattern tourAdd to Compare
1/4 inch, Colour / Monochrome, 480 TVL resolution, 0.1 @ F1.6 lux, Indoor, Wall mount, 24 V AC, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50, 1 Vp-p (sync. negative), BNC, 14 W, 160 x 220, -40 ~ +40, 0 ~ 90, IP66Add to Compare
1/3 inch, Colour, 520 TVL resolution, Variable Focus, 0.1 lux, 12 V DC, 24 V AC, 3.6 ~ 9.0, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, 48, Internal / Line-lock, PAL, 1 Vp-p composite, 5 W, 130 x 130 x 99, 1,700, -40 ~ +50, IP66Add to Compare
1/3 inch, Colour / Monochrome, 560 TVL resolution, 0.002 @ F1.2 lux, Variable Focus, Outdoor, Ceiling, Wall mount, 12 V DC, 24 V AC, 2.8 ~ 10, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, 52, Internal / Line lock, BNC, 1,0 Vp-p, 75 Ohm, x32, 3 W, 123 x 108, 740, -10 ~ +50, IP66Add to Compare
1/3 inch, Colour / Monochrome, 520 TVL resolution, 0.0 lux, Variable Focus, Surface mount, 12 V DC / 24 V AC, 2.8 ~ 10, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100.000, 48, Internal, Built-in IR LED, 1 Vp-p composite, 6.5 W, 140 x 128, 660, 0 ~ 40Add to Compare
1/3 inch, True Day / Night, 1920 x 1080 TVL resolution, HD, 0.0 lux, Variable Focus, Indoor, Surface mount, 12 V DC, 24 V AC, 3.3 ~ 12, Back Light Compensation, Auto Gain Control, White Balance, 1/60(1/50) ~ 1/8000, 45, NTSC, PAL, Built-in IR LED, 1 Vpp, 11.3 W, 140 x 130, 658, 0 ~ 40, 20 ~ 80, Vandal ResistantAdd to Compare
1/3 inch, True Day / Night, 1920 x 1080 TVL resolution, HD, 0.5 @ F1.4 lux, Static, Outdoor, 12 V DC, 24 V AC, 3.3 ~ 12, Back Light Compensation, Auto Gain Control, White Balance, 1/60(1/50) ~ 1/8000, 45, NTSC, PAL, Built-in IR LED, 1 Vpp, 5.5 W, 123 x 108, 740, -10 ~ +50, IP66Add to Compare
1/3 inch, True Day / Night, 1920x1080 TVL resolution, HD, Static, 0 lux, Outdoor, Surface mount, 12 VDC, Back Light Compensation, Auto Gain Control, White Balance, 50, PAL / NTSC, Built-in IR LED, 800 mA, 150.9 x 123.44, 940, 0 ~ +50, IP66Add to Compare
1/3 inch, True Day / Night, 1920 x 1080 TVL resolution, HD, PTZ, 0.1 lux, 360 o/ sec pan speed, Outdoor, 180 o/ sec tilt speed, Wall mount, 24 V AC, Back Light Compensation, Auto Gain Control, White Balance, 50, PAL / NTSC, Built-in IR LED, HDcctv, Full Time SD, x12 (optical), x10 (digital), 850 mA, 2.2 kg, -40 ~ +50, IP66Add to Compare
1/4 inch, Monochrome, 470 TVL resolution, 0.7 lux, Continuous Rotation, 120 o/ sec pan speed, 60 o/ sec tilt speed, 24 V AC, 4.1, 360 pan, 90 tilt, 192, Back Light Compensation, Auto Gain Control, White Balance, 1/1 ~ 1/10,000, > 50, Internal, 1 Vp-p, 18 W, 310 x 220, 3200, 0 ~ +40, 0 ~ 90Add to Compare
1/3 inch, Colour, 480 TVL resolution, 1.0 lux, Variable Focus, Ceiling mount, 12 V DC / 24 V AC, 4 ~ 9, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, > 48, Internal, PAL, 1 Vp-p composite PAL, < 5 W, 130 x 130 x 99, 1000, -10 ~ +50, IP66Add to Compare
1/4 inch, Colour, 470 TVL resolution, 0.7 lux, 120 o/ sec pan speed, 60 o/ sec tilt speed, 24 V AC, 4.1, 90 tilt, 360 pan, 192, Back Light Compensation, Auto Gain Control, White Balance, 1/1 ~ 1/10,000, > 50, Internal, 1 Vp-p, 18 W, 310 x 220, 3,200, -40 ~ +40, 0 ~ 90, IP66Add to Compare
1/3 inch, Colour, 520 TVL resolution, 1.0 lux, Variable Focus, 12 V DC / 24 V AC, 4 ~ 9, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, 48, Internal, PAL, 1 Vp-p composite, < 5 W, 130 x 130 x 99, 1000, -10 ~ +50, IP66Add to Compare
1/3 inch, Colour, 520 TVL resolution, 0.4 @ F1.2 lux, Variable Focus, 12 V DC / 24 V AC, 4 ~ 9, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, 48, Internal, PAL, 1 Vp-p composite PAL, BNC, 300 mA, 135 x 112, 460Add to Compare
1/4 inch, Colour / Monochrome, 530 TVL resolution, 0.05 lux, 0.1 ~ 120 o/ sec pan speed, Outdoor, 0.1 ~ 60 o/ sec tilt speed, Digital (DSP), Wall mount, 24 V AC, 128, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50, Internal, PAL, 1.0 Vp-p, 75 Ohms, 14 W, 210 x 250, -40 ~ +40, 0 ~ 90, IP66Add to Compare
1/4 inch, Colour / Monochrome, 480 TVL resolution, 0.1 @ F1.6 lux, Outdoor, Wall mount, 24 V AC, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50, 1 Vp-p (sync. negative), BNC, 14 W, 210 x 250, -40 ~ +40, 0 ~ 90, IP66Add to Compare

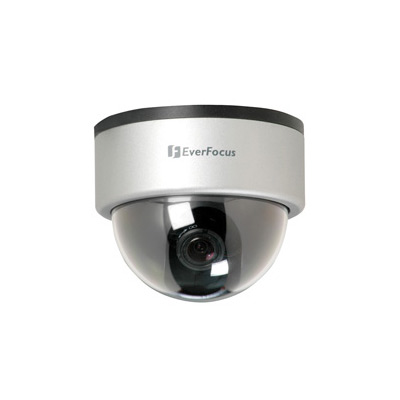

As part of the NeVio IP product family, the EDN 850 H provides H.264, MPEG-4 and MJPEG compression for multi-streaming capability. The 4 independent video streams offer different resolutions and compression formats, e.g. H.264 compression format for optimising bandwidth and storage requirement without sacrificing the video quality. EDN 850 H by EverFocus is equipped with a 1/3" SONY Super HAD colour CCD sensor with PoleStar solution pickup device achieving a horizontal resolution of 560 TV lines. With the integrated DSS digital slow shutter, the camera offers up to 0,002 lux sensitivity. Local alarm video storage is obtained through the built-in SD/SDHC card slot. The two-way audio function allows the interactive audio transmission between camera and monitoring site. Further features include automatically swiveling IR cut filter, local alarm input and output with various event trigger and reaction options, pre-alarm recording, integrated motion detection as well as alarm e-mail and network alarm function. EDN 850 H comes with a pre-installed 2,8 ~10 mm DC varifocal lens. The IP66 vandal-proof outdoor housing allows the camera to be installed in the most demanding environments with temperatures ranging from -10°C up to +50°C. With integrated PoE (Power over Ethernet), EDN 850 H can easily be installed in existing network surroundings. An optional wall mount bracket (ED WMA) is also available for facile mounting of the camera.Further EDN 850 H features include:Automatically swiveling IR cut filterLocal alarm input and output with various event trigger and reaction optionsPre-alarm recordingIntegrated motion detectionAlarm e-mail and network alarm functionHigh resolution stream: up to 704 x 576 pixelIntegrated 2.8 ~ 10 mm DC varifocal lensVandal-proof metal IP66 outdoor housingPoE (Power over Ethernet) supportedOptional wall bracket (ED WMA)Add to Compare
