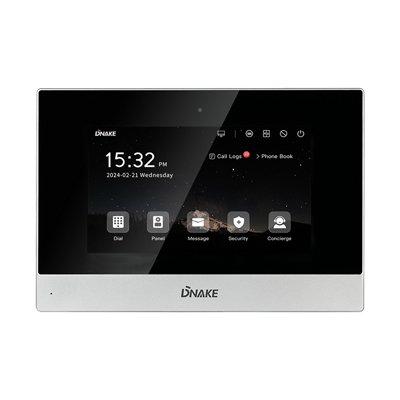

DNAKE E215-2 2-wire 7” Indoor Monitor

Technical Specification

Features:

Make: DNAKE
Model code: E215-2
Type of Kit/ System: Video & Audio
Mount Type: Surface Mount
Panel Material: Front Panel: Plastic

Additional info:

7” capacitive touch screen, 1024 x 600 Optional Wi-Fi HD quality audio and video communication 8-ch alarm input, 1xRS485 Powered by 2-wire Support monitoring 8 IP cameras TF card supported Quick and simple configuration Easy to maintain

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Access Control>Audio, video or keypad entry
Model code	E215-2
Type of Kit/ System	Video & Audio
Mount Type	Surface Mount
Panel Material	Front Panel: Plastic
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Electrical Specifications	Voltage: 2-wire supply
Physical Specifications	Dimensions mm: 221.4 x 151.4 x 16.5
Additional info	7” capacitive touch screen, 1024 x 600 Optional Wi-Fi HD quality audio and video communication 8-ch alarm input, 1xRS485 Powered by 2-wire Support monitoring 8 IP cameras TF card supported Quick and simple configuration Easy to maintain
