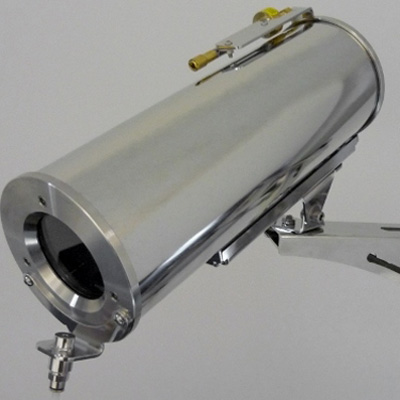

129AC – Tecnovideo's innovative NEW Air Cooled stainless steel camera housing
129AC – Tecnovideo's innovative NEW Air Cooled stainless steel camera housing

The innovative 129AC Air Cooled camera housing perfectly fits the gap between very hot installations which require a liquid cooled camera housing and standard installations which don't need any cooling system. The enclosure is entirely manufactured in AISI316L stainless steel, making the 129AC the best solution in hot and harsh environments, where standard aluminium/plastic camera housings would be rapidly damaged by heat and corrosive agents, especially in industrial indoor installations. The 129AC is equipped with: a Vortex cooling tube installed on the back (which blows cold air inside the housing) three exhausting check valves installed on the front cover an air nozzle to cool down and, at the same time, keep clean the glass from dirt and dust. The Vortex tube output can be adjusted according the needs: an higher flow with less cool air or a lower flow with cooler air. The Tecnovideo ABFL-01 Air Filtering Battery is recommended to grant clean air to the front window as well as to the Vortex tube, filtering water and oil particles. Different models are available: 360 mm and 460 mm length, with 70 mm usable diameter front window, both for visible light cameras (Borosilicate window) and thermal imagining cameras (Germanium window). A full range of mounting accessories is available to meet every installation need (wall mount bracket, pole mount adaptor, corner mount adaptor). For more information, please visit the product page on Tecnovideo website: www.tecnovideocctv.com/air_cooled_camera_housing_129_ac.php.

Add to Compare

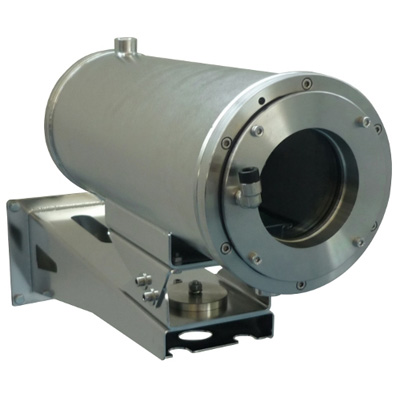

Tecnovideo presents 129LC series: the new medium size stainless steel liquid cooled camera housings
Tecnovideo presents 129LC series: the new medium size stainless steel liquid cooled camera housings

Liquid cooled camera housings are required for installations in very hot environments. When it comes to stand with very high temperatures and severe ambient conditions, like in hot industrial plants, Tecnovideo LC (Liquid Cooled) series camera housings are the most suitable solution. The housing main body is made up by two stainless steel tubes closed at their ends, forming a special chamber that allows the water or any other liquid to flow and cool down the housing. The front flange is designed to allow compressed air to be distributed all around the window to cool it down and keep it clean from dirty and dust. It's an essential protection when the housing is located in foundries, near oven or dusty and dirty hot places. The compressed air can be filtered using the ABFL-01 filtering battery, available as optional. Tecnovideo LC series comprises 129LC, for small-medium size cameras/lenses, and 168LC series for medium-large cameras/lenses, both completely constructed in AISI316L stainless steel. Both series are available for visible and for IR thermal imaging cameras. Borosilicate glass (Borofloat) front windows, with high chemical resistance and low thermal expansion, are the best solution for visible light cameras. Germanium window, with special diamond like coating (DLC), recommended for environmental temperature not higher than 100° C, and Zinc Selenide window for higher temperatures, are both available for applications using IR thermal imaging cameras. Upon request are available sapphire windows for MWIR (mid-wavelength infrared) range (3 - 5 μm). For further information, please visit the LC Series page.

Add to Compare
Tecnovideo explosion proof EX129 Series fixed camera stations
Tecnovideo explosion proof EX129 Series fixed camera stations

Tecnovideo presents the EX129 Series, a full range of compact stainless steel fixed camera station designed for Hazardous Area applications. It is not common for explosion proof camera stations to accommodate Customer specified cameras and/or other custom accessories. Tecnovideo fills this gap providing a complete range of fixed camera stations in which many different camera models can be installed. In case the Customer has no particular need, the EX129 camera stations are factory equipped with the latest generation zoom module day/night and thermal imaging cameras. The camera stations are entirely manufactured in electro-polished AISI316L stainless steel. This ensures the best durability and corrosion resistance in harsh environments. The following models are available: EX129: fixed camera station with sunshield and heater for day/night cameras. EX129WW: fixed camera station with sunshield, heater and integrated wash wiper for day/night cameras. EX129IR: fixed camera station with sunshield, heater and germanium front window for thermal imaging cameras. Each model of the camera station is available in 2 lengths: a compact version (250 mm long) and a longer version (500 mm long) to accommodate all the required equipment. The sunshield protects the housing from heat and dirt, while the heater demoisturises the housing front window if needed. Each EX129 Series fixed camera station is designed for an easy installation and for a low maintenance service. These explosion protected camera stations are the best solution for: Oil & Gas pipelines; Tankers; Refineries; Off-shore platforms; Monitoring of industrial processes; Chemical plants; Installations in extreme environments. The units are suitable for zone 1, 2, 21 and 22 according to Atex and IECEx certifications: II 2 G Ex d op pr IIC T6 Tamb-40°C to +55° C II 2 D Ex tb IIIC T85°C Db IP66/IP67). A variable speed Pan&Tilt unit is available to position the housing. A more featured PTZ camera station range of products is also available. Even in those PTZ camera stations it is possible to accommodate customer specified cameras and accessories. Washing systems and mounting brackets entirely made in AISI316L stainless steel are available.

Add to Compare
