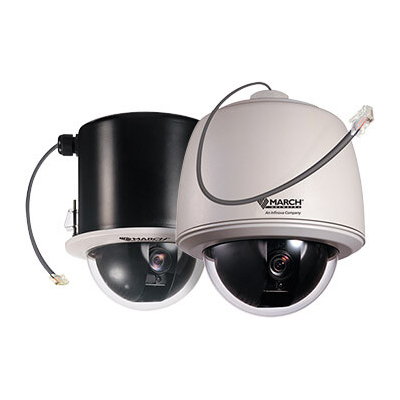

March Networks MegaPX IP PTZ Dome (Indoor pendant) with 2MP resolution

Technical Specification

Features:
  • Make: March Networks
  • Model code: MegaPX IP PTZ Dome (Indoor pendant)
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 2 MP
Read more
Additional info:

2MP PTZ Domes for indoor and outdoor use 20X or 30X optical zoom Wide Dynamic Range Auto-zoom Built-in heaters

Read more
Make March Networks
Manufacturer March Networks Corporation
Model code MegaPX IP PTZ Dome (Indoor pendant)
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 2 MP
Megapixel Yes
Dome Type PTZ
Sensitivity lux 0.005 ~ 0.5
Pan Speed o/ sec 0.1 ~ 250
Indoor/Outdoor Indoor
Digital (DSP) Yes
Tilt Speed o/ sec 0.1 ~ 90
Mount Type Pendant
Electrical Specifications Voltage: 12 V DC / 24 V AC
Power Consumption: 20 ~ 35 W
Presets 1 ~ 255
Compression H.264 High profile, M-JPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Synchronisation Internal
Zoom Ratio x20 ~ x30
Network Properties Interface: 1 10M/100M Ethernet, RJ-45, self-adaptive
Network Protocols: ONVIF, NTP, RTP, RTSP, RTCP, HTTP, HTTPS, IPv4, TCP, UDP, DHCP, ARP, LDAP, 802.1X
Control: PTZ
Image Frame Rate: 30 fps
Inclusive DVR/ Web Server: Inclusive SD Card
Physical Specifications Dimensions mm: 292 x 218
Environmental Specifications Operating Humidity %: 0 ~ 90
Additional info
  • 2MP PTZ Domes for indoor and outdoor use
  • 20X or 30X optical zoom
  • Wide Dynamic Range
  • Auto-zoom
  • Built-in heaters
