Vanderbilt Intruder Alarms: Communicators & Communication Systems (6)

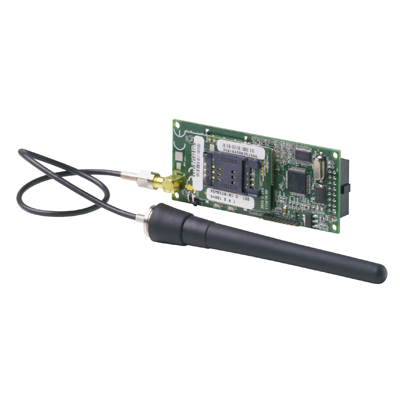

The SPCN310.000 GSM module can be assigned to any mobile network by the insertion of a standard SIM card. The modem is compatible with the complete range of SPC panels and plugs directly on the main PCB removing the need for any additional wiring. The unit comes with an external antenna that fits on the cabinet. The modem communicates with a central station (ARC) using common format protocols (SIA, Contact ID) or IP over GPRS to SPC Com alarm receiver. It also supports PPP connection to SPC Pro Software for remote programming and configuration up-/download. The SMS feature allows user / engineer to be sent a predefined text when selected events occur in the system or receiving of predefined SMS commands for security system control. The GSM modem can be used as the primary source of communication or as backup to the PSTN modem or IP communication.Add to Compare

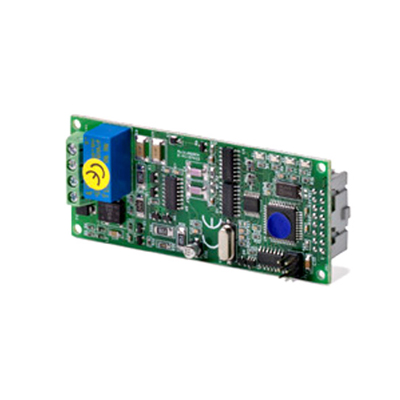

The SPCN110.000 PSTN module (up to 56K) is compatible with the complete SPC panel range and plugs directly on the main PCB removing the need for any additional wiring. The modem can take control of the line and communicates with a central station (ARC) using common format protocols (SIA, Contact ID). It also supports PPP connection to SPC Pro software for remote programming and configuration up-/download. The PSTN modem can be used as the primary source of communication or as backup to GSM modem.Add to Compare
The SPCN910.000 is an interface module which will enable the SPC control panel to support secure alarm signaling services offered within the UK. A range of 3rd party single & dual path communication devices, offered by UK market leaders in the provision of these services, can be easily connected to the module & placed within SPC G2 & G3 cabinets.Add to Compare
2G & 3G compatible GSM network scan for best signal Transmits and receives SMS messages & commands Easy to install, plugs into SPC controller board Pay as you go credit monitoring Signal strength indication Improved Audio Video transmissionAdd to Compare
Vanderbilt’s WRPTR provides an alternative, wireless communications path between the wireless devices and the SPC control panel. Vanderbilt’s WRPTR seamlessly blends style and security resulting in a class leading product. The WRPTR is slim and stylish and can be installed in seconds. This device is easy to mount, easy to pair, and easy to configure, ensuring installation time is minimized. In addition, the WRPTR uses enhanced, low current RF technology which provides superior communications and ensures long battery life.Add to Compare
