TeleEye CCTV Dome Cameras(22)
TeleEye DM590 Series is a professional 36x day / night speed dome for advanced applications such as public utilities, logistic, construction site and ATM monitoring. TeleEye DM590 Series is equipped with a reliable built-in 36x optical zoom lens that allows you to monitor a scene from any distance. Combined with a 12X digital zoom, its total zoom ratio can be boosted up to 432x for enabling powerful close-ups and capturing the subject details. The high-resolution image sensor with 550 TVL delivers every detail for close surveillance. TeleEye DM590 provides up to 8 privacy zone maskings to mask out any undesired areas on screen for further protection. TeleEye DM590 Series allows full colour surveillance during day-time down to 0.1 Lux operation. The speed dome switches to operate in B&W mode to increase its sensitivity for every low light to 0.01 Lux in the night time. TeleEye DM590 Series: DM597 (indoor) & DM599 (outdoor) Features include: 1/4" colour CCD Resolution: 480 (day) / 550 (night) TVL Day / night minimum illumination: 0.01 Lux 128 presets, 6 patrols, 3 patterns 432x zoom; optical: 36X, digital: 12X 8 privacy zone maskings IP66 weather proof standard (DM599 only) OSD menu Accessories: DM56-CL - Recessed ceiling mount fixture DM56-PD - Pendant mount bracket DM88-PL - Pole mount bracket DM88-CN - Corner mount bracket DM56-VRC - Vandal resistant cover RX-KB02 - TeleEye DM keyboard with joystickAdd to Compare

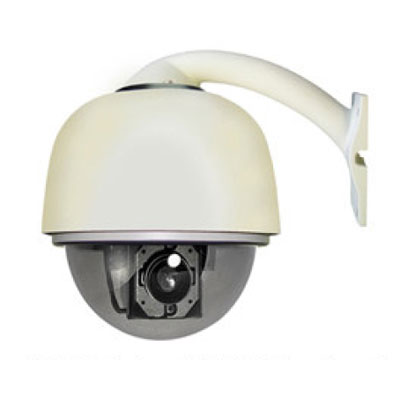

DM560 Series is a budget 33X day / night speed dome for various applications such as public utilities, logistic, construction site and ATM monitoring. TeleEye DM560 Series is equipped with a reliable built-in 33X optical zoom lens that allows you to monitor a scene from any distance. Combined with a 12X digital zoom, its total zoom ratio can be boosted up to 396X for enabling powerful close-ups and capturing the subject details. The ultra high-resolution image sensor with 680 TVL delivers every detail for close surveillance.TeleEye DM560 series allows full colour surveillance during day-time and it will switch to operate in B&W mode to increase its sensitivity for every low light to 0.03 Lux in the night time.TeleEye DM560 series:DM564 (indoor) & DM565 (outdoor)Features include:1/4" colour CCDUltra hi-resolution: 550 (day) / 680 (night) TVLDay / night minimum illumination: 0.03 Lux50 presets, 1 patrol396X zoom; Optical: 33X, Digital: 12XIP66 weather proof standard (DM565 only)Accessories:DM56-CL - Recessed ceiling mount fixtureDM56-PD - Pendant mount bracketDM88-PL - Pole mount bracketDM88-CN - Corner mount bracketDM56-VRC - Vandal resistant coverRX-KB03 - TeleEye DM keyboard with joystickAdd to Compare

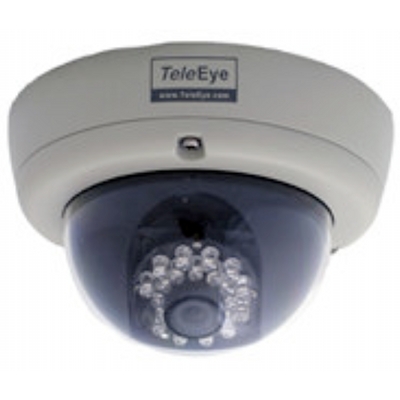

1/3 inch, Colour / Monochrome, 420 TVL resolution, 0.0 lux, Fixed Focus, Indoor/Outdoor, 12 V DC, 3.6, Auto Gain Control, White Balance, 1/60 ~ 1/100,000, 48, PAL, NTSC, Built-in IR LED, 1.0 Vp-p, 75 Ohms, 120 mA, 570, -20 ~ +50, 0 ~ 90, IP66Add to Compare
1/3 inch, Colour / Monochrome, 540 TVL resolution, 0.0 lux, Variable Focus, Outdoor, 12 V DC, 2.9 ~ 10, Back Light Compensation, Auto Gain Control, White Balance, 1/50 (1/60) ~ 1/100,000, 50, 1.0 Vp-p, 75 Ohms, 200 mA, 950, -10 ~ +50, 0 ~ 90, IP66Add to Compare
1/3 inch, Colour, 540 TVL resolution, 0.15 lux, Variable Focus, Outdoor, 12 V DC, 3 ~ 9, Back Light Compensation, Auto Gain Control, White Balance, 1/50 (1/60) ~ 1/100,000, 48, 1.0 Vp-p, 75 Ohms, 200 mA, 110 x 70, 580, -10 ~ +50, 0 ~ 90, IP66Add to Compare
1/3 inch, Colour, 480 TVL resolution, 0.5 lux, Fixed Focus, Indoor, 12 V DC, 3.6, Back Light Compensation, Auto Gain Control, White Balance, 1/50 (1/60) ~ 1/100,000, > 48, PAL, NTSC, 1.0 Vp-p, 75 Ohms, 200 mA, 110 x 70, 230, -20 ~ +50, 0 ~ 90Add to Compare
1/3 inch, Colour / Monochrome, 520 TVL resolution, 0.0 lux, Fixed Focus, Indoor/Outdoor, 12 V DC, 3.6, Back Light Compensation, Auto Gain Control, White Balance, 1/50 (1/60) ~ 1/100,000, > 45, PAL, NTSC, 1.0 Vp-p, 75 Ohms, 160 mA, 100 (Dia) x 78, 250, -10 ~ +50, 0 ~ 90Add to Compare
1/4 inch, Colour / Monochrome, 570 TVL resolution, 0.08 lux, Continuous Rotation, 240 o/ sec pan speed, Outdoor, 60 o/ sec tilt speed, 24 V AC, 360 pan, 90 tilt, 50, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, > 50, PAL/NTSC, 1.0 Vp-p, 75 Ohms, x30 optical, x8 digital, 20 W, 4,200, -22 ~ +60, 0 ~ 90, IP66Add to Compare

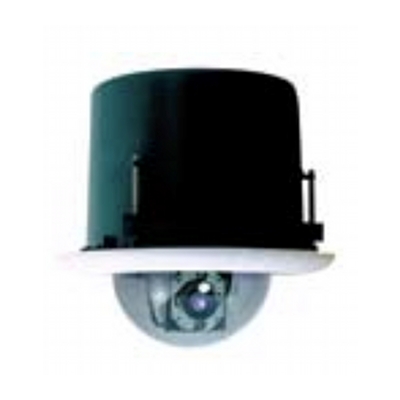

1/4 inch, Colour / Monochrome, 570 TVL resolution, Continuous Rotation, 0.08 lux, 240 o/ sec pan speed, Indoor, 60 o/ sec tilt speed, 24 V AC, 3.3 ~ 99, 360 pan, 90 tilt, 50, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, 50, PAL/NTSC, 1 Vp-p, 75 Ohms, x30 optical, x8 digital, 20 W, 3,500, 0 ~ 50, 0 ~ 90Add to Compare
1/4 inch, Colour / Monochrome, 550 TVL resolution, 0.01 lux, Continuous Rotation, 360 o/ sec pan speed, Outdoor, 360 o/ sec tilt speed, 24 V AC, 3.4 ~ 122.4, 360 pan, 90 tilt, Back Light Compensation, Auto Gain Control, White Balance, 1/4 ~ 1/10,000, > 50, PAL/NTSC, 1 Vp-p, 75 Ohms, x36 optical, x12 digital, 50 W, 5,000, 0 ~ 50, 0 ~ 95Add to Compare
1/4 inch, Colour / Monochrome, 550 TVL resolution, 0.01 lux, Continuous Rotation, 360 o/ sec pan speed, Indoor, 360 o/ sec tilt speed, 24 V AC, 3.4 ~ 122.4, 360 pan, 90 tilt, Back Light Compensation, Auto Gain Control, White Balance, 1/1 ~ 1/10,000, 50, PAL/NTSC, 1 Vp-p, 75 Ohms, x36 optical, x12 digital, 50 W, 5,000, 0 ~ 50, 0 ~ 95Add to Compare
1/3 inch, Colour, 520 TVL resolution, 0.01 lux, Variable Focus, 9 ~ 93 o/ sec pan speed, Outdoor, 9 ~ 66 o/ sec tilt speed, 12 V DC, 4 ~ 9, 64, White Balance, 1/50 (1/60), PAL, NTSC, x3, RS-485, 600 mA, 1,250, -10 ~ +50Add to Compare
1/3 inch, Colour, 470 TVL resolution, 1.0 lux, Variable Focus, 9 ~ 93 o/ sec pan speed, Indoor, 9 ~ 66 o/ sec tilt speed, 12 V DC, 4 ~ 9, 0 ~ 355 Pan, 5 ~ 90 Tilt, 64, White Balance, 1/50 (1/60) ~ 1/100,000, > 45, PAL / NTSC, x3, RS-485, 500 mA, 600, -10 ~ +50, 0 ~ 80Add to Compare
TeleEye complete end-to end HD CCTV solution consists of MX Series HD CCTV cameras, HD sureREC Recording and sureSIGHT HD Video Management Solution.World's first multi-stream coder for HD videoMX Series HD CCTV camera incorporates with HD SMAC-M video coder, which is the world's first multi-stream coder for HD video. It allows simultaneous HD video recording and fast video transmission via LAN, ADSL or mobile networks.Wider view and greater detailMX Series HD CCTV camera records HD video with a 16:9 wide screen aspect ratio. The wide screen format provides 33% more viewing area than analogue cameras. The wider view can greatly reduce blind spots in the surveillance system.With a resolution over 800 TVL, it provides ultra-high resolution video quality and more detail for identification. By employing progressive scanning, TeleEye MX Series HD CCTV is also able to create images with least distortion and jaggedness. Mobile and portable video surveillanceMX Series HD CCTV camera can use with TeleEye M-303 Mobile Monitoring Solution to deliver live video through mobile data network or WiFi. Users may view live video and receive event alerts on their mobile phones while they are on the move.Features1/3.2" CMOS sensor, 2 megapixelHD SMAC-M multi-stream coder for HD videoResolution: 1600 x 900 p; 1280 x 720 pProgressive Scan, 16:9 aspect ratioIndependent mobile stream for mobile phone viewingOptional sureREC HD video recording solutionOptional sureSIGHT integrated video management solutionAdd to Compare
