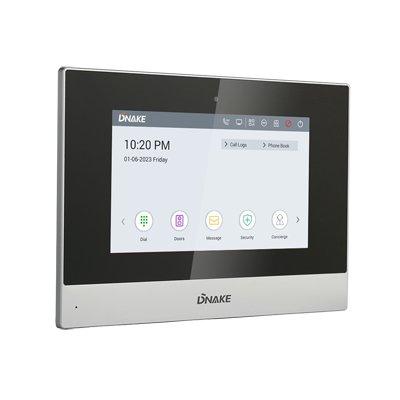

DNAKE 290M-S8 7-inch Indoor Monitor (2-wire Version)

Technical Specification

Features:

Make: DNAKE
Model code: 290M-S8
Type of Kit/ System: Video & Audio
Panel Material: Plastic
Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F)

Additional info:

Easy configuration 7-inch capacitive touch screen Powered and communicated by 2-wire Support SIP 2.0 protocol, easy integration with other SIP devices Easy integration with elevator control system Support monitoring 8 IP cameras

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Access Control>Audio, video or keypad entry
Model code	290M-S8
Type of Kit/ System	Video & Audio
Panel Material	Plastic
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Electrical Specifications	Power Consumption: Standby Power: 1.5 W / Rated Power: 9 W
Physical Specifications	Dimensions mm: 221.4 x 151.4 x 16.5
Additional info	Easy configuration 7-inch capacitive touch screen Powered and communicated by 2-wire Support SIP 2.0 protocol, easy integration with other SIP devices Easy integration with elevator control system Support monitoring 8 IP cameras
