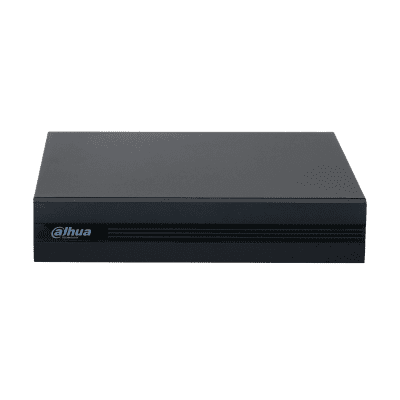

Dahua WizSense DVR

Product Profile

Dahua Technology debuted its new XVR series, Cooper Series featuring SMD Plus to benefit customers from AI upgrade. The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

Read more

Technical Specification

Make Dahua Technology
Manufacturer Dahua Technology Ltd
Category CCTV>Digital video recorders (DVRs)
Model code XVR1B04-I
Series WizSense Series
Channels 4 channels
Hybrid IP inputs 5
Storage Capacity GB 6000 GB storage
Compression Type AI Coding/H.265+/H.265/H.264+/H.264
Resolution 1080N; 720p; 960H; D1; CIF resolution
Signal Mode PAL / NTSC
External Storage USB
Audio Recording and Properties G.711A; G.711U; PCM
Recording System HDD
Physical Specifications Dimensions mm: 198 x 203 x 42
Weight kg: 0.57
Electrical Specifications Voltage: 12 V DC
Power Consumption: < 7 W
Environmental Specifications Operating Temp oC: -10 ~ +45 C (14 ~ 113 F)
Operating Humidity %: 0 ~ 90
Additional info
  • H.265+/H.265 dual-stream video compression
  • Supports Full channel AI-Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 5 channels IP camera inputs, each channel up to 2MP; Max 20 Mbps incoming bandwidth
  • Up to 4 channels video stream ( analog channel ) SMD Plus
Download PDF version Download PDF version
