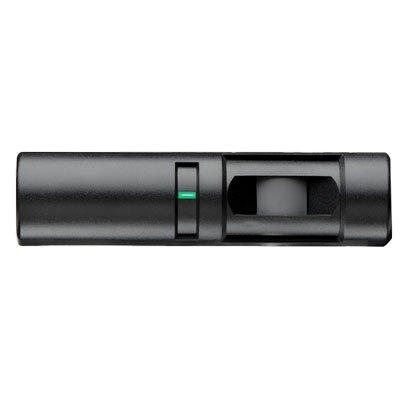

Bosch DS151i black request-to-exit sensor

Technical Specification

Features:

Make: Bosch
Model code: DS151i
PIR Detectors: Yes
Coverage/ Range m: 2.4 x 3 m coverage
Power Consumption: 26 mA

Additional info:

Detects motion in their coverage area and signal an access control system or door control device Designed for Request-to-exit (REX) applications Single or double door use Wall or ceiling mountable Internal vertical pointability Wrap-around coverage pattern Selectable relay trigger mode

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Bosch
Manufacturer	Bosch Security Systems
Model code	DS151i
PIR Detectors	Yes
Coverage/ Range m	2.4 x 3 m coverage
Power Consumption	26 mA
Mount Type	Surface
Wall/Ceiling Mount	Wall/Ceiling Mount
Electrical Specifications	Power Supply: 12 ~ 24 V AC / 12 ~ 24 V DC
Physical Specifications	Dimensions mm: 38 x 159 x 38
Environmental Specifications	Operating Temp ^oC: -29 ~ 49 C (-20.2 ~ 120.2 F)
Additional info	Detects motion in their coverage area and signal an access control system or door control device Designed for Request-to-exit (REX) applications Single or double door use Wall or ceiling mountable Internal vertical pointability Wrap-around coverage pattern Selectable relay trigger mode
