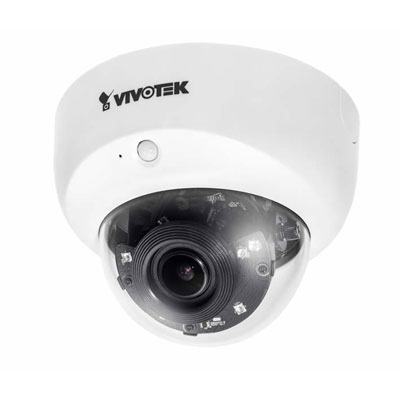

Vivotek FD8138-H 1MP colour monochrome fixed IP dome camera

Technical Specification

Features:
  • Make: VIVOTEK
  • Model code: FD8138-H
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 1 MP
Read more
Additional info:

Vivotek FD8138-H is a 1MP colour monochrome fixed IP dome camera designed for diverse indoor applications. It is also capable of capturing high quality footage at 720P resolution, even in high-contrast lighting environments. It provides remarkably high image quality and also equipped with VIVOTEK Smart Stream, and 3DNR to save substantial bandwidth for our users.

Read more
Make VIVOTEK
Manufacturer VIVOTEK
Model code FD8138-H
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 1 MP
Megapixel Yes
Dome Type Static
Sensitivity lux 0.001
Digital (DSP) Yes
Indoor/Outdoor Indoor
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 9.96 W
Focal length 2.8 ~ 12mm
Compression H.264, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/5 ~ 1/32,000s
S/ N (Signal/ Noise) Ratio dB >61
Built-in IR LED Yes
Zoom Ratio x48
Network Properties Interface: 10Base-T/100 BaseTX Ethernet (RJ-45)
Network Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Image Frame Rate: 30fps
Inclusive DVR/ Web Server: MicroSD/SDHC/SDXC card slot
Physical Specifications Dimensions mm: 135 x 102
Weight g: 512
Environmental Specifications Operating Temp oC: -20 ~ +50 C (14 ~ 122)
System Requirments Operating System: Microsoft Windows 8/7/Vista/XP/2000
Web Browser: Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x, 9.x, 10.x
Additional info Vivotek FD8138-H is a 1MP colour monochrome fixed IP dome camera designed for diverse indoor applications. It is also capable of capturing high quality footage at 720P resolution, even in high-contrast lighting environments. It provides remarkably high image quality and also equipped with VIVOTEK Smart Stream, and 3DNR to save substantial bandwidth for our users.
