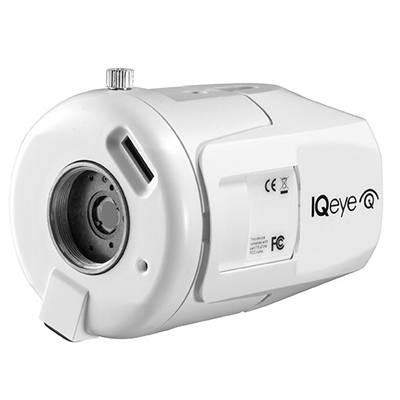

Vicon IQB95NI-A6 TDN HD 5MP IP camera

Technical Specification

Features:

Make: Vicon
Model code: IQB95NI-A6
Series: IQeye 9 series
Resolution: 5 MP resolution
Digital (DSP): Yes

Additional info:

IQB95NI-A6 is an IP camera featuring true day/night movable IR filter, analog video out, alarm I/O, real-time clock, andinternal microphone plus two-way audio capability.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>IP cameras
Model code	IQB95NI-A6
Series	IQeye 9 series
Resolution	5 MP resolution
Digital (DSP)	Yes
Sensitivity Lux	0.05
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: 4 W
Motion Activated	Yes
Focal Length mm	2.8 ~ 8.5
Wide Dynamic Range	Yes
Picture Elements HxV	2560 x 1920
Network Properties	Image Frame Rate: 15 fps Interface: 10Base-T, 100Base-TX, RJ-45 Network Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, UDP multicast, APIPA, CIFS, SNMP, SMTP, Telnet
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Compression Type	H.264, M-JPEG
Physical Specifications	Weight g: 165 Dimensions mm: 129 x 69 x 70
Environmental Specifications	Operating Temperature ^oC: 0 ~ 45 C (32 ~ 113 F)
System Requirements	Web Browser: Internet Explorer, Safari, Firefox, Google Chrome
HD	Yes
Additional info	IQB95NI-A6 is an IP camera featuring true day/night movable IR filter, analog video out, alarm I/O, real-time clock, and internal microphone plus two-way audio capability.
