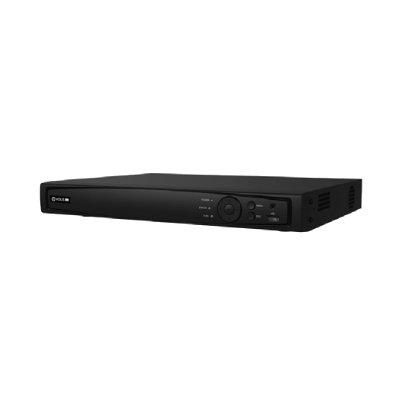

Tyco HRN-08022S HOLIS Lite H.265+/H.265 Embedded NVR, 8-ch, Gig Ethernet, 2 HDD Bays
Technical Specification
- Make: Tyco Security Products
- Model code: HRN-08022S
- Video inputs: 8
- Hardware solution: Yes
- Inbuilt multiplexer: Yes
H.265+/ H.265/H.264/H.264+ video formats Connectable to the third-party network cameras Up to 16 IP cameras can be connected Recording at up to 8 MP resolution Supports live view, storage, and playback of the connected camera at up to 8 MP resolution HDMI and VGA independent outputs HDMI Video output at up to 4K (3840 × 2160) resolution
Read more| Make | Tyco Security Products |
|---|---|
| Manufacturer | Tyco Security Products |
| Category | CCTV>Network video recorders (NVRs) |
| Model code | HRN-08022S |
| Video inputs | 8 |
| Hardware solution | Yes |
| Inbuilt multiplexer | Yes |
| Recording system | HDD |
| Storage capacity | Up to 6TB capacity for each disk |
| Secondary storage | USB |
| Resolution | Up to 8 MP |
| Electrical Specifications |
Voltage: 12 V DC Power consumption (W): ≤ 40W |
| Physical Specifications |
Weight (kg): ≤ 1.8 kg Dimensions (mm): 385 × 315 × 52 |
| Environmental Specifications |
Operating temperature (°C): -10 ~ +55 C (14 ~ 131 F) Operating humidity (%): 10 ~ 90 |
Product description
Tyco Security Products: HRN-08022S Network Video Recorder
The Tyco HRN-08022S Network Video Recorder (NVR) offers industry-leading performance for security professionals. This 8-channel NVR supports an impressive range of video formats, including H.265+, ensuring efficient bandwidth and storage utilisation while maintaining high-quality video and audio.
Key Features
- Compatible with third-party network cameras, enhancing system flexibility.
- Supports up to 8 connected IP cameras with live view, storage, and playback at resolutions up to 8 MP.
- Features HDMI and VGA independent outputs with HDMI outputs supporting up to 4K resolution.
- Equipped with 2 SATA interfaces, each supporting up to 6TB, facilitating extensive data storage and backup options.
- Central Management Application enables comprehensive control over IP cameras, with capabilities for information import/export and real-time display.
Interface and Connectivity
- Includes a self-adaptive 10/100/1000 Mbps network interface for robust connectivity.
- Features 2 USB 2.0 ports for additional peripheral access.
Ideal Use Cases
The HRN-08022S is ideally deployed in environments requiring high-resolution video surveillance, such as corporate offices, retail spaces, and public facilities. Its ability to integrate with third-party cameras and scalable storage capacity makes it perfectly suited for complex security ecosystems.
