Technical Specification

Features:

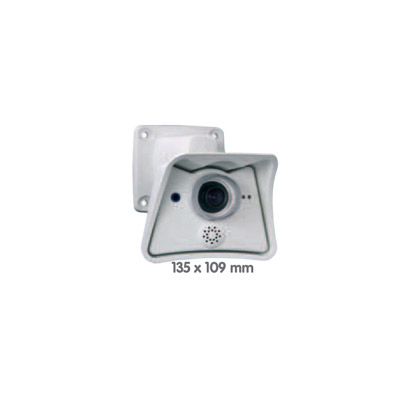

  • Make: MOBOTIX
  • Model code: MX-M22M-Sec-Night-N22
  • Colour Type: Monochrome
  • Resolution: 1280 x 960
  • Digital (DSP): Yes
Read more
Additional info:

In / outdoor weatherproof camera.  Continuous 8x zoom & pan/tilt (digital).  30 fps VGA, CIF; 10 fps Mega.  FTP, email, video alarm management, video motion, Multiview, event search.  365 day schedule; multiple events.

Read more
Make MOBOTIX
Manufacturer MOBOTIX AG
Model code MX-M22M-Sec-Night-N22
Colour Type Monochrome
Resolution 1280 x 960
Digital (DSP) Yes
Specialist Type Network
Sensitivity Lux 0.005
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 6 ~ 12 V DC
Power Consumption: 3 W
Motion Activated Yes
High Speed Yes
Mount Type Wall, Ceiling
Wide Dynamic Range Yes
Network Properties Image Frame Rate: 30 fps
Inclusion DVR/ Web Server: DVR
Interface: Ethernet 10/100 Mbps
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Signal Mode PAL/NTSC
Zoom Yes
Compression Type JPEG, MPEG-4
Physical Specifications Weight g: 600
Dimensions mm: 135 x 200 x 130
Environmental Specifications Protection: IP65
Operating Temperature oC: -30 ~ +60
System Requirements Operating System: Windows, Linux, Mac OS
Additional info

In / outdoor weatherproof camera.  Continuous 8x zoom & pan/tilt (digital).  30 fps VGA, CIF; 10 fps Mega.  FTP, email, video alarm management, video motion, Multiview, event search.  365 day schedule; multiple events.

Download PDF version
