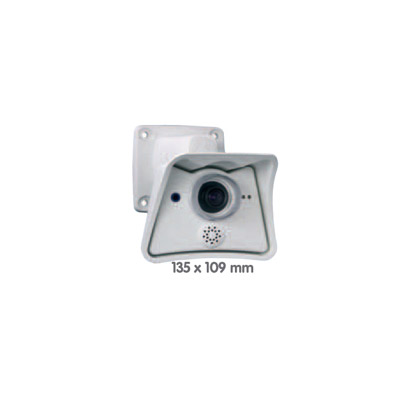

MOBOTIX MX-M22M-IT-D22 IP camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: MOBOTIX
Model code: MX-M22M-IT-D22
Colour Type: Colour
Resolution: 640 x 480 resolution
Digital (DSP): Yes

Additional info:

In / outdoor camera. Super wide-lens. Continuous 8x zoom & pan/tilt (digital). FTP, email, video alarm management, video motion, Multiview, event search 365 day schedule. Multiple events. 30 fps VGA; 30 fps CIF.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	MOBOTIX
Manufacturer	MOBOTIX AG
Category	CCTV>IP cameras
Model code	MX-M22M-IT-D22
Colour Type	Colour
Resolution	640 x 480 resolution
Digital (DSP)	Yes
Specialist Type	Network
Sensitivity Lux	0.05
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 6 ~ 12 V DC Power Consumption: 3 W
Motion Activated	Yes
High Speed	Yes
Mount Type	Wall, Ceiling
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 30 fps Inclusion DVR/ Web Server: Yes Interface: Ethernet 10/100 Mbps
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Signal Mode	PAL/NTSC
Zoom	Yes
Compression Type	JPEG, MPEG-4
Physical Specifications	Weight g: 600 Dimensions mm: 135 x 200 x 130
Environmental Specifications	Protection: Weather Resistant Operating Temperature ^oC: -30 ~ +60
System Requirements	Operating System: Windows, Linux, Mac OS Web Browser: HTML/JavaScript-M-JPEG
Additional info	In / outdoor camera. Super wide-lens. Continuous 8x zoom & pan/tilt (digital). FTP, email, video alarm management, video motion, Multiview, event search 365 day schedule. Multiple events. 30 fps VGA; 30 fps CIF.
Download PDF version Download PDF version
