Hikvision DS-D5024F2-AV2(US) CCTV monitor Specifications

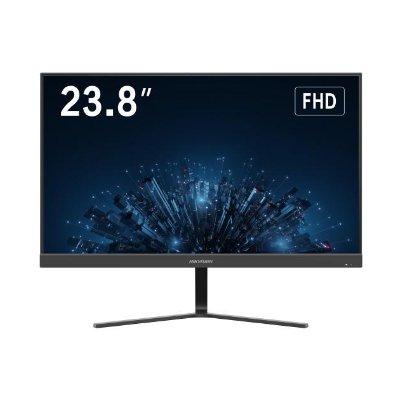

Hikvision DS-D5024F2-AV2(US) 23.8 inch FHD 100Hz VA Monitor

Technical Specification

Features:

Make: Hikvision
Model code: DS-D5024F2-AV2(US)
Monitor Type: LED
Effective Screen Size Inches: 23.8 inch
Colour Type: Colour

Additional info:

100 Hz refresh rate, more fluid and life-like video. VA technology for wide, 178° ultra-wide view screen. Ultra-thin device body with ultra-thin border for 3 sides. 8 bit LVDS FHD (1920 × 1080) display. 3D noise reduction. Low blue light design for eye care. Dual interface of HDMI and VGA. Support VESA wall mount.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision
Category	CCTV>CCTV monitors
Model code	DS-D5024F2-AV2(US)
Monitor Type	LED
Effective Screen Size Inches	23.8 inch
Colour Type	Colour
Resolution	1920 × 1080
Housing Material	Plastic
Dimensions mm	With base: 539.7 x 427.33 x 185.69
Monitor Mount Type	VESA wall
Environmental Specifications	Operating Temperature ^oC: 0 ~ 40 C (32 ~ 104 F) Operating Humidity %: 20 ~ 90
Weight kg	2.85 ± 0.5 kg
Electrical Specifications	Power Consumption: ≤ 24 W Voltage: 12 V DC
Download PDF version Download PDF version

Make

Hikvision

Manufacturer

Hikvision

Hikvision DS-D5024F2-AV2: 23.8 Inch FHD VA Monitor

Experience exceptional visual quality with Hikvision's DS-D5024F2-AV2, a 23.8 inch Full HD VA monitor designed to meet the demanding needs of today's security professionals. With a remarkable 100Hz refresh rate, this monitor offers fluid and life-like video playback, ensuring no detail is missed during surveillance tasks.

Key Features

Vibrant Display: Enjoy superior video quality on the 1920 × 1080 resolution screen with an 8-bit colour depth and a rich 16.7 million colour palette.
Wide Viewing Angle: The VA technology allows a 178° ultra-wide viewing angle, enabling clear visuals from various vantage points.
Eye Care: The low blue light design promotes eye health, reducing strain during extended monitoring sessions.
Sleek Design: Its ultra-thin body and minimalistic 3-sided border maximise screen space, delivering an aesthetically pleasing appearance.
Compatibility and Convenience: Equipped with HDMI and VGA ports, and support for VESA mounting, ensuring seamless integration within your security setup.

Ideal Use Cases

Designed for professional applications, the DS-D5024F2-AV2 excels in diverse environments such as control rooms, retail surveillance stations, and corporate security offices. Its ability to display crisp and clear images makes it an essential component for effective monitoring solutions.

Backed by a robust build and energy-efficient design, this monitor operates efficiently with a power consumption of ≤ 24 W and offers a standby mode power usage of ≤ 0.5 W, ensuring cost-effective performance.
