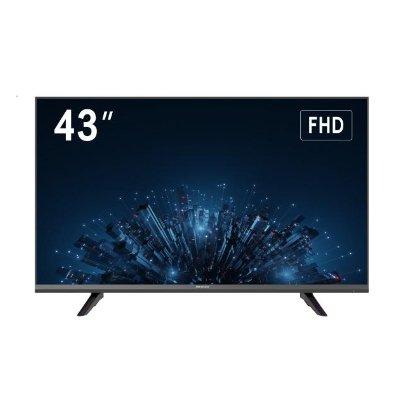

Hikvision DS-D5043FC 43-inch LED monitor

Technical Specification

Features:
  • Make: Hikvision
  • Model code: DS-D5043FC
  • Monitor Type: LED
  • Effective Screen Size Inches: 43 inch
  • Colour Type: Colour
Read more
Additional info:

Support 8bit/10bit 2-ch LVDS(1920×1080) HD display Adopt 3-D digital comb filter Support audio output True color OSD and user-friendly operation menu 1 channel HDMI 1.3 input interface, support HDCP 1.2 Adopt 3D noise reduction technology Support high definition JPEG decoding Programmable 12-bit RGB gamma correction technology Support software spread-spectrum technology to reduce EMI radiation Adopt Mstar ACE-5 auto color and image enhancement engine, improve image contrast, detail and edge

Read more
Make Hikvision
Manufacturer Hikvision
Model code DS-D5043FC
Monitor Type LED
Effective Screen Size Inches 43 inch
Colour Type Colour
Resolution TVL 1920 x 1080
Dimensions mm 968 x 565 x 79
Weight kg 9.1
Scanning Frequency Hz 50 ~ 60 Hz
Environmental Specifications Operating Temperature oC: -20 ~ +55 C (-4 ~ +131 F)
Operating Humidity %: 10 ~ 85
Video Input Connectors HDMI, VGA, DVI, PC audio-in
Electrical Specifications Power Consumption: < 65 W
Voltage: 100 ~ 240 V AC
Video Input BNC
Additional info
  • Support 8bit/10bit 2-ch LVDS(1920×1080) HD display
  • Adopt 3-D digital comb filter
  • Support audio output
  • True color OSD and user-friendly operation menu
  • 1 channel HDMI 1.3 input interface, support HDCP 1.2
  • Adopt 3D noise reduction technology
  • Support high definition JPEG decoding
  • Programmable 12-bit RGB gamma correction technology
  • Support software spread-spectrum technology to reduce EMI radiation
  • Adopt Mstar ACE-5 auto color and image enhancement engine, improve image contrast, detail and edge
